Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body side rear upper garnish molding to the vehicle.
    Fig 1: Installing Body Side Rear Upper Garnish Molding
    G01737365Courtesy of GENERAL MOTORS CORP.
  2. Press on the body side rear upper garnish molding in order to engage the retaining clips.

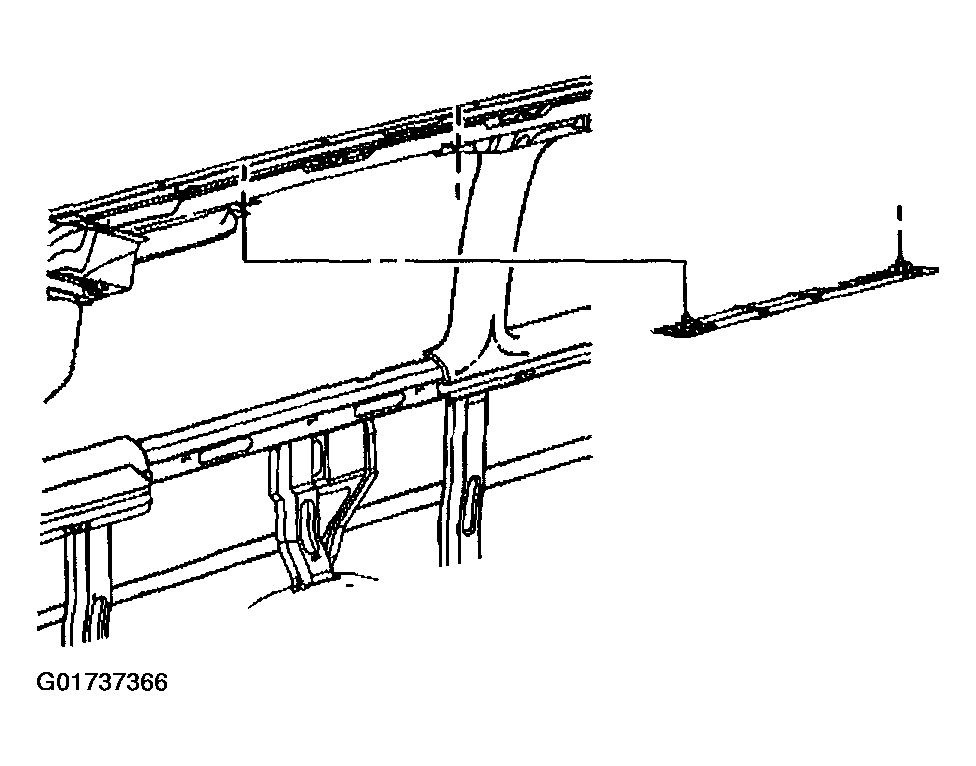

    Fig 2: Pressing Molding To Engage Retaining Clips
    G01737366Courtesy of GENERAL MOTORS CORP.
