Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
  2. Grasp and gently pull the front door opening upper frame garnish molding in order to release the retaining clips.
  3. Remove the front door opening upper frame garnish molding from the vehicle.
  4. Inspect the front door opening upper frame garnish molding for broken or missing retaining clips. Replace the clips as needed.

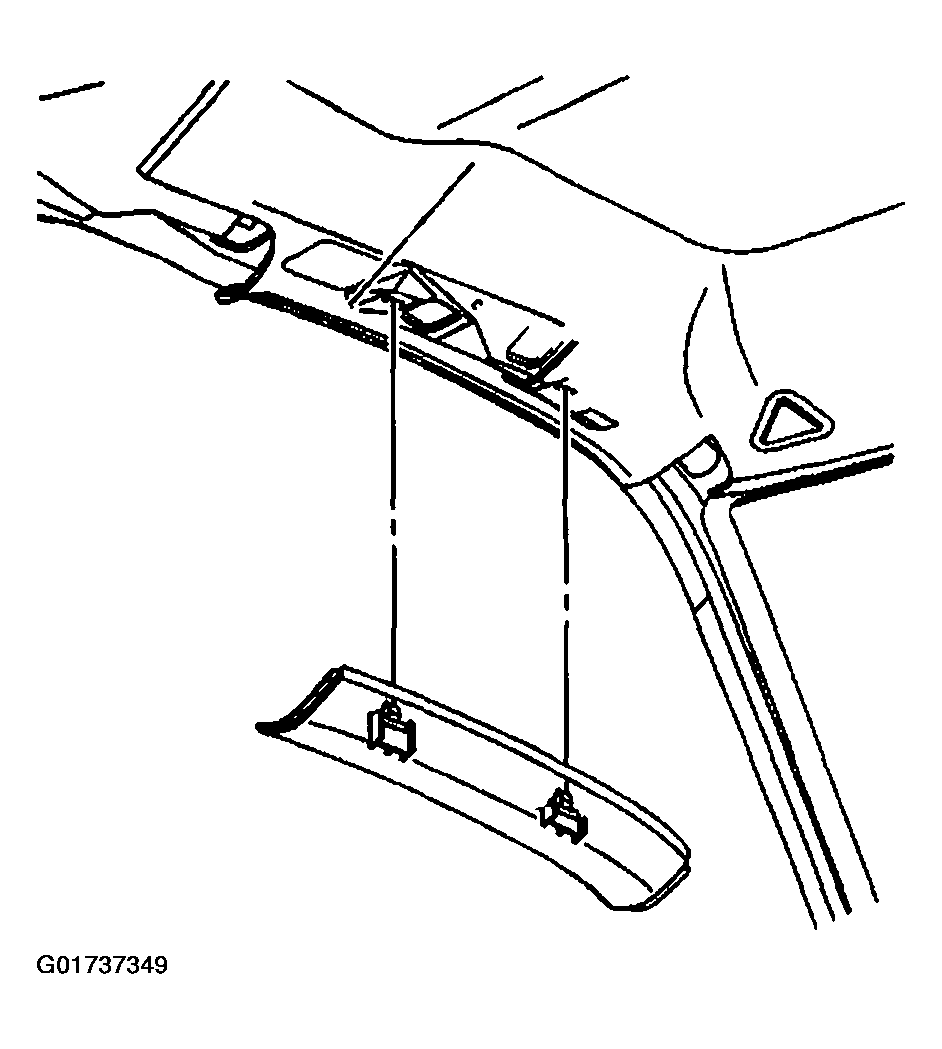

    Fig 1: Removing Garnish Molding Components (Front Door Opening Upper Frame)
    G01737349Courtesy of GENERAL MOTORS CORP.
