Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front door opening upper frame garnish molding to the vehicle.
  2. Press on the front door opening upper frame garnish molding in order to engage the retaining clips.
  3. Install the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .

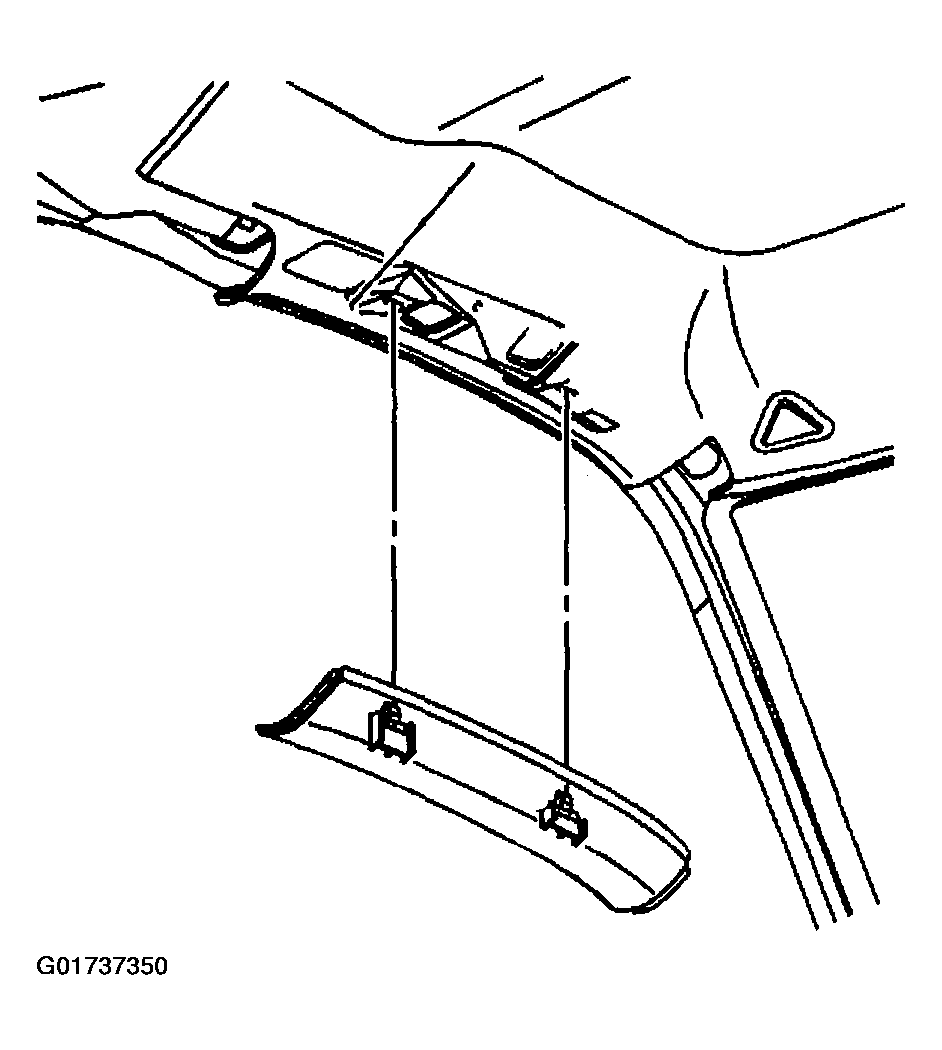

    Fig 1: Installing Garnish Molding Components (Front Door Opening Upper Frame)
    G01737350Courtesy of GENERAL MOTORS CORP.
