Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install the vehicle speed sensor (VSS) buffer module (1) to the vehicle.
Connect the electrical connector (2) the VSS buffer module (1).
Position the VSS buffer module (1) to the instrument panel carrier.
Install the VSS buffer module fasteners (3) that retain the VSS buffer module (1) to the instrument panel carrier.

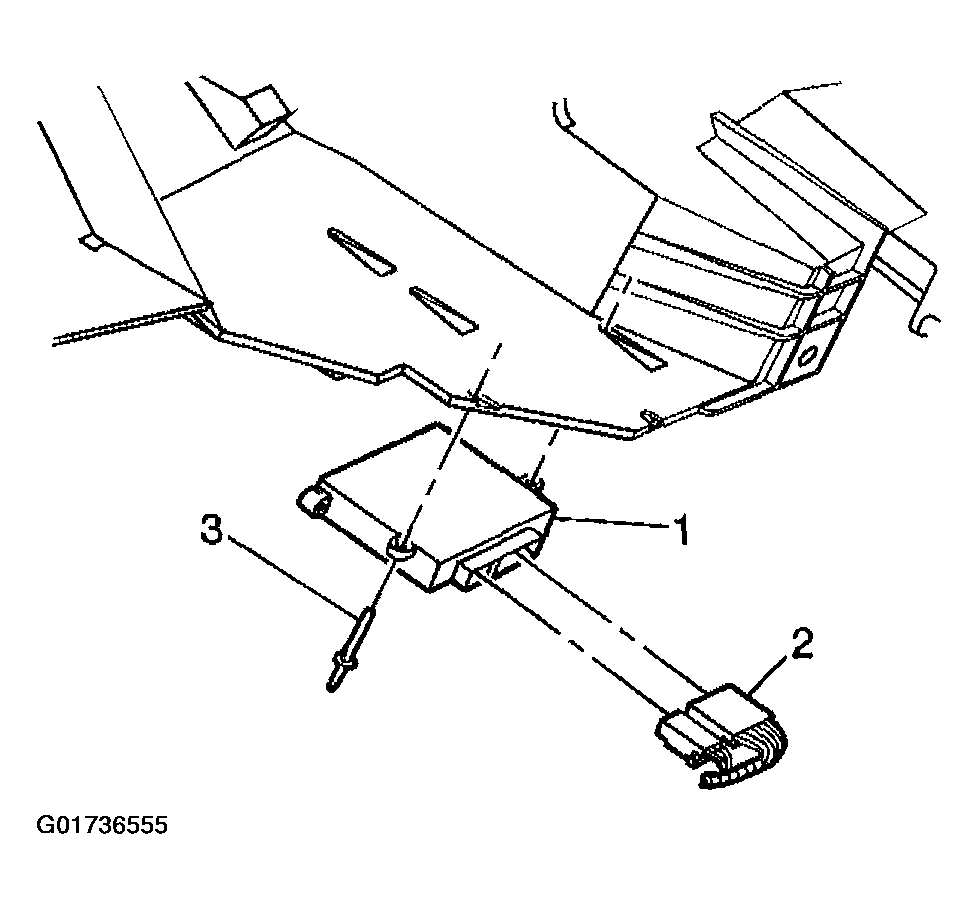

Fig 1: Installing Vehicle Speed Sensor (VSS) Components
Courtesy of GENERAL MOTORS CORP.
