Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

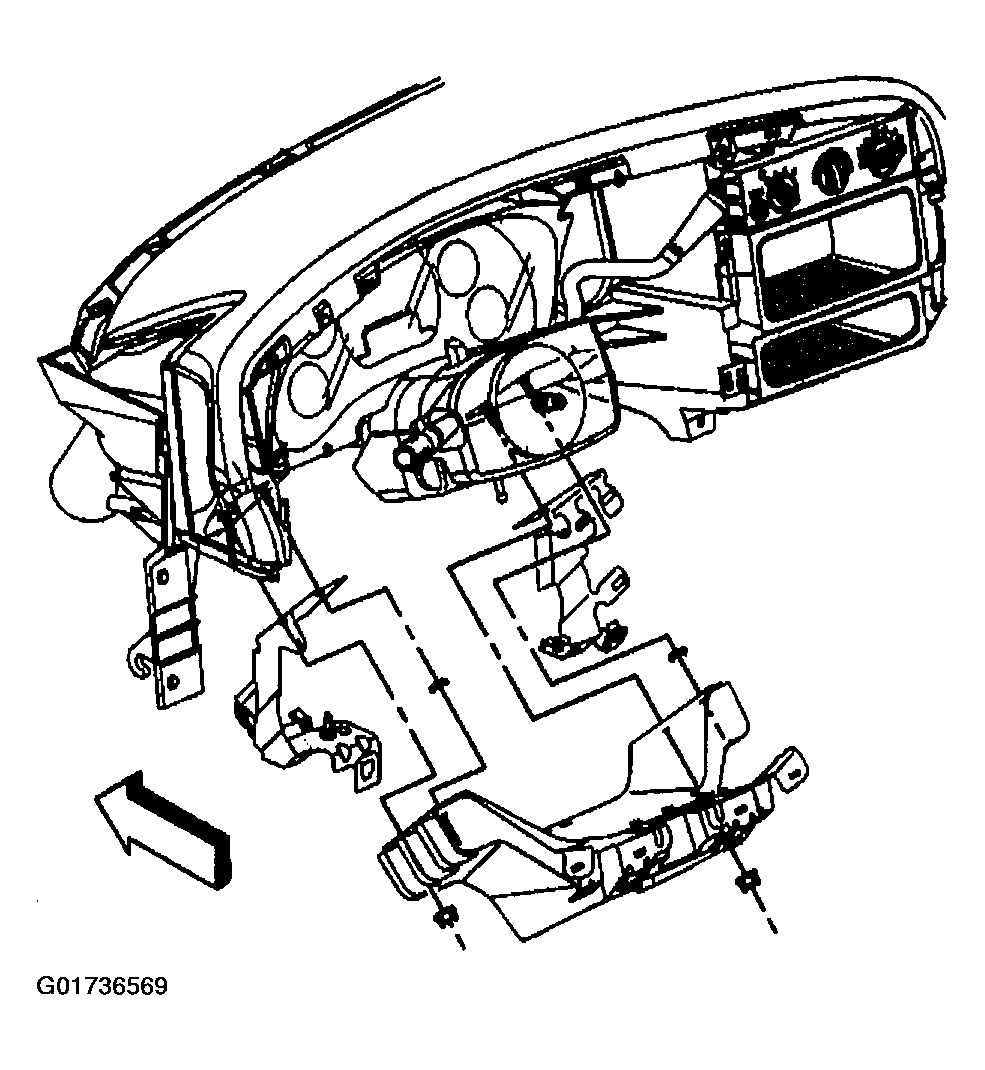

- Position the instrument panel driver knee bolster deflector assembly and the driver knee bolster inner and outer brackets to the vehicle.CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the nuts that retain the instrument panel driver knee bolster deflector assembly and the driver knee bolster inner and outer brackets to the instrument panel carrier.
Tighten
Tighten the nuts to 10 N.m (89 in lbs).
- Install the relay center bracket to the knee bolster brackets.
- Install the screws that retain the relay center bracket to the instrument panel driver knee bolster inner and outer brackets.
Tighten
Tighten the screws to 2 N.m (18 in lbs).
- Install the instrument panel driver knee bolster panel. Refer to Trim Panel Replacement - Knee Bolster .
