Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the instrument cluster (1) to the vehicle.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the screws (2) that retain the instrument cluster to the instrument panel carrier.

    Tighten

    Tighten the screws to 2 N.m (18 in lbs).

  3. Install the instrument panel cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
  4. Tilt the steering column to the up position, if equipped with tilt steering.
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

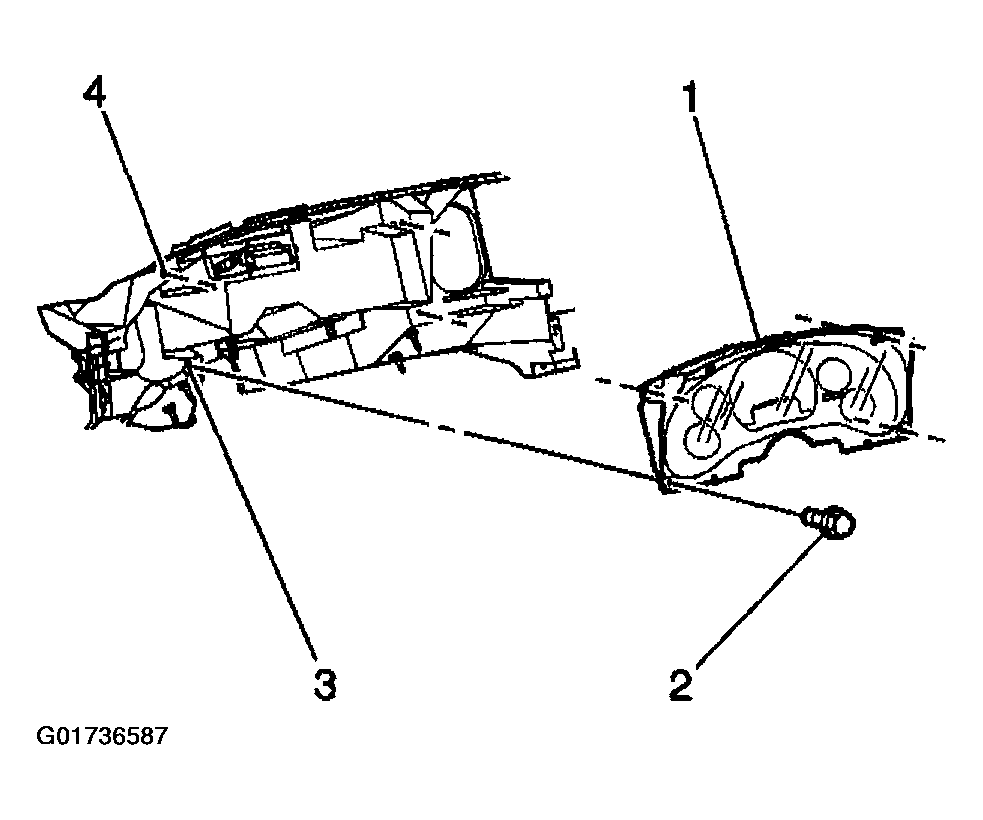

    Fig 1: Installing Instrument Panel Cluster
    G01736587Courtesy of GENERAL MOTORS CORP.
