Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel lower extension upper trim panel by pulling out in order to disengage the retainers.
  2. Remove the instrument panel lower extension upper trim panel from the vehicle.
  3. Inspect the instrument panel lower extension upper trim panel for broken or missing retainers.

    Replace the retainers as needed.

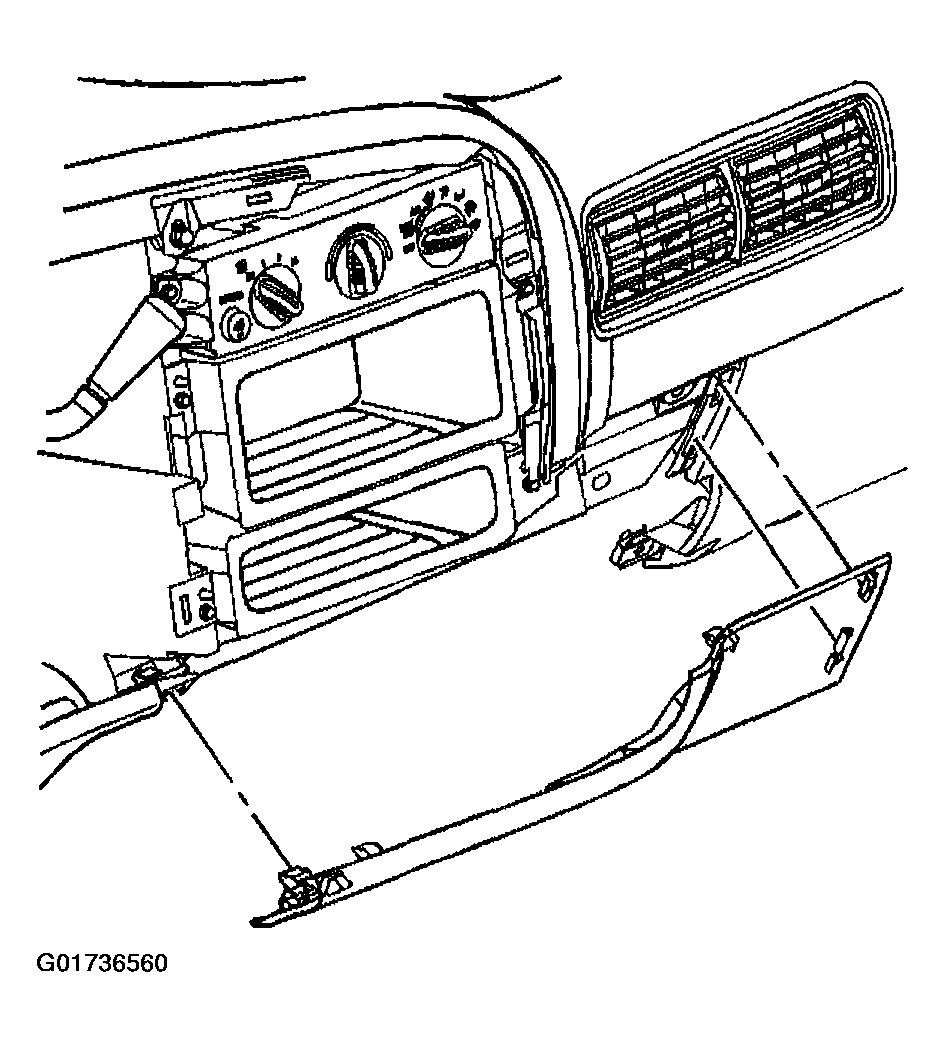

Fig 1: Removing Instrument Panel Upper Trim
G01736560Courtesy of GENERAL MOTORS CORP.
