Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the instrument panel lower extension upper trim panel to the vehicle.
  2. Align the tabs on the instrument panel lower extension upper trim panel with the slots in the instrument panel.
  3. Press on the instrument panel lower extension upper trim panel in order to engage the retainers.

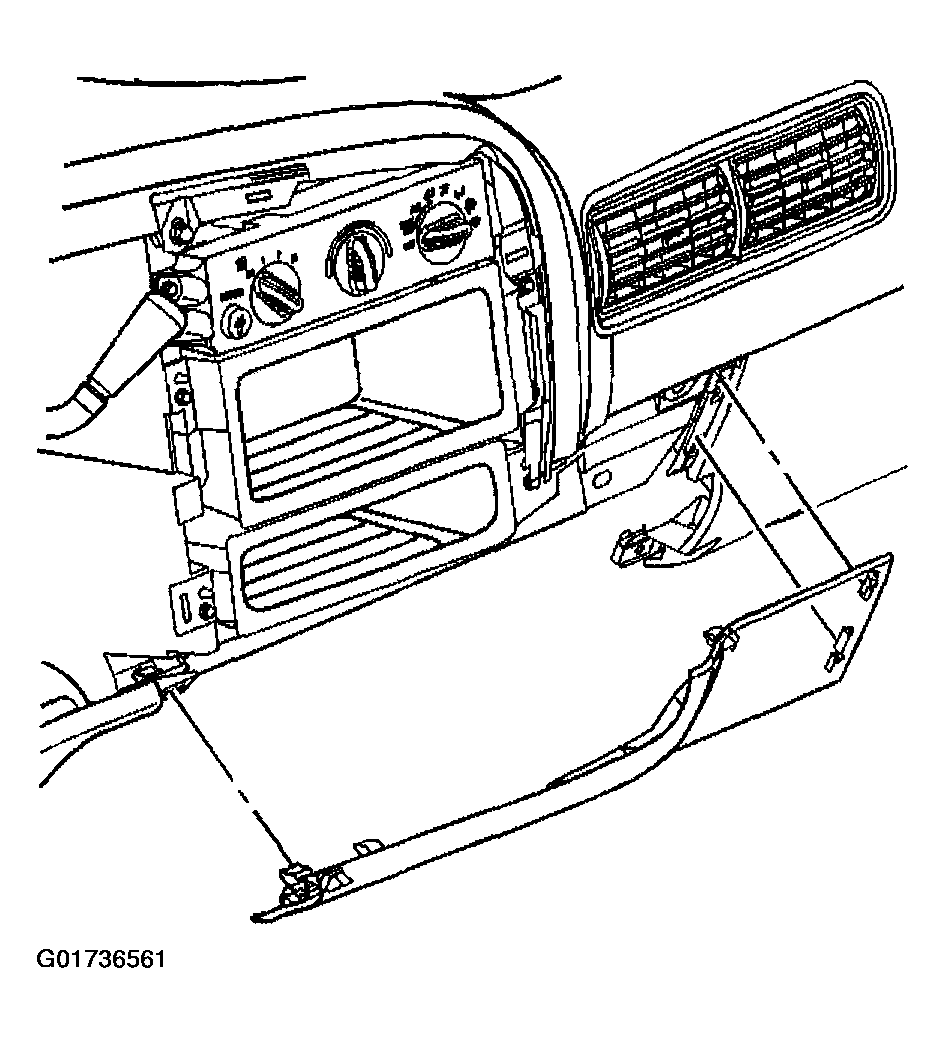

    Fig 1: Installing Instrument Panel Upper Trim
    G01736561Courtesy of GENERAL MOTORS CORP.
