Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel lower extension upper trim panel. Refer to Instrument Panel (I/P) Extension Trim Plate Replacement .
  2. Remove the bolts (4) that retain the top outer edges of the instrument panel lower extension.
  3. Remove the nuts (3) that retain the top and the bottom of the instrument panel lower extension.

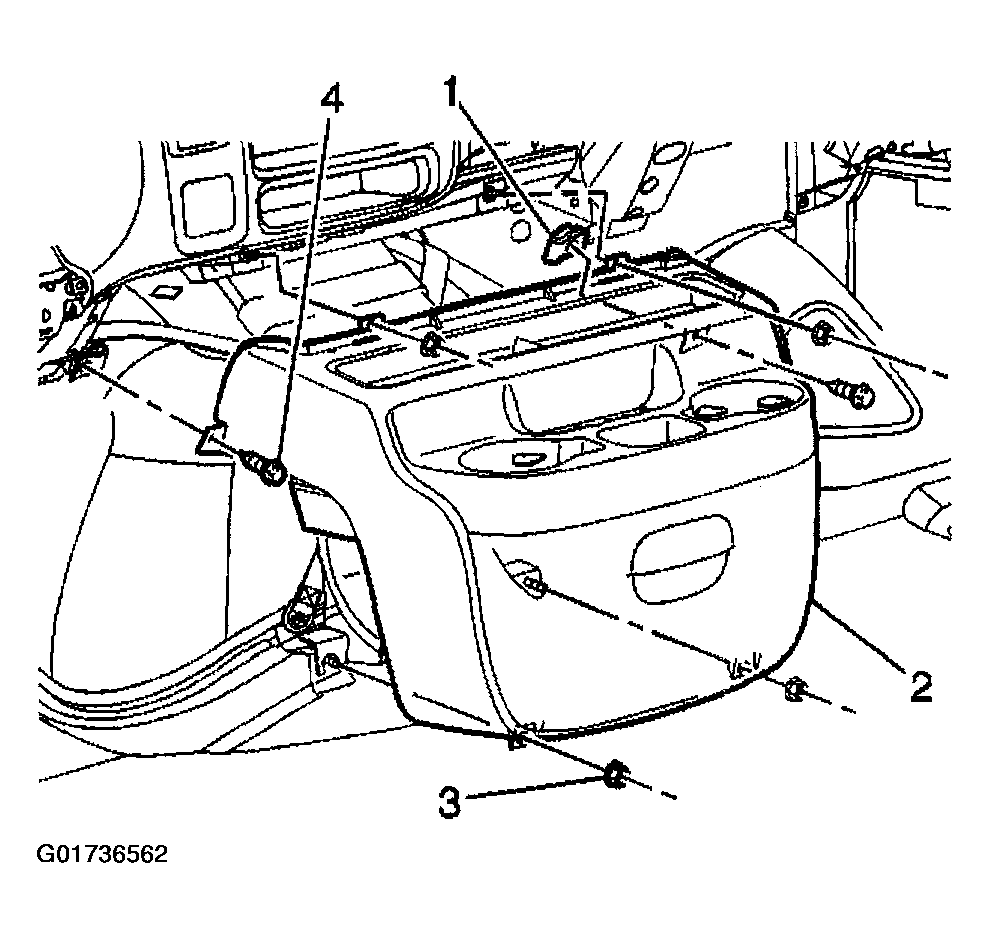

    Fig 1: Removing Bolts & Nuts Retaining Instrument Panel Lower Extension
    G01736562Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors for the following components:
    • The lighter
    • The accessory plug
    • The storage compartment lamp
  5. Remove the instrument panel lower extension (2) from the vehicle.
