Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fuel sender buffer module (2) to the vehicle.
  2. Connect the electrical connector (3) to the fuel sender buffer module.
  3. Install the fuel sender buffer module to the instrument panel passenger knee bolster inner bracket (4).
  4. Install the instrument panel passenger knee bolster. Refer to Knee Bolster Replacement - Right .

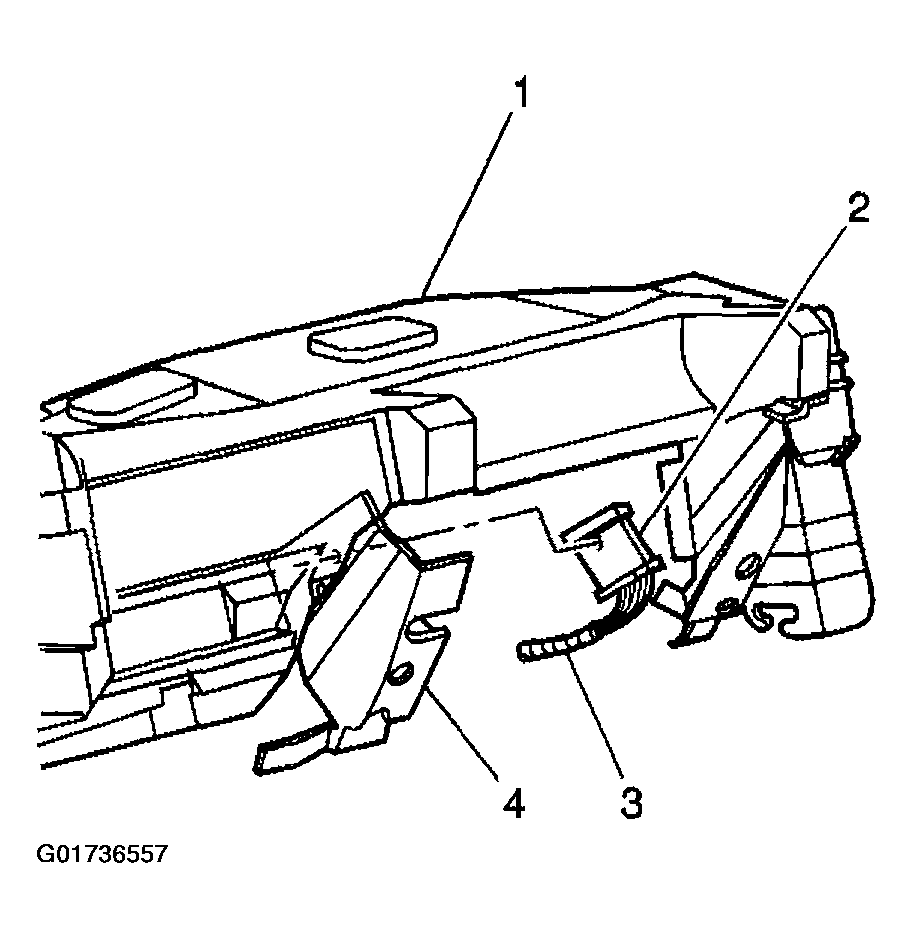

    Fig 1: Installing Fuel Sender Buffer Module Components
    G01736557Courtesy of GENERAL MOTORS CORP.
