Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel passenger knee bolster. Refer to Knee Bolster Replacement - Right .
  2. Remove the nuts that retain the instrument panel knee bolster inner and outer brackets to the instrument panel carrier.
  3. Remove the instrument panel knee bolster inner and outer brackets from the vehicle.

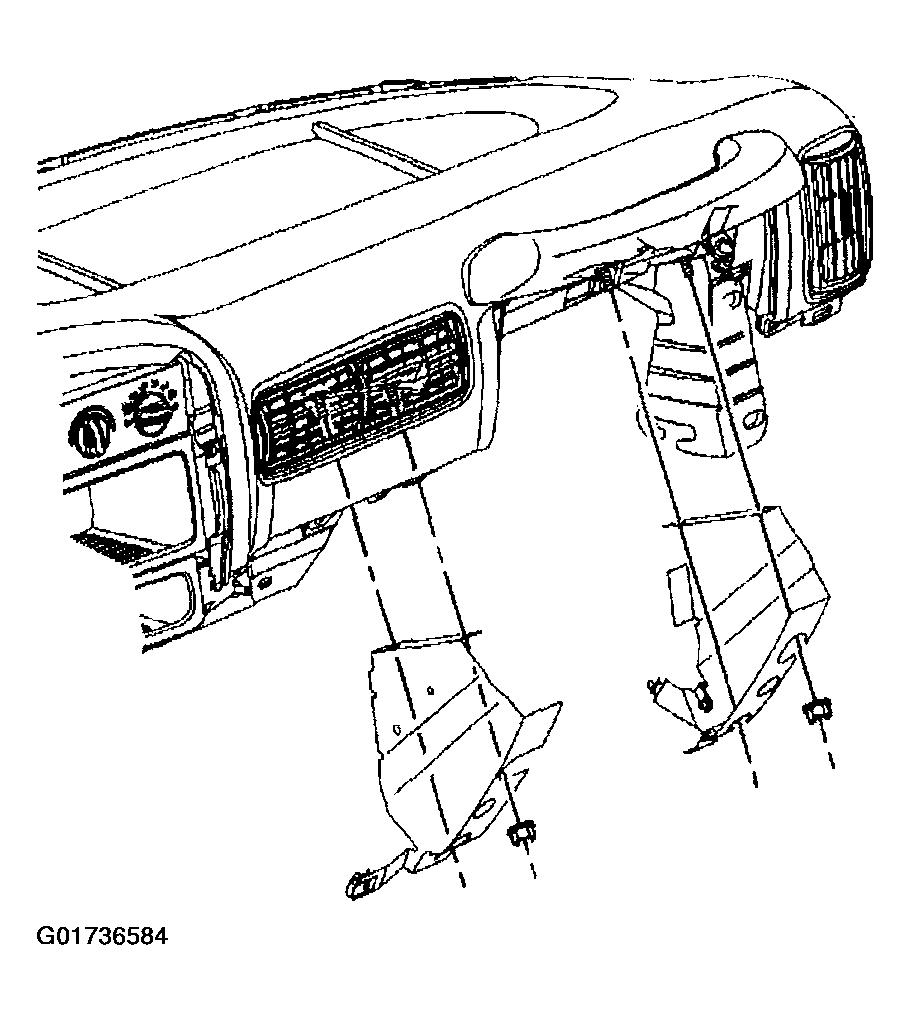

    Fig 1: Removing Knee Bolster Bracket
    G01736584Courtesy of GENERAL MOTORS CORP.
