Speedometer and/or Odometer Inaccurate or Inoperative (Gas)

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

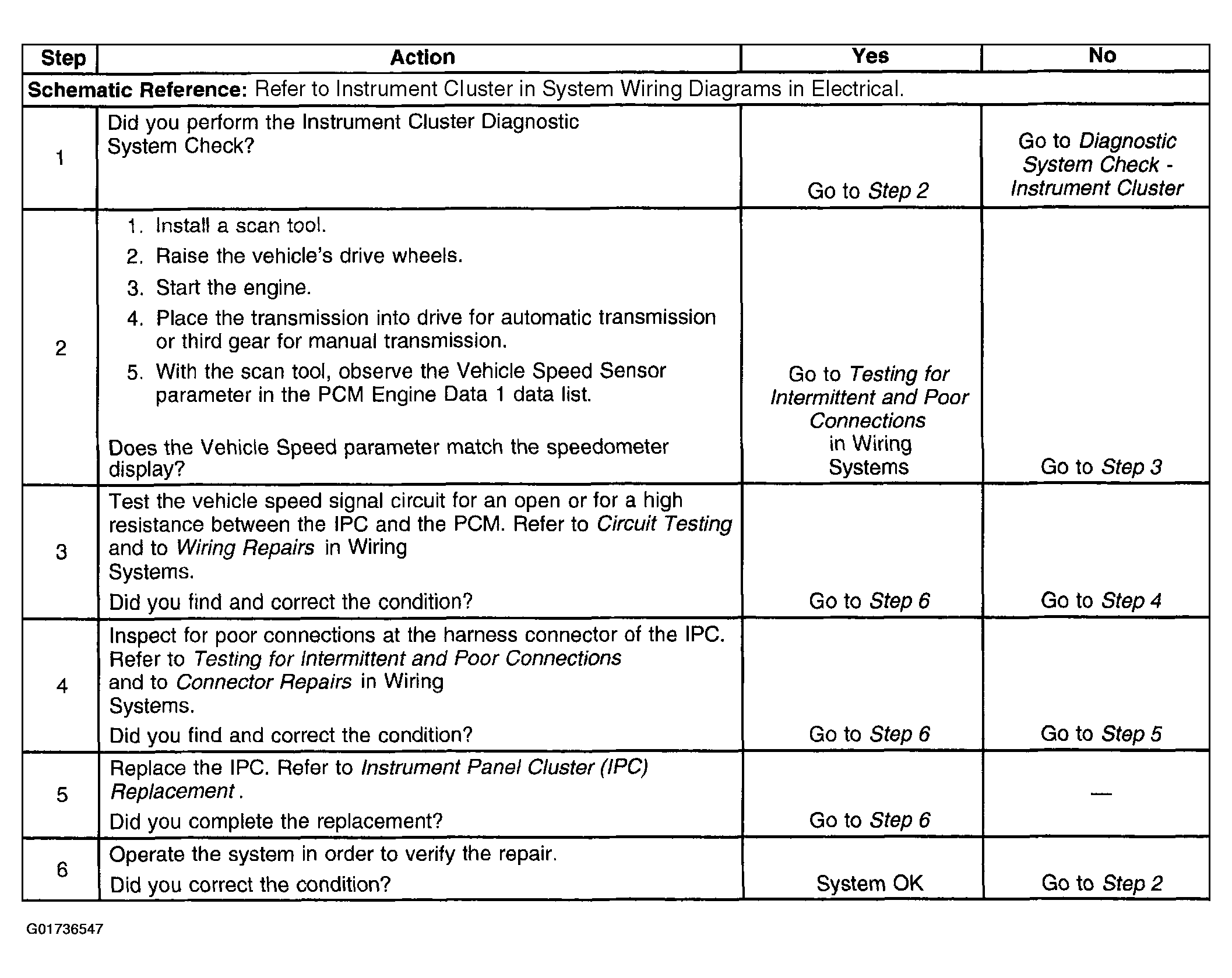

Fig 1: Speedometer and/or Odometer Inaccurate or Inoperative (Gas)
G01736547Courtesy of GENERAL MOTORS CORP.
