Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

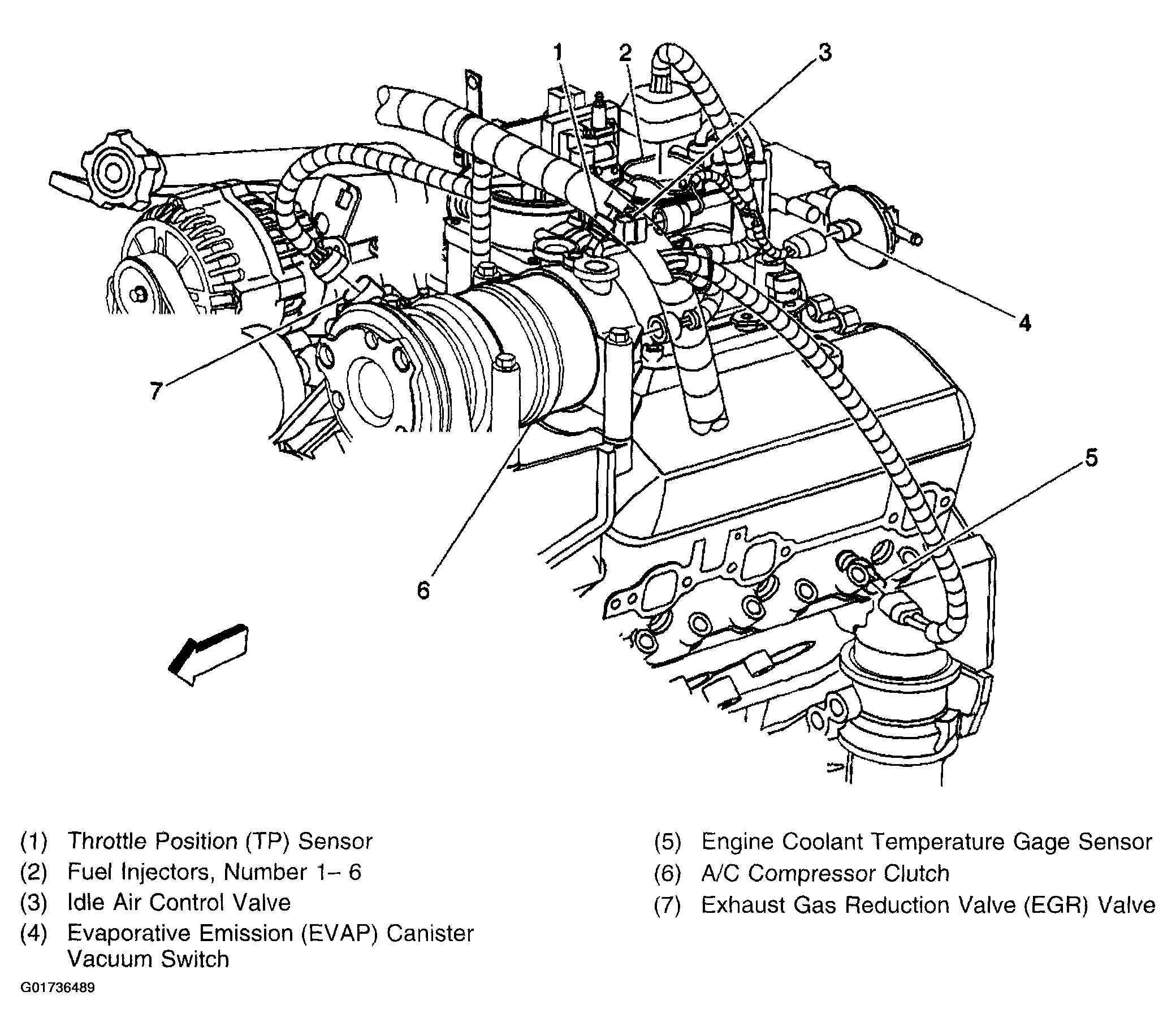

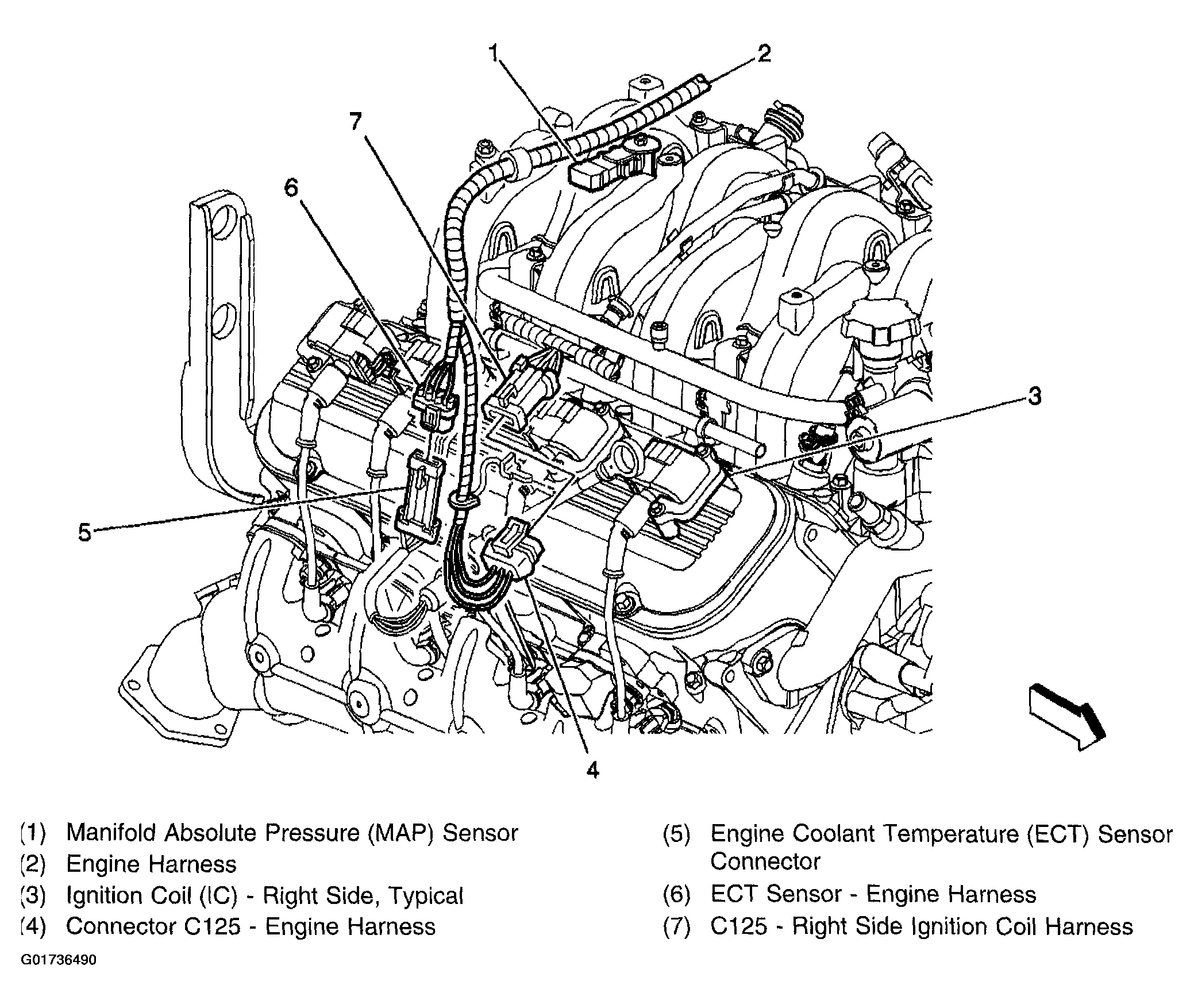

Fig 1: 4.3L Engine, Rear

Courtesy of GENERAL MOTORS CORP.

Fig 2: 4.3L Engine, Left Side

Courtesy of GENERAL MOTORS CORP.

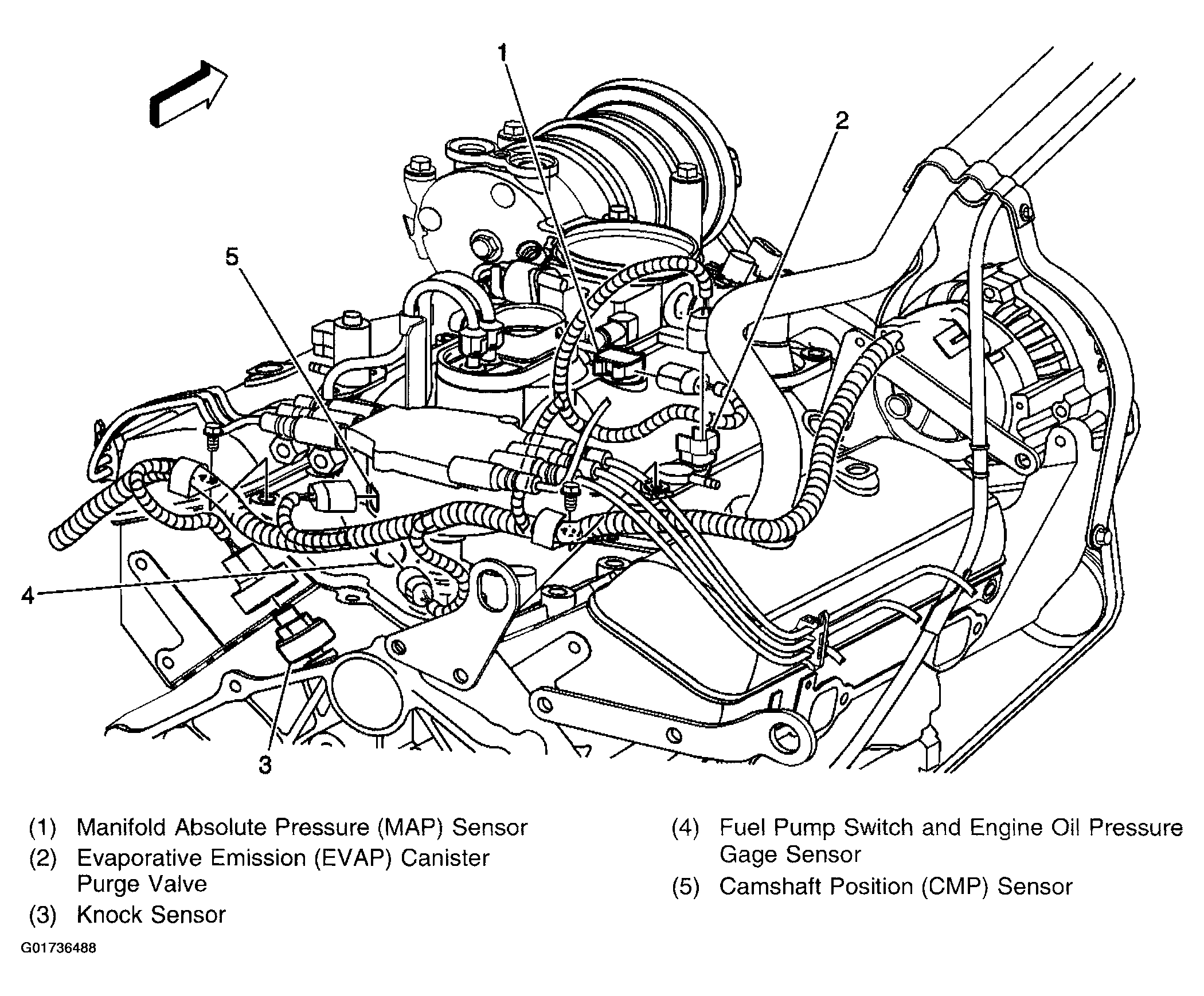

Fig 3: 8.1L Engine, Upper Right Side

Courtesy of GENERAL MOTORS CORP.

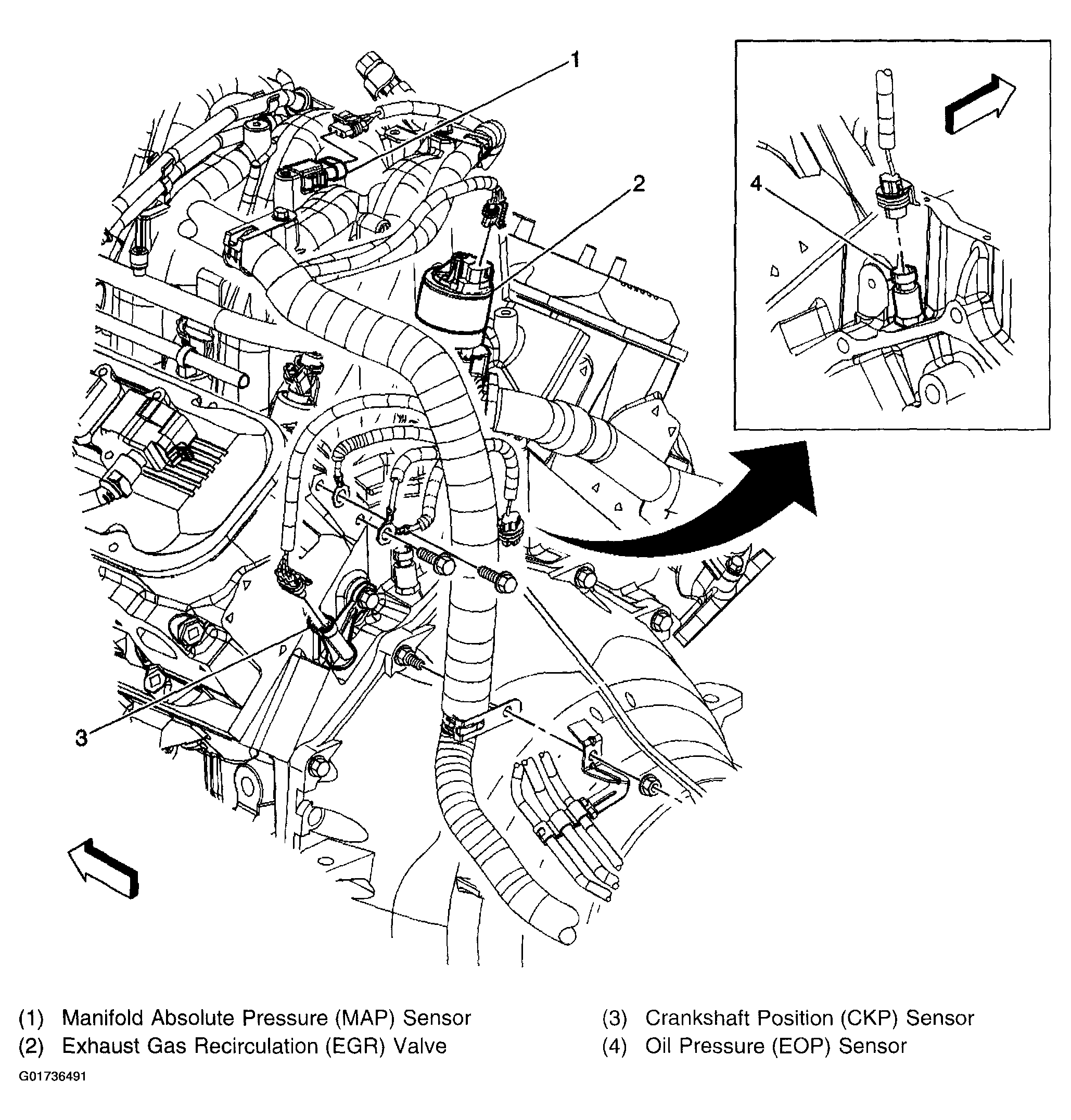

Fig 4: 8.1L Engine, Rear

Courtesy of GENERAL MOTORS CORP.

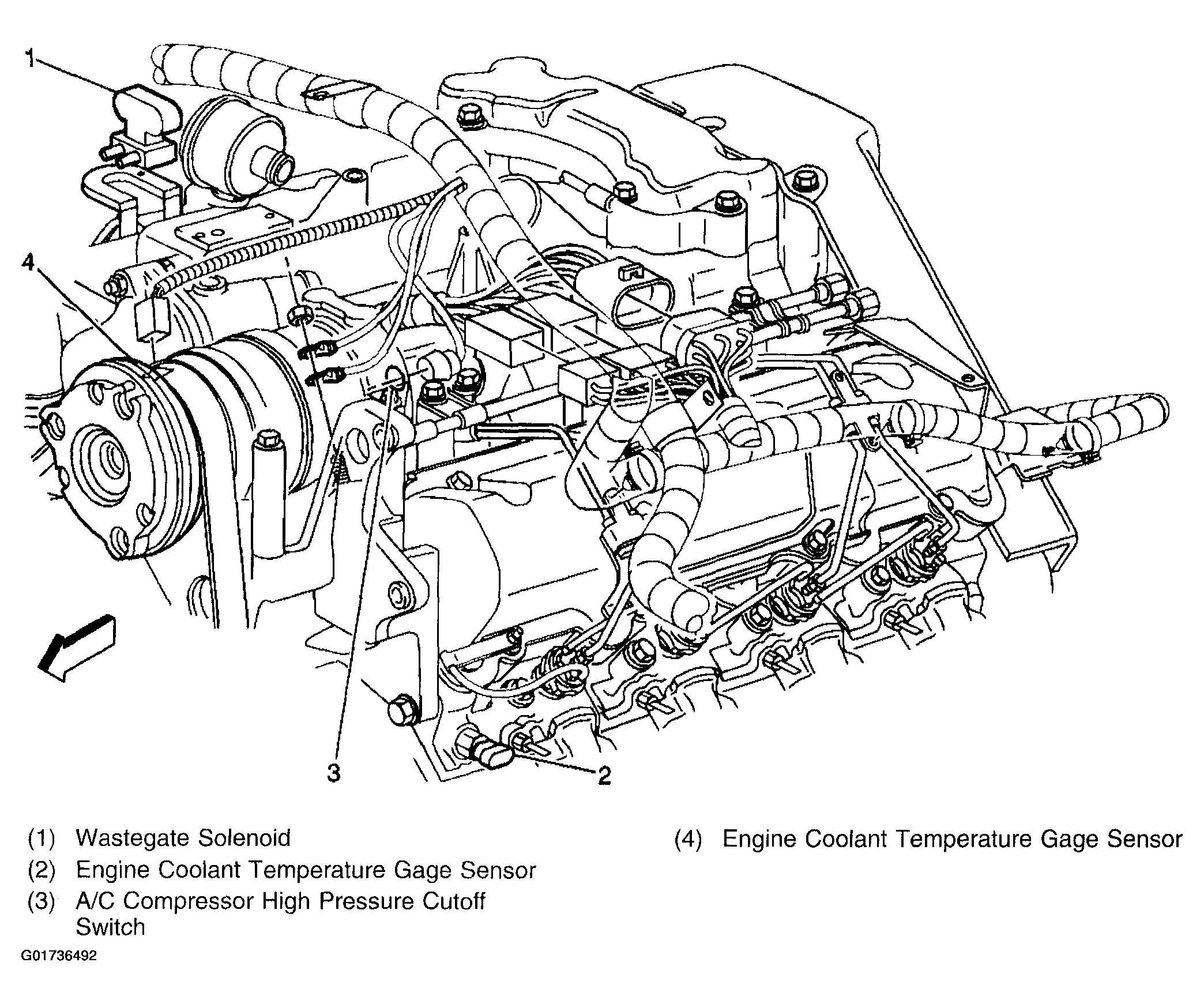

Fig 5: 6.5L Engine, Left Side

Courtesy of GENERAL MOTORS CORP.

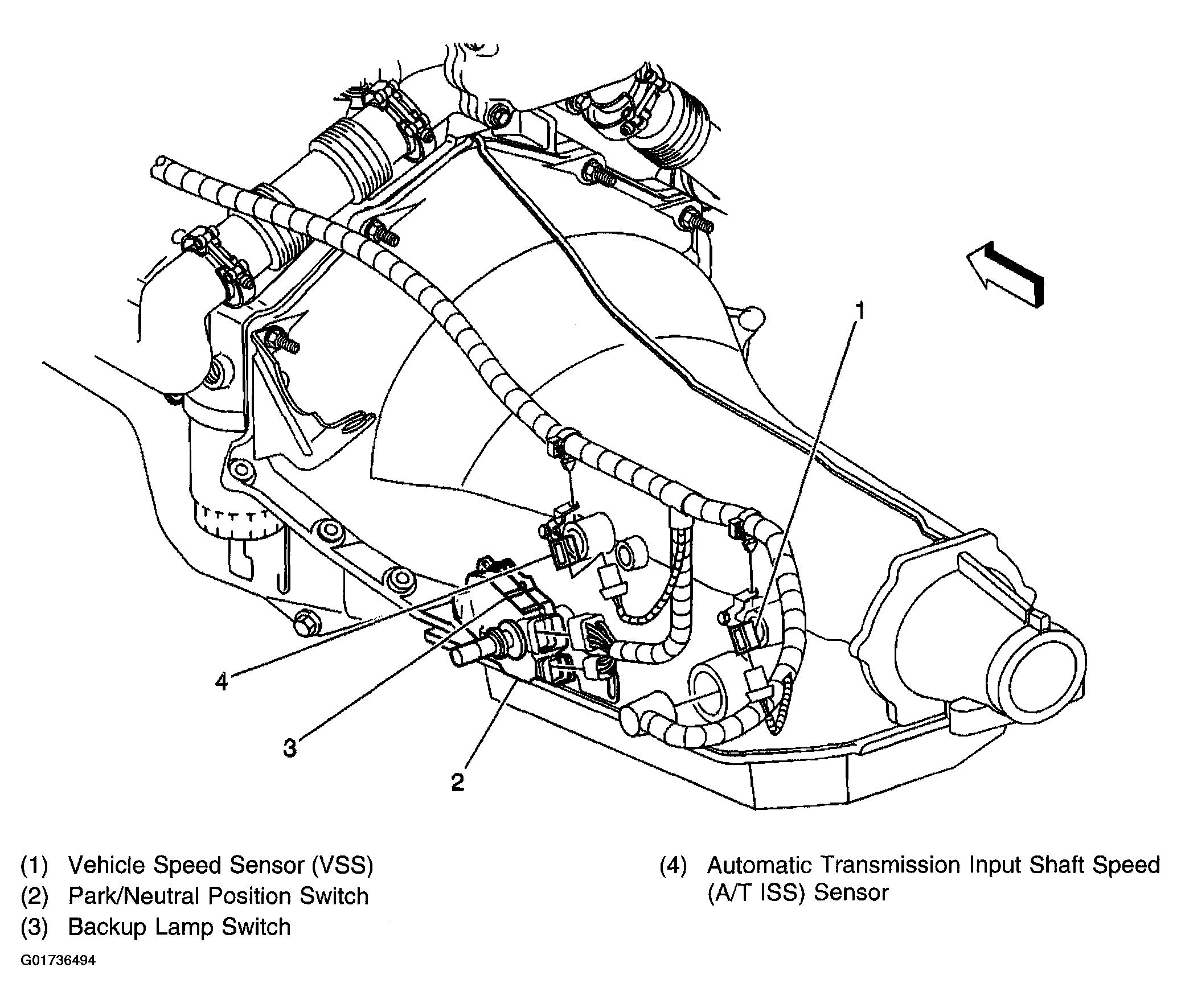

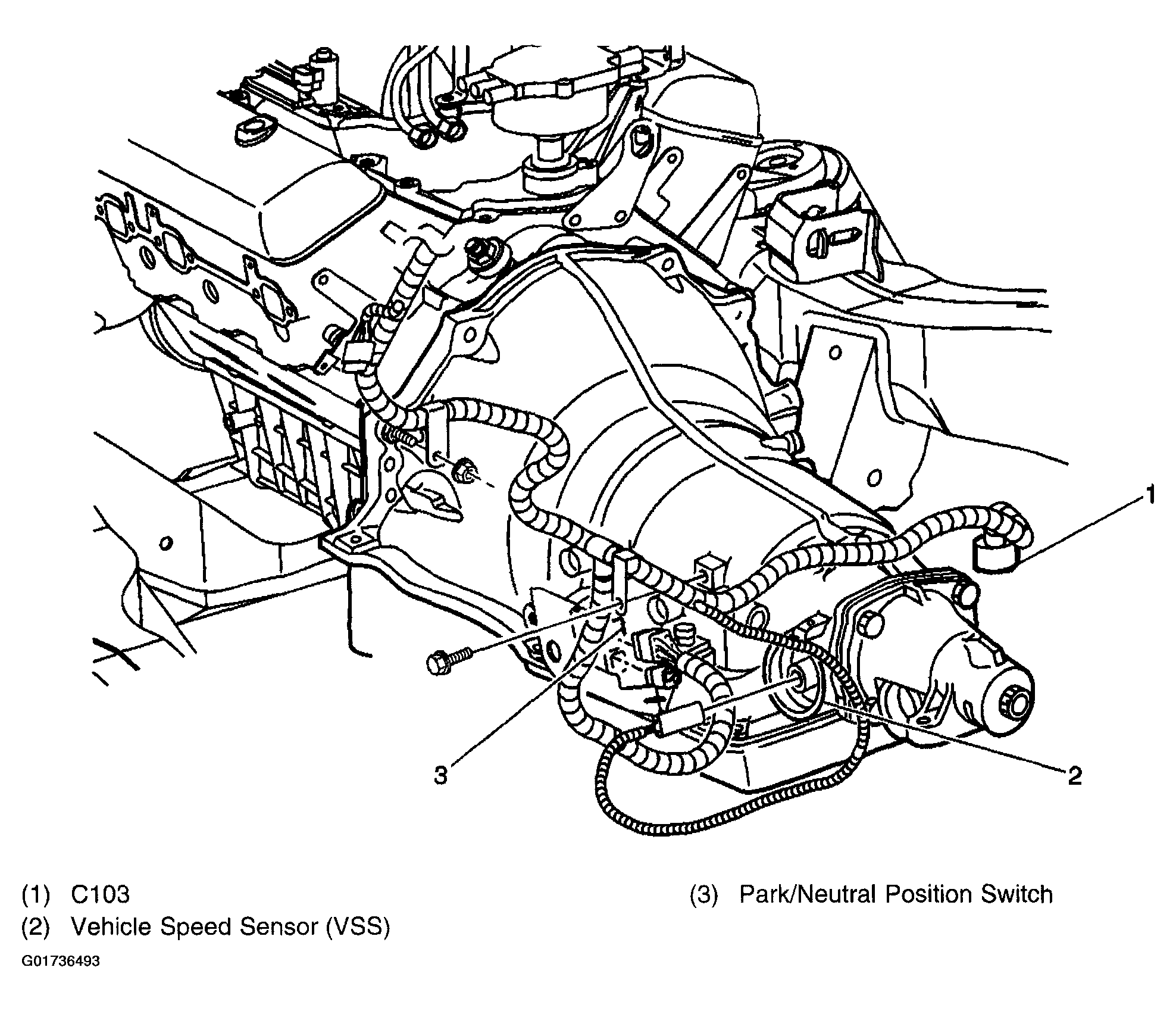

Fig 6: Automatic Transmission, 4-Speed, 4L60-E

Courtesy of GENERAL MOTORS CORP.

Fig 7: Automatic Transmission, 4-Speed, 4L80-E

Courtesy of GENERAL MOTORS CORP.

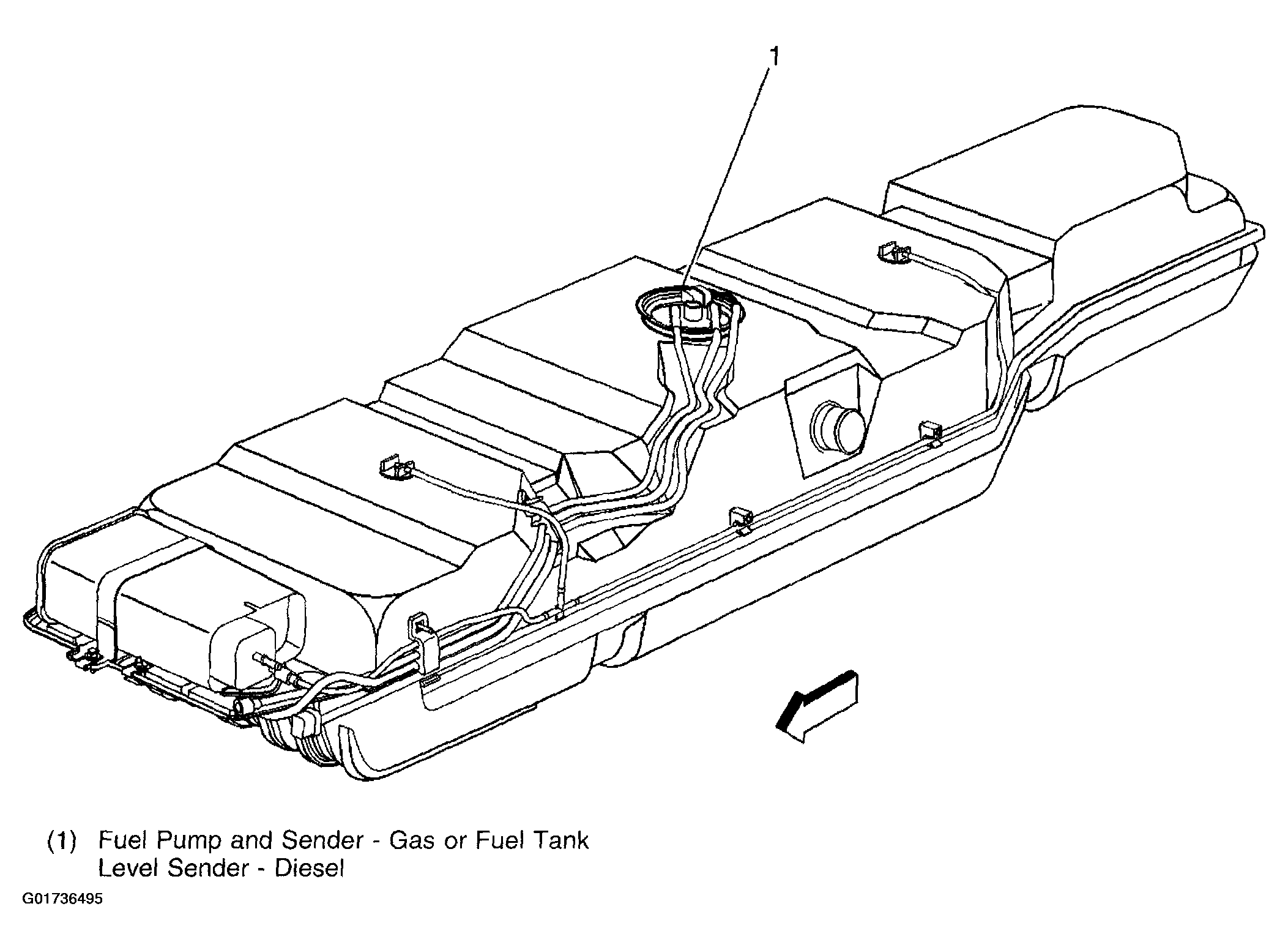

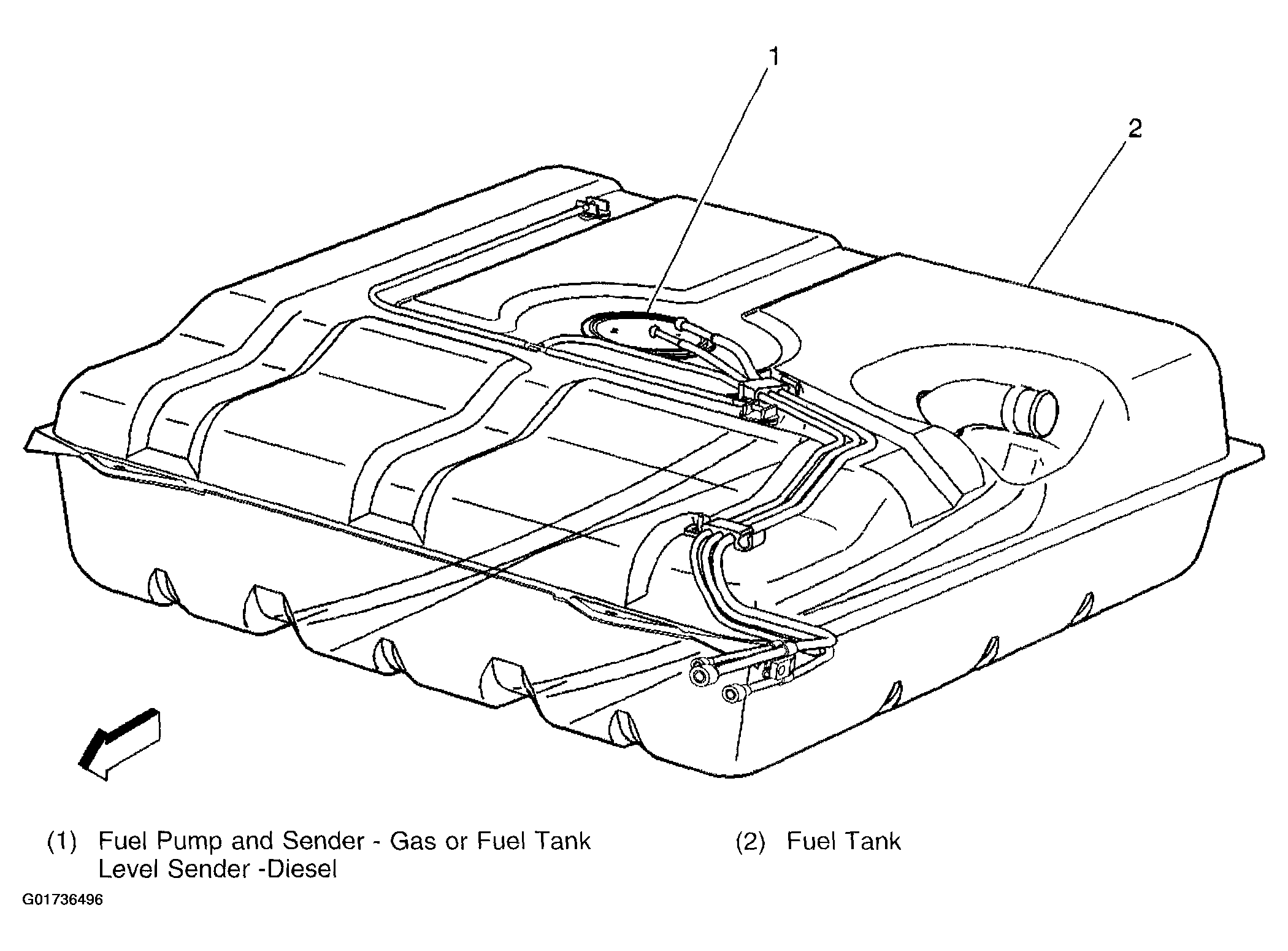

Fig 8: Fuel Tank (35 Gallons)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Fuel Tank (55 Gallons)

Courtesy of GENERAL MOTORS CORP.

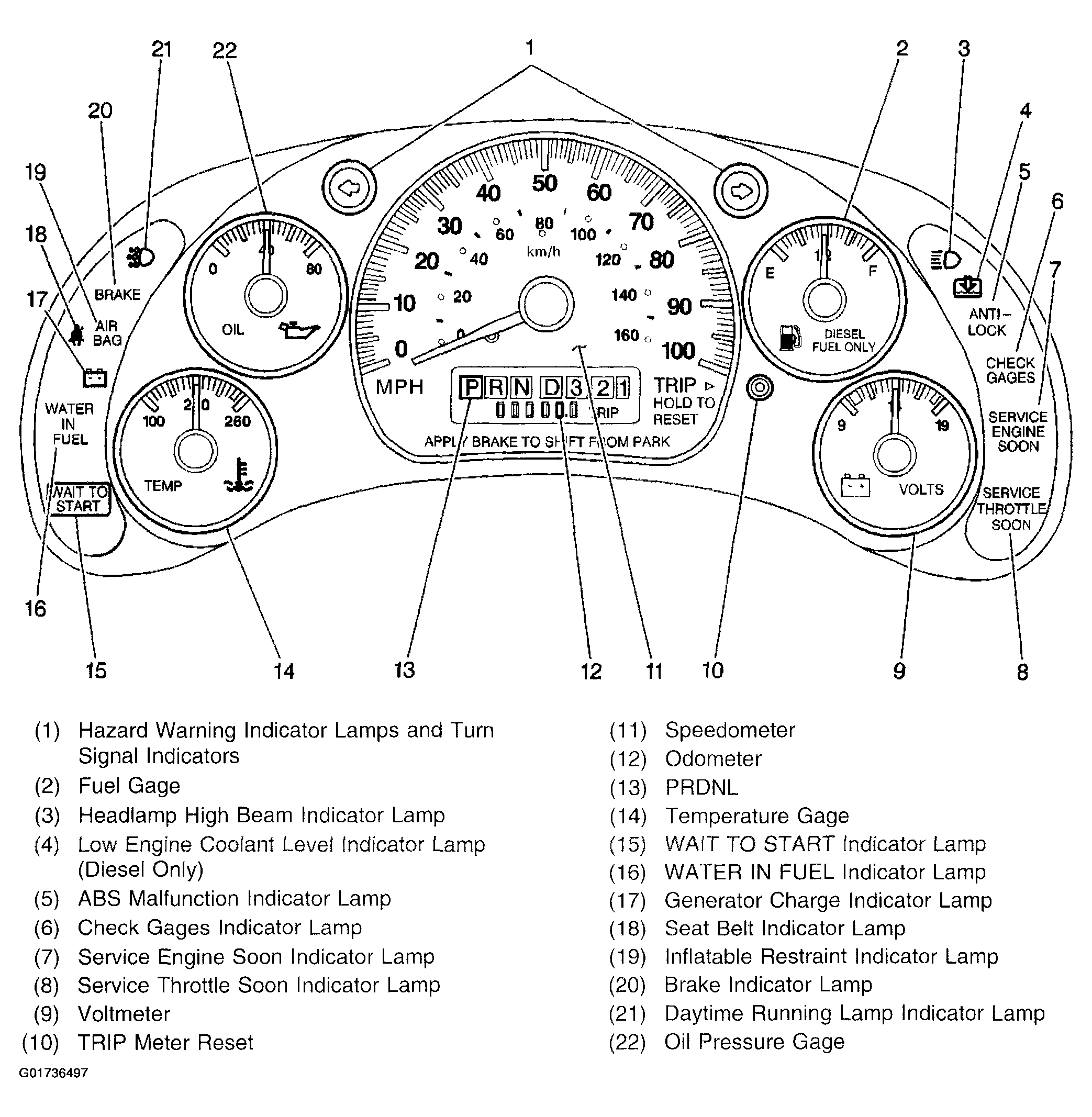

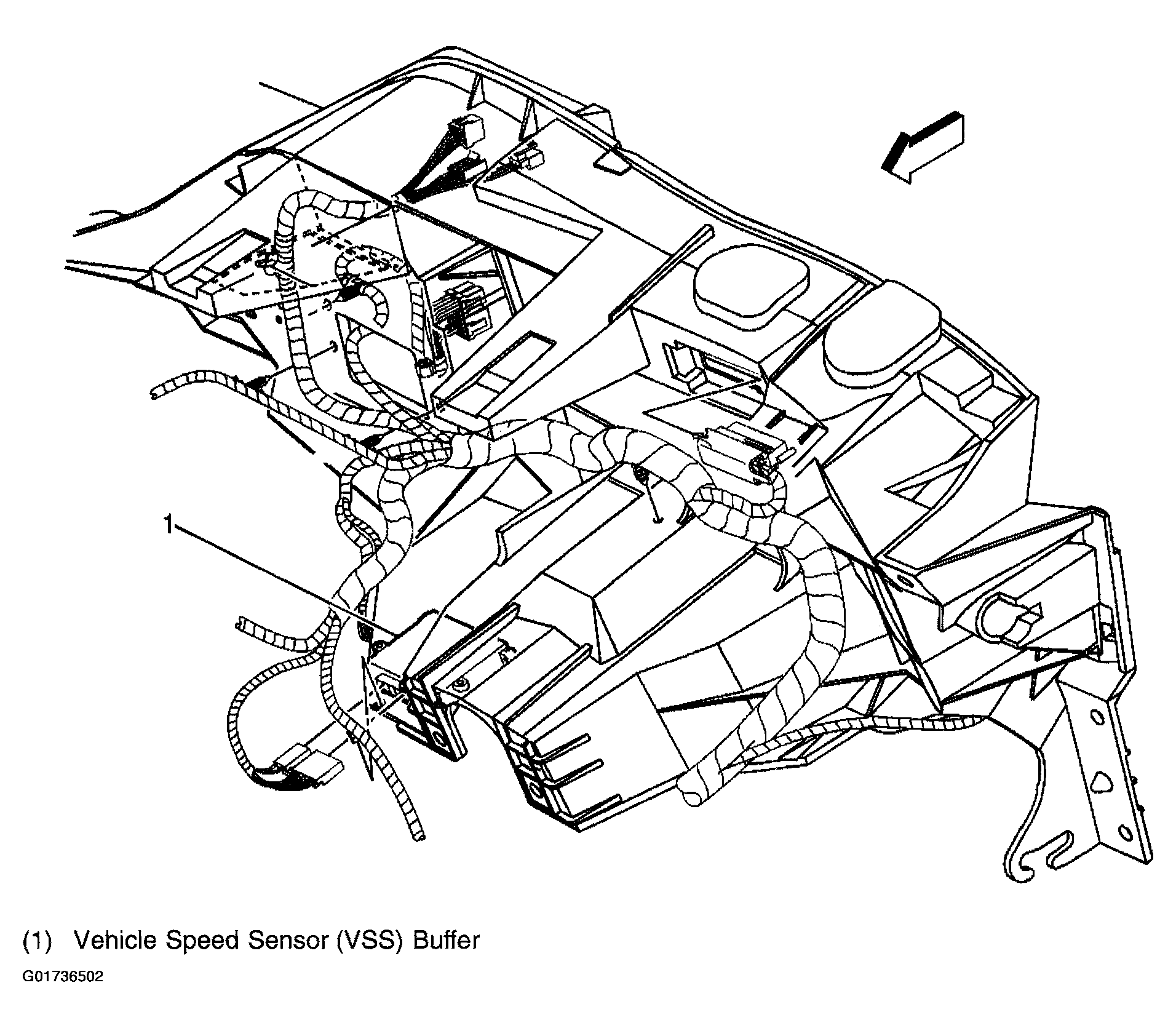

Fig 10: Instrument Cluster

Courtesy of GENERAL MOTORS CORP.

Fig 11: Instrument Panel, Driver Outer Knee Bolster Bracket

Courtesy of GENERAL MOTORS CORP.

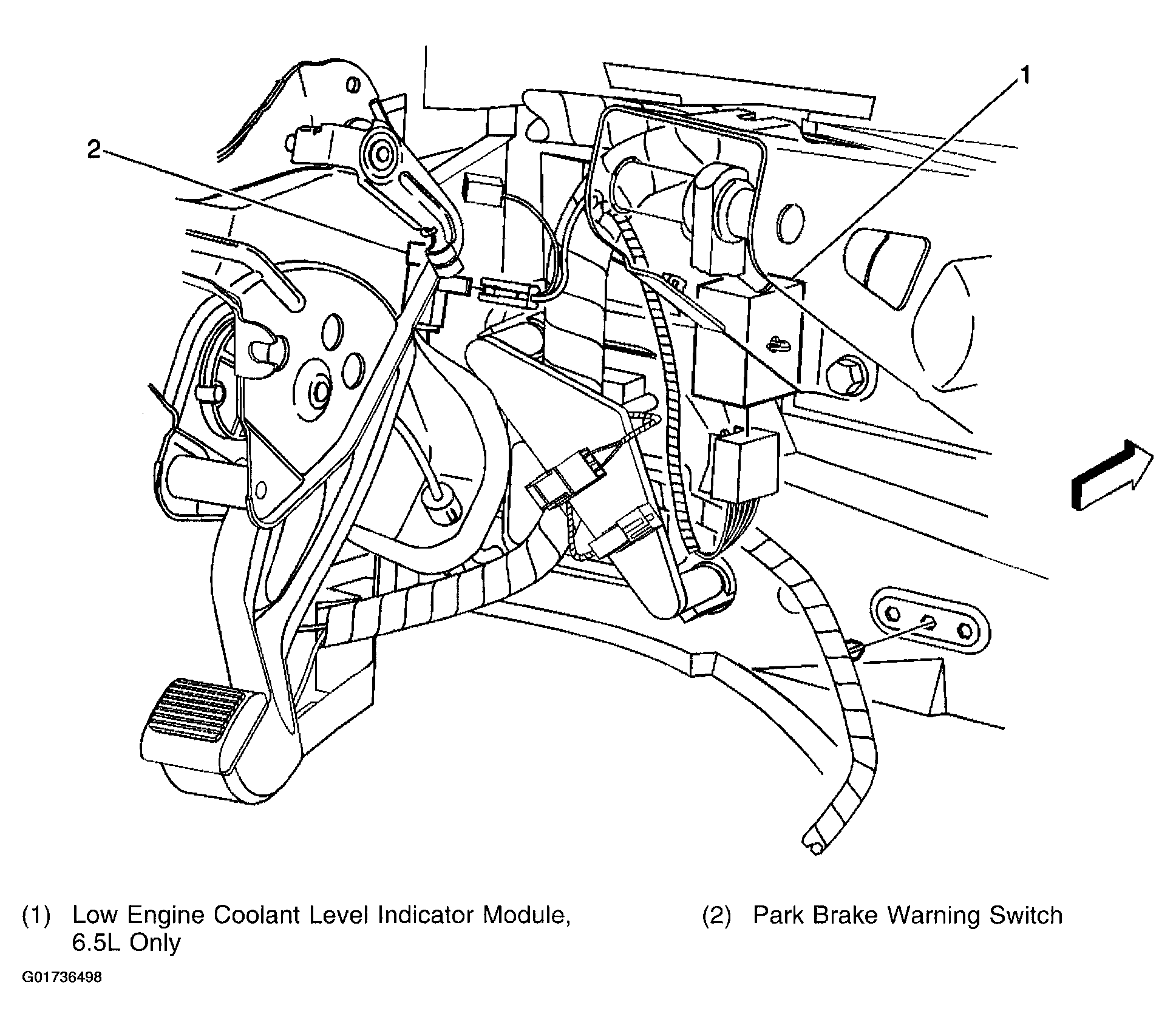

Fig 12: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

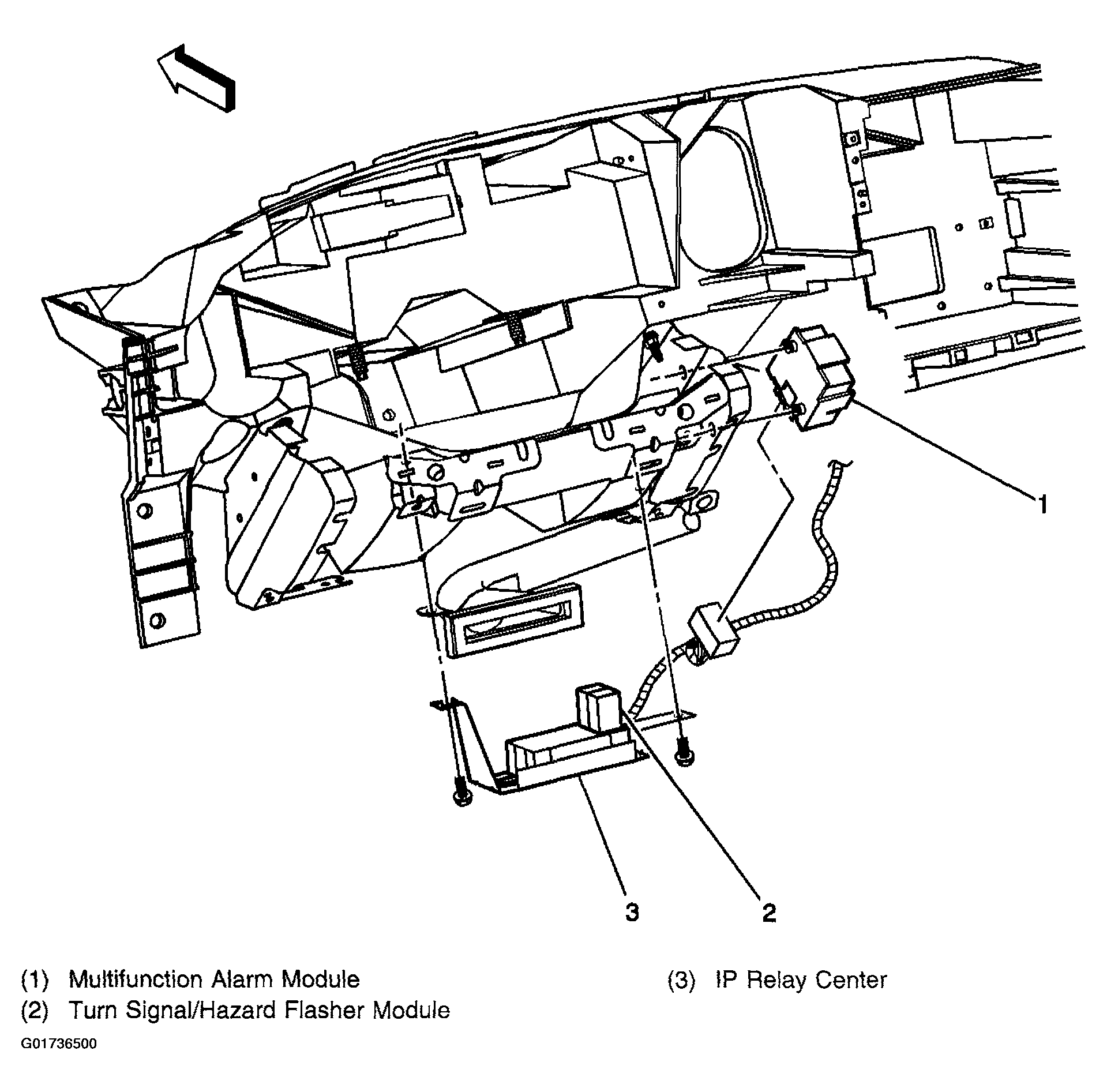

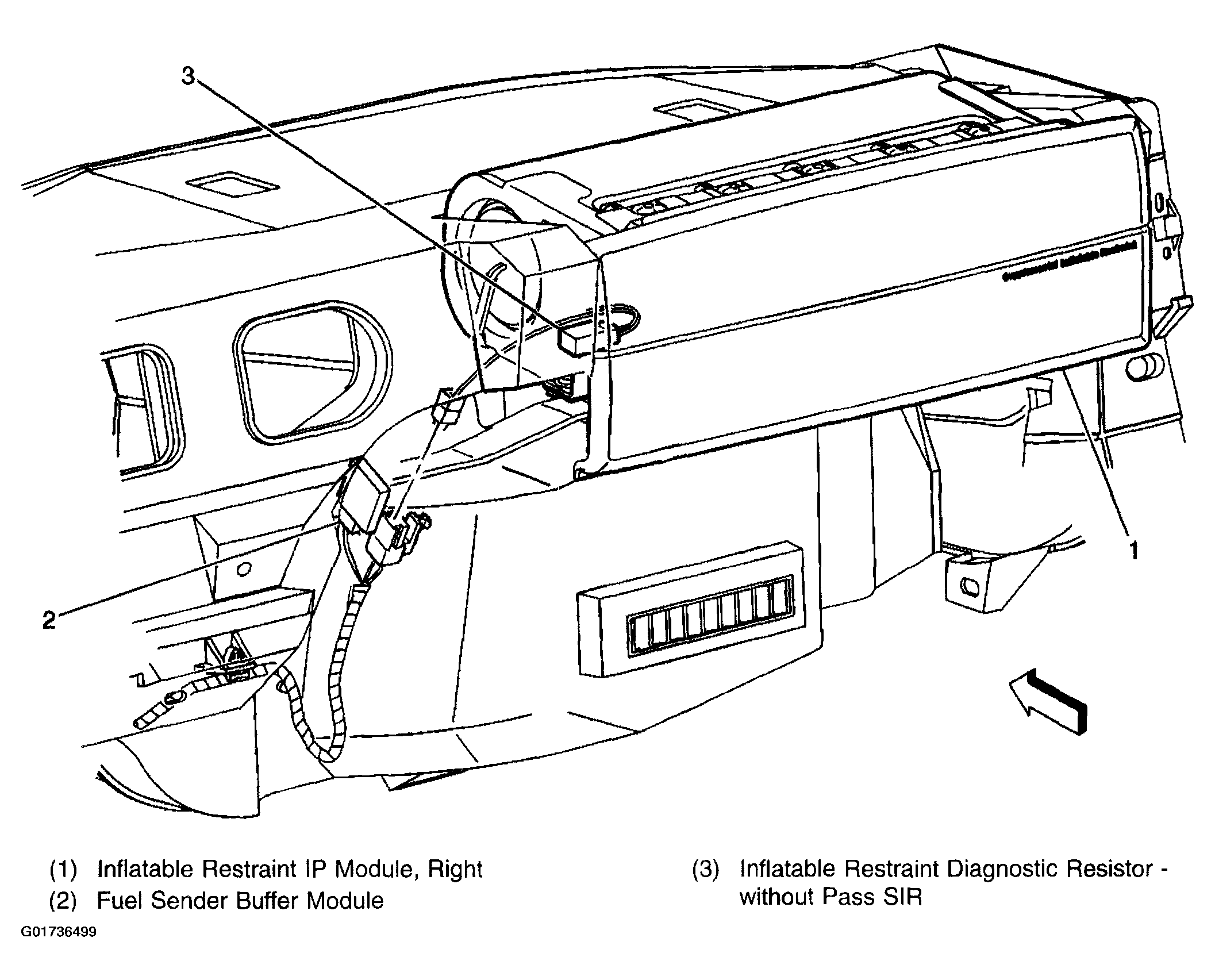

Fig 13: Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.

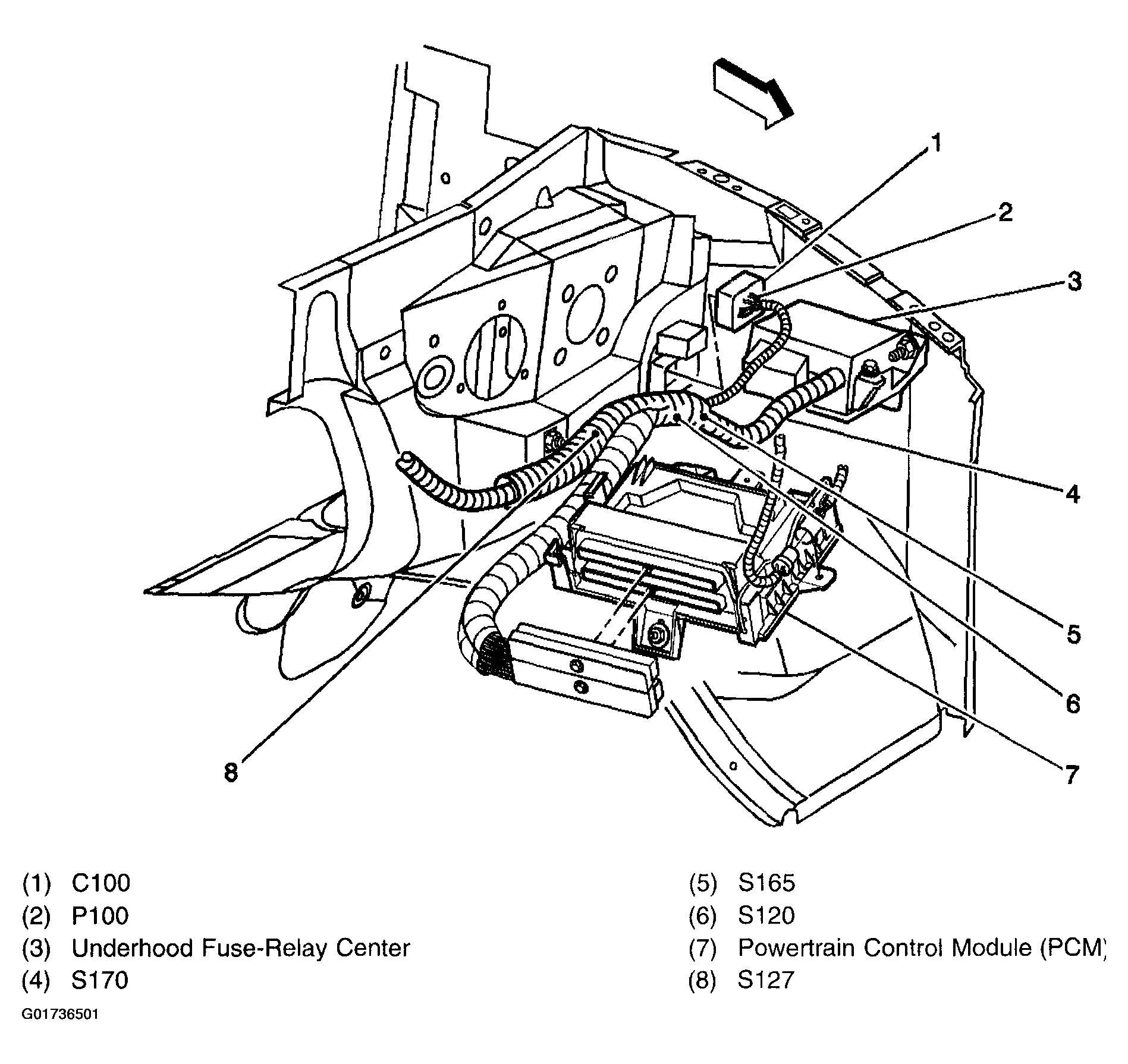

Fig 14: Underhood Fuse-Relay Center

Courtesy of GENERAL MOTORS CORP.

Fig 15: IP Wiring

Courtesy of GENERAL MOTORS CORP.
