Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry out the lens (2) of the vanity mirror assembly (4) with a suitable flat-bladed tool.
  2. Remove the bulb (3) from the socket.

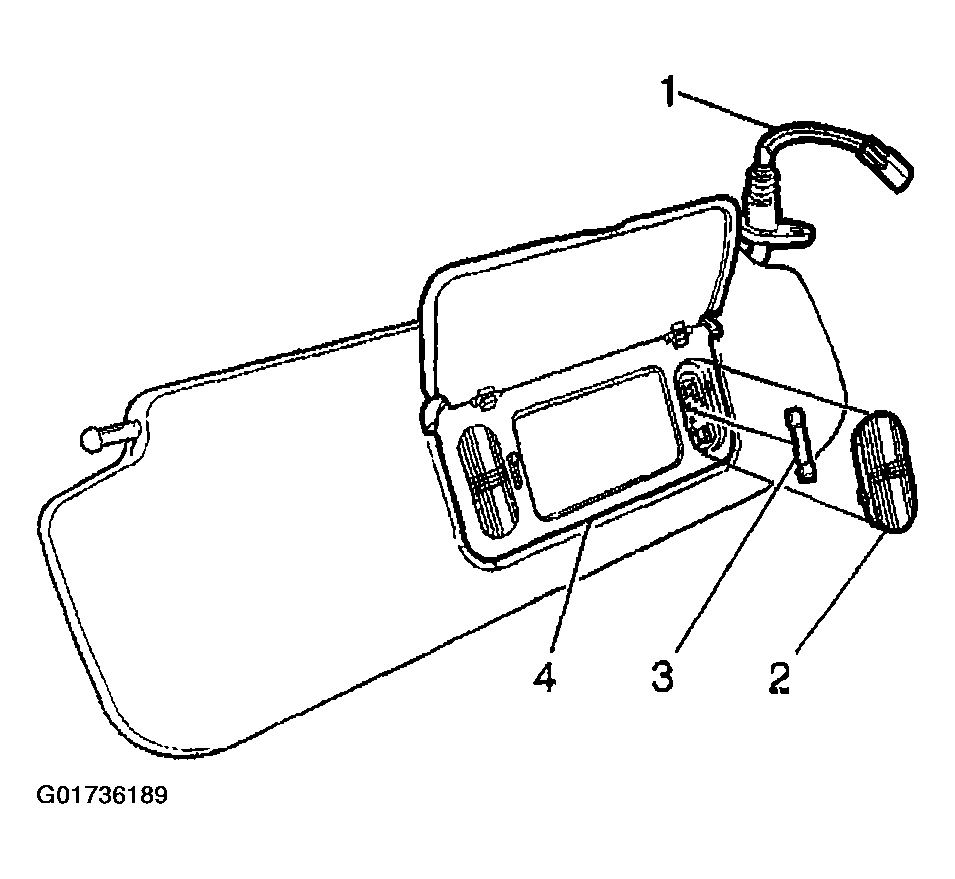

    Fig 1: Removing Lens & Bulb
    G01736189Courtesy of GENERAL MOTORS CORP.
