Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (3) that retain the park/turn signal lamp to the radiator grille.
  2. Remove the park/turn signal lamp (2) from the radiator grille.
  3. Disconnect the bulb socket (1) from the park/turn signal lamp by turning the bulb sockets in a counterclockwise direction.
  4. Remove the bulb (1) from the socket.

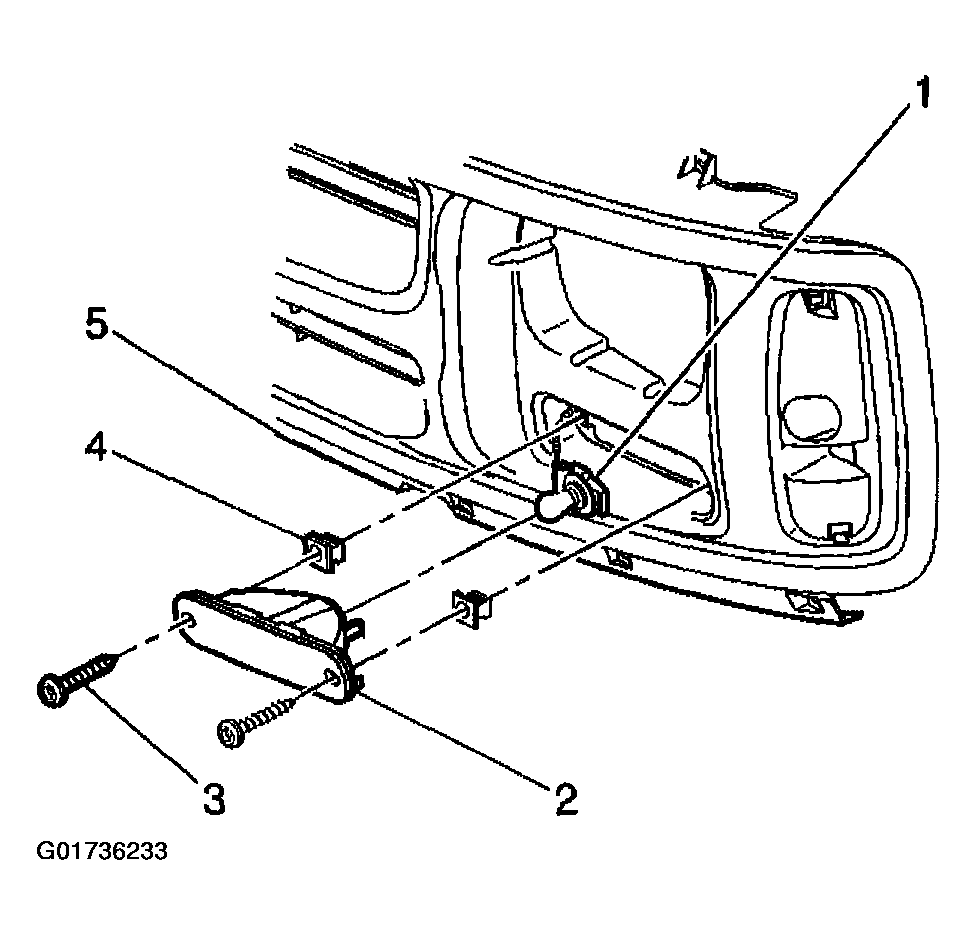

    Fig 1: Removing Park/Turn Signal Lamp (RPO T90) Components
    G01736233Courtesy of GENERAL MOTORS CORP.
