Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw (4) that retains the front side marker lamp to the radiator grille.
  2. Lift the side marker lamp (3) up and out in order to disengage the tab.
  3. Disconnect the bulb socket (1) from the side marker lamp.
  4. Remove the bulb (1) from the socket.

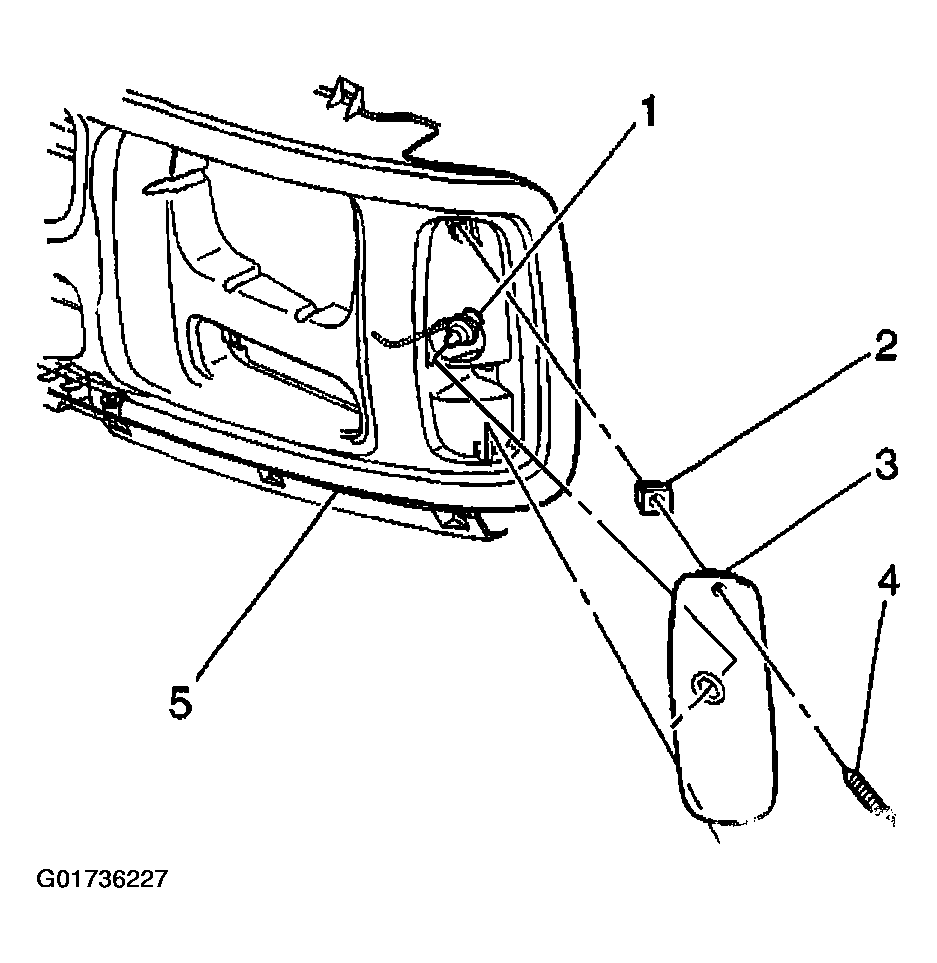

    Fig 1: Disconnecting Bulb Socket & Removing Screw & Bulb
    G01736227Courtesy of GENERAL MOTORS CORP.
