Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (4) that retain the license plate lamp to the license pocket.
  2. Remove the license plate the lamp (3) from the license pocket.
  3. Disconnect the bulb socket (2) from the license plate lamp.
  4. Remove the bulb (2) from the socket.

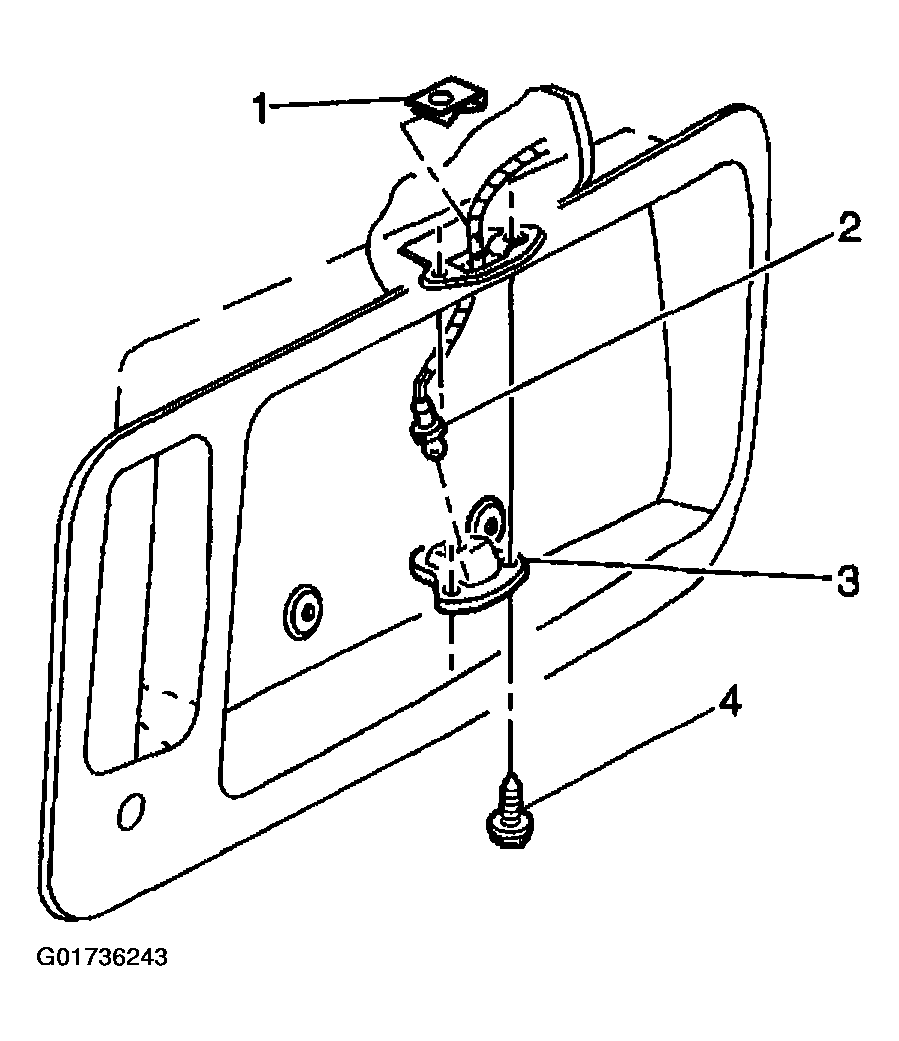

    Fig 1: Removing License Lamp Components
    G01736243Courtesy of GENERAL MOTORS CORP.
