Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the headlamp.
  2. Install the headlamp to the housing.
  3. Install the retaining ring to the headlamp.
  4. Install the screws to the retaining ring.

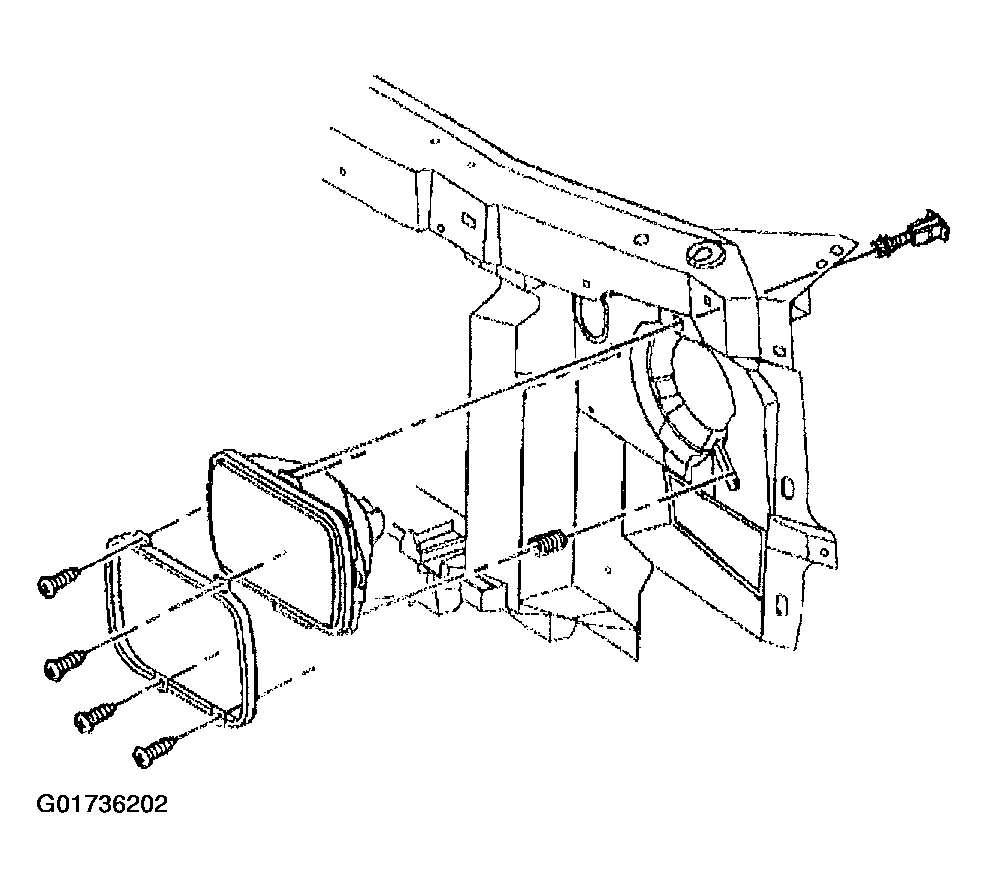

    Fig 1: Installing Headlamp Components
    G01736202Courtesy of GENERAL MOTORS CORP.
