Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel driver knee bolster panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  2. Remove the bolts (3) that retain the relay center and the bracket to the inner and outer brackets of the instrument panel driver knee bolster.
  3. Remove the relay center (5) and the bracket (4) from the inner and outer brackets of the instrument panel driver knee bolster.

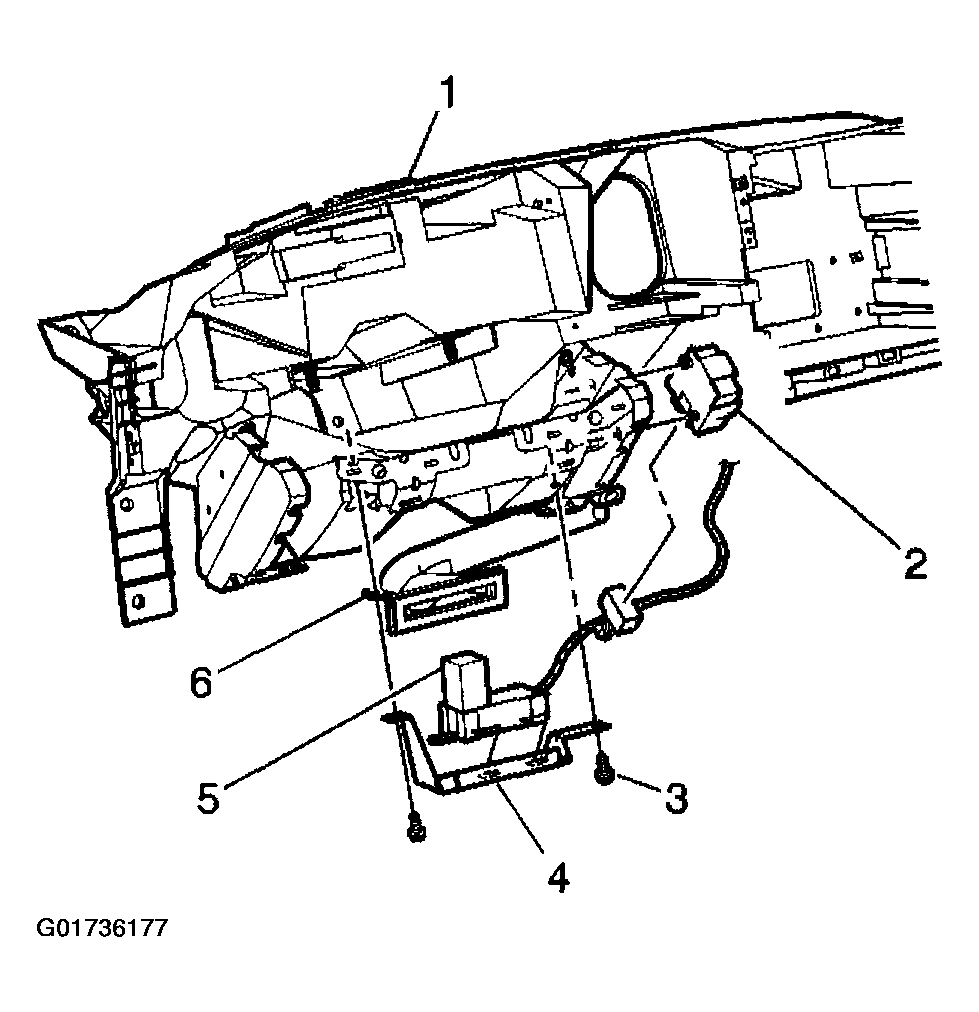

    Fig 1: Removing Instrument Panel Driver Knee Bolster Components
    G01736177Courtesy of GENERAL MOTORS CORP.
  4. Remove the hazard and turn signal flasher (1) from the relay center.

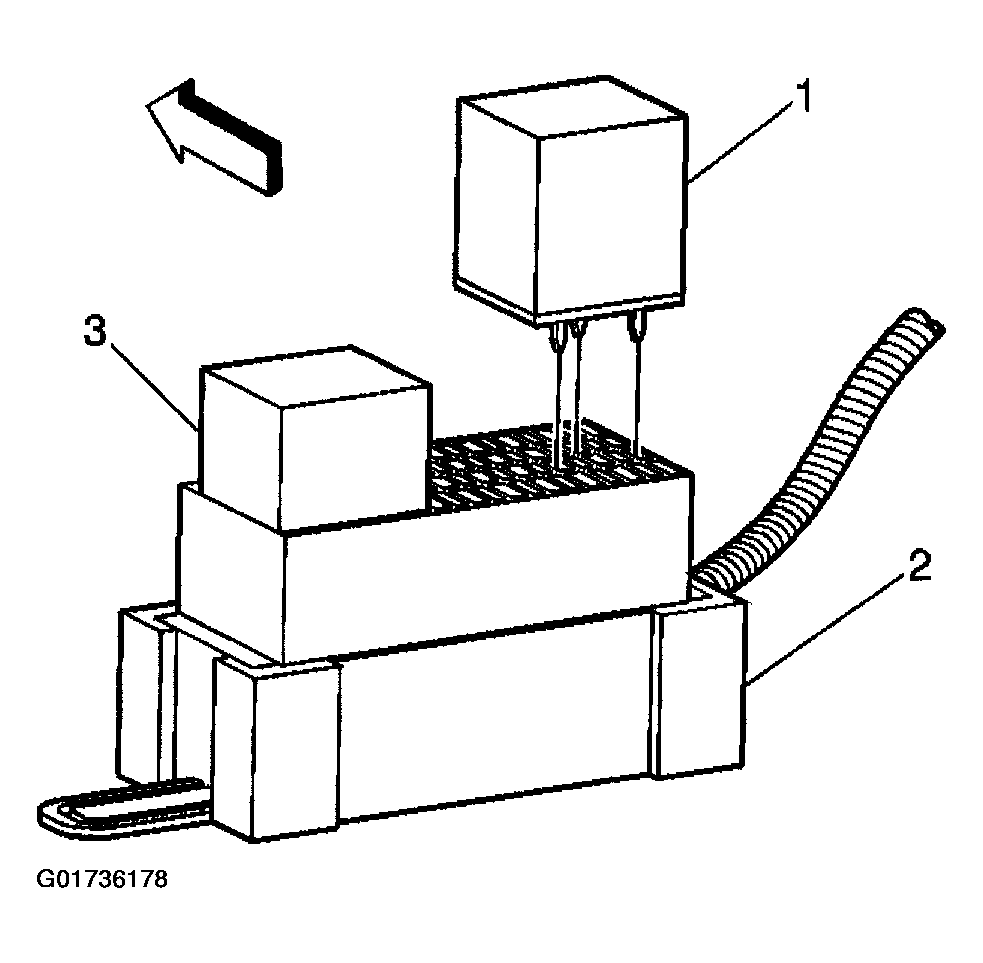

    Fig 2: Removing Hazard & Turn Signal Flasher
    G01736178Courtesy of GENERAL MOTORS CORP.
