Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Important: Avoid excessive force when prying the bezel from the instrument panel extension.

Pry the bezel from the instrument panel extension using a flat-bladed tool.
Remove the electrical connector from the rear fog lamp switch.

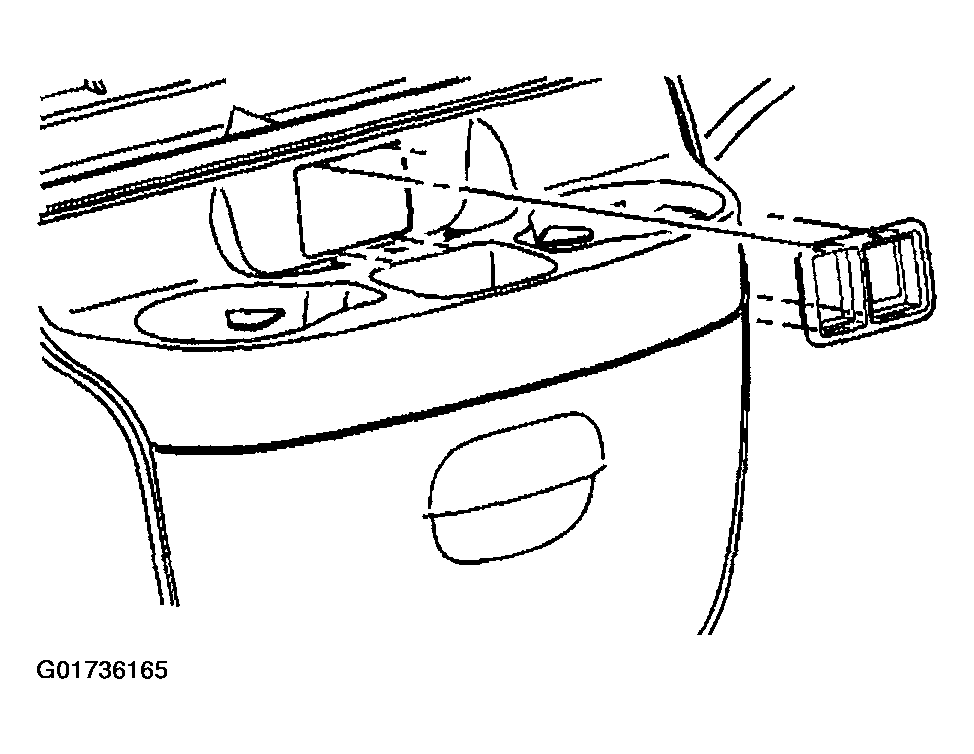

Fig 1: Removing Electrical Connector From Rear Fog Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Press the tabs on the rear fog lamp switch in order to disengage the tabs from the bezel.
Remove the rear fog lamp switch from the vehicle.

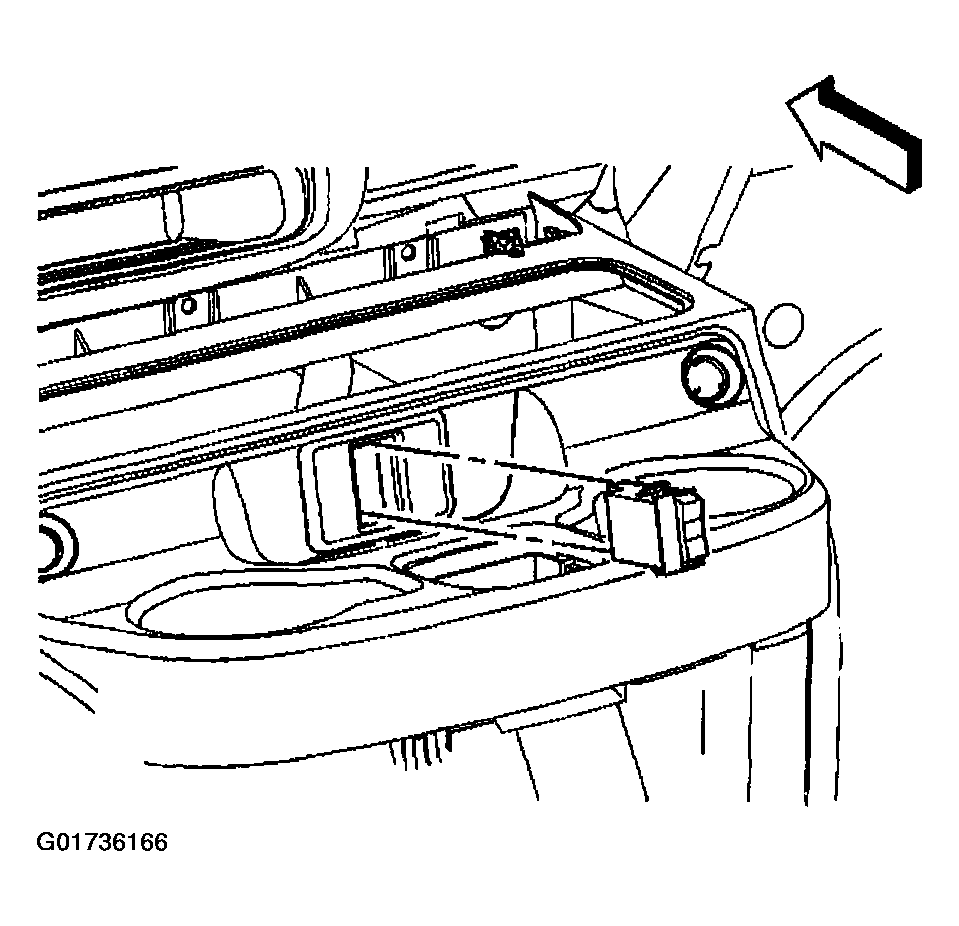

Fig 2: Removing Rear Fog Lamp Switch From Vehicle
Courtesy of GENERAL MOTORS CORP.
