Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) trim-plate bezel from the IP.TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PAN
  2. Disconnect the electrical connector from the fog lamp switch.
  3. Using a small flat-bladed tool, carefully release the retaining tabs (1) that connect the fog lamp switch to the IP trim-plate bezel.
  4. Remove the fog lamp switch (2) from the IP trim-plate bezel.

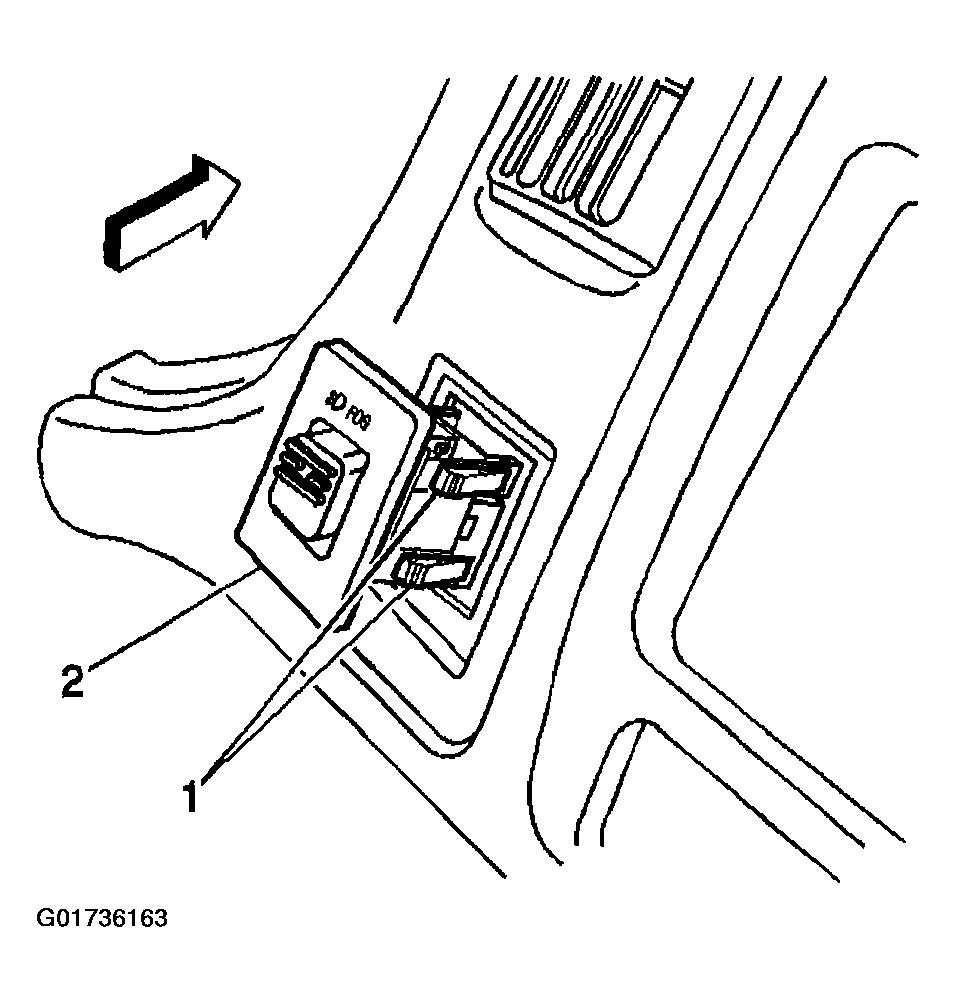

    Fig 1: Releasing Retaining Tabs & Removing Fog Lamp Switch
    G01736163Courtesy of GENERAL MOTORS CORP.
