Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fog lamp switch (2) to the IP trim-plate bezel. Press into place.
  2. Connect the electrical connector to the fog lamp switch.
  3. Install the IP trim-plate bezel. TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL

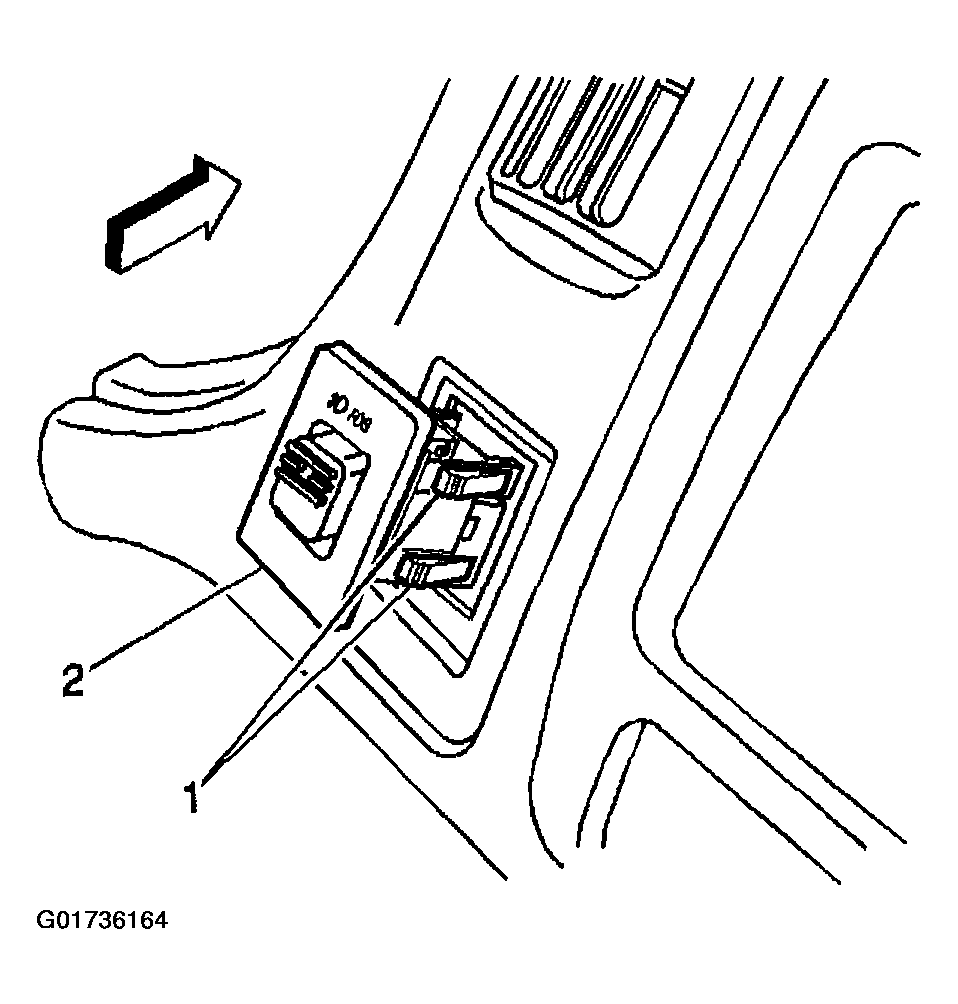

    Fig 1: Aligning Fog Lamp Switch To IP Trim-Plate Bezel
    G01736164Courtesy of GENERAL MOTORS CORP.
