Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the lamp assembly.
  2. Remove the nut retaining the lamp assembly to the bracket.
    Fig 1: Disconnecting Electrical Connector & Removing Nut
    G01736216Courtesy of GENERAL MOTORS CORP.
  3. Remove the lamp assembly from the bumper.

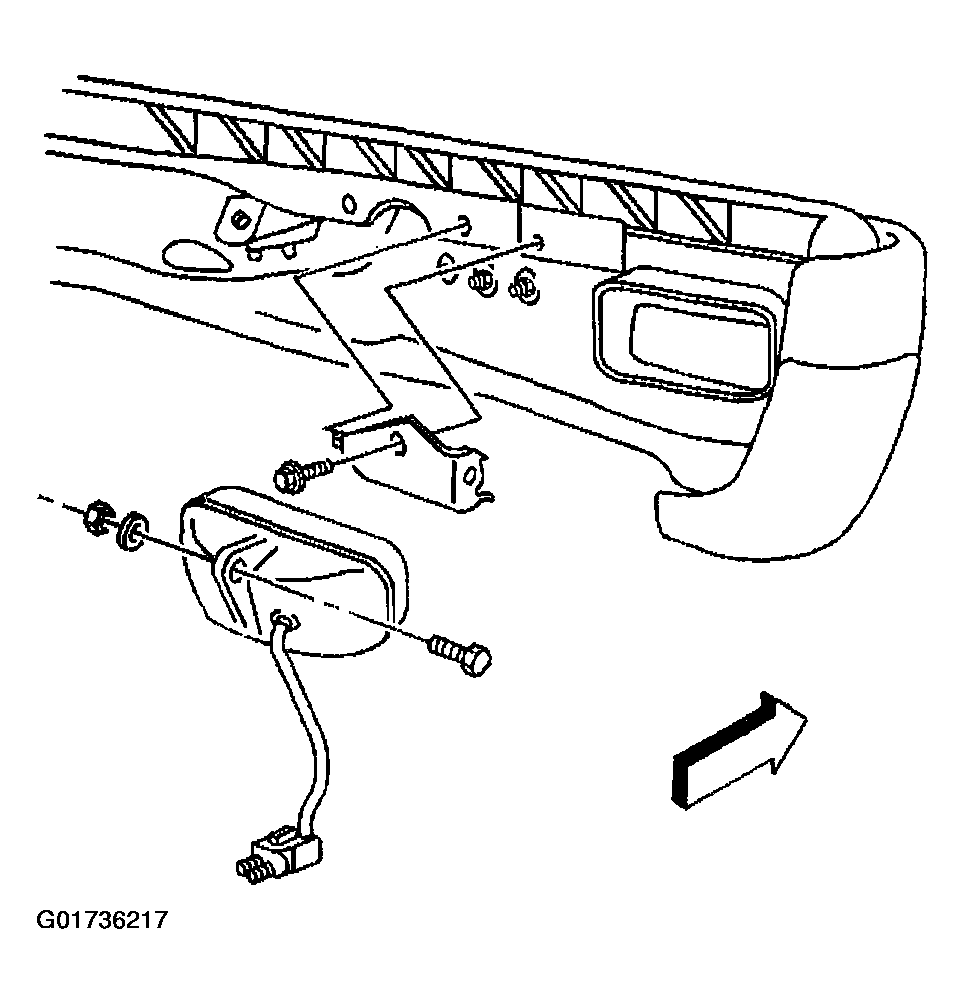

    Fig 2: Removing Lamp Assembly From Bumper
    G01736217Courtesy of GENERAL MOTORS CORP.
