Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. If you removed the fog lamp mounting bracket, install the bracket.
  2. If you removed the fog lamp mounting bracket, install the rivets (2).
  3. Install the fog lamp to the fog lamp mounting bracket.
  4. Install the fog lamp adjuster bolt and the spring (4) to the adjuster nut.
  5. Install the push pin retainers (1) that attach the fog lamp to the mounting bracket (3).
  6. Connect the electrical connector to the front fog lamp.
  7. Verify that the fog lamp meet the aiming specifications. Refer to Fog Lamp Aiming Procedure (Luxury Y91) .

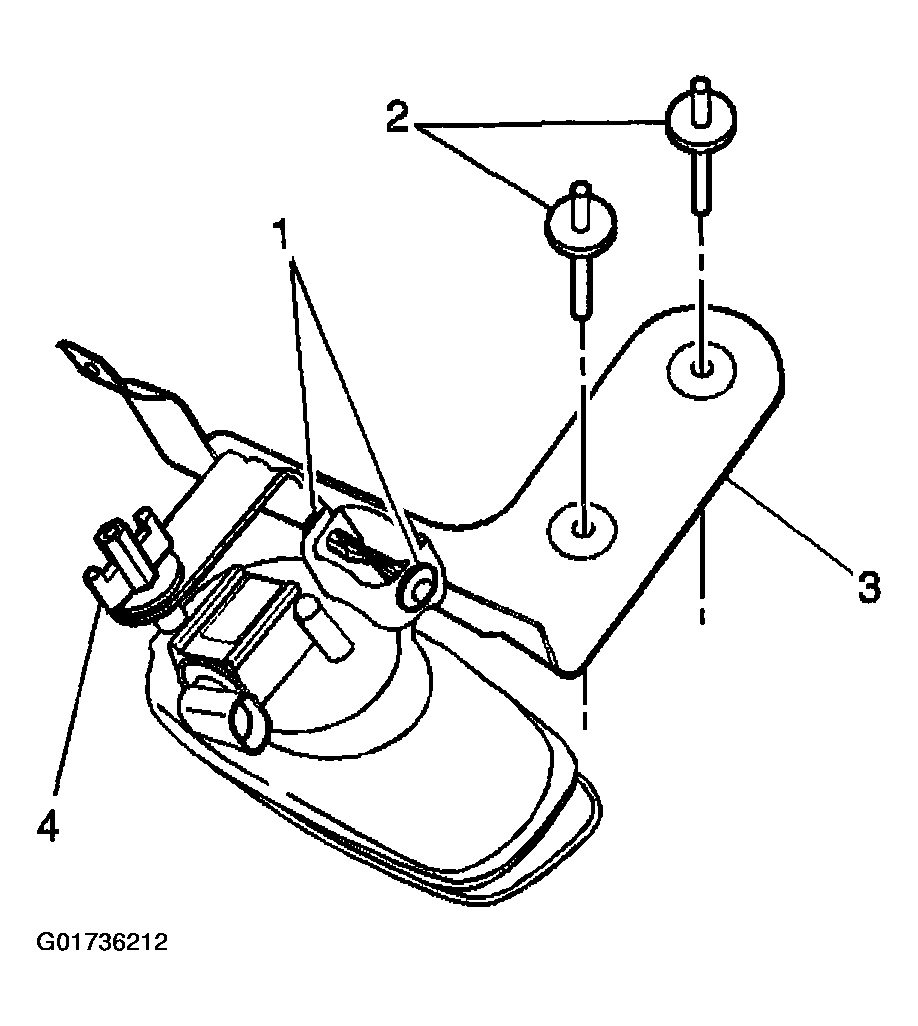

    Fig 1: Installing Push Pin Retainers, Fog Lamp Adjuster Bolt & Spring
    G01736212Courtesy of GENERAL MOTORS CORP.
