Replacement Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Turn off the lamp switch and allow the bulb to cool before changing the bulb.
Leave the lamp switch OFF until the bulb change is complete.
Always wear eye protection when changing a halogen bulb.
Handle the bulb only by its base. Avoid touching the glass.
Keep dirt and moisture off the bulb.
Properly dispose of the used bulb.
Keep halogen bulbs out of the reach of children.

Disconnect the electrical connector (2) from the back of the fog lamp bulb (1).

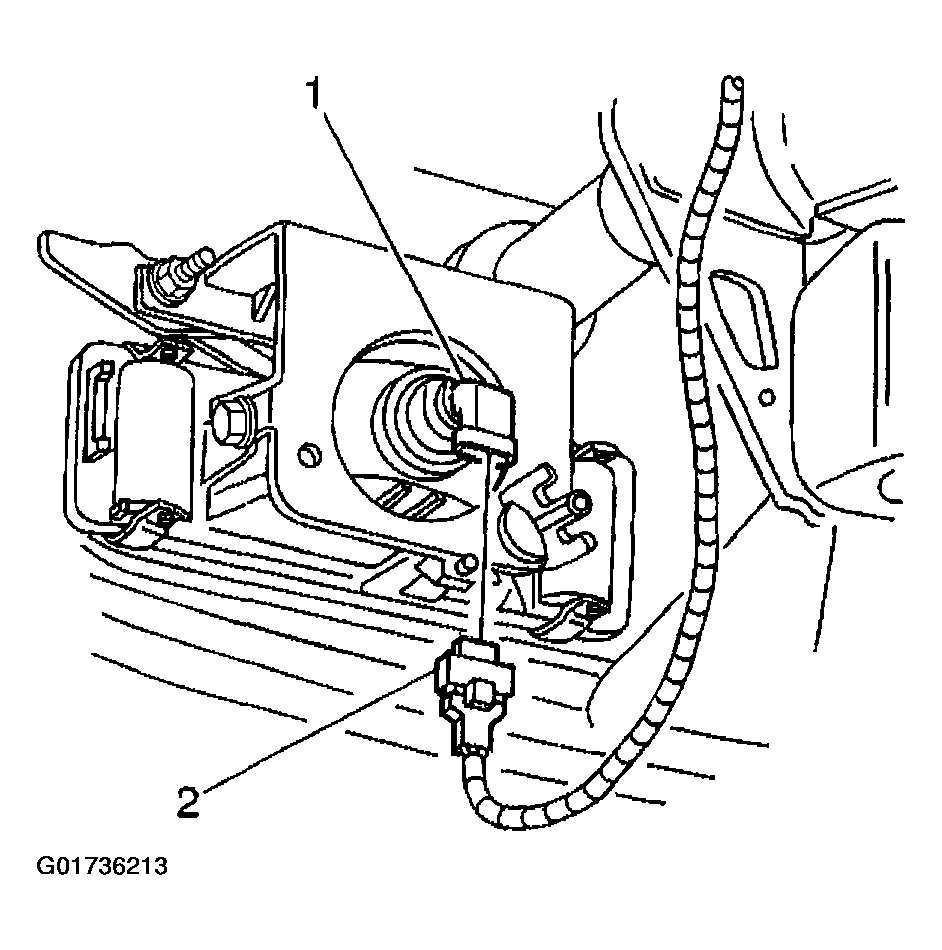

Fig 1: Disconnecting Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the fog lamp bulb (2) from the lamp housing (1) by turning counterclockwise 45 degrees.

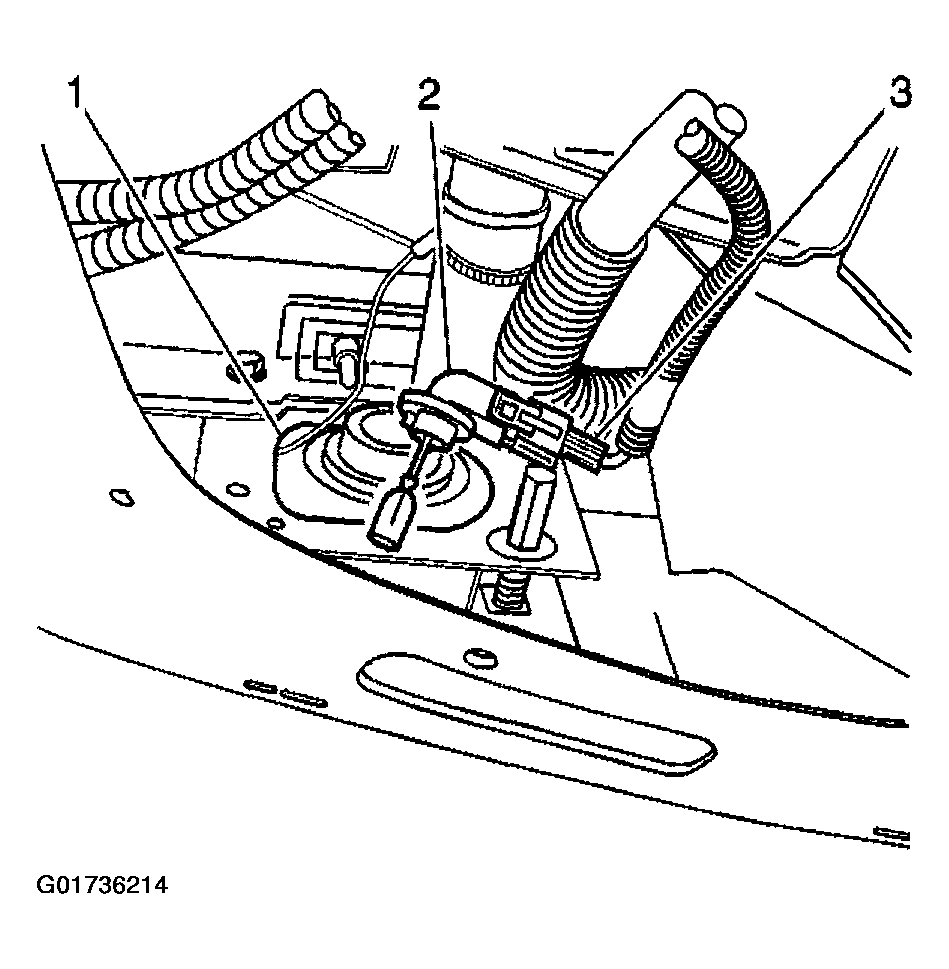

Fig 2: Removing Fog Lamp Bulb From Lamp Housing
Courtesy of GENERAL MOTORS CORP.
