Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry on the dome lamp lens (3) with a suitable flat-bladed tool in order to disengage the retaining tabs from the dome lamp housing (1).
  2. Remove the bulb (2) from the socket.
    Fig 1: Removing Bulb From Socket
    G01736181Courtesy of GENERAL MOTORS CORP.
  3. Gently pry on the map lamp lens with a suitable flat-bladed tool in order to disengage the retaining tabs from the dome lamp housing (1).
  4. Remove the map lamp lens (3) from the dome lamp housing (1).
  5. Remove the bulb (2) from the socket.

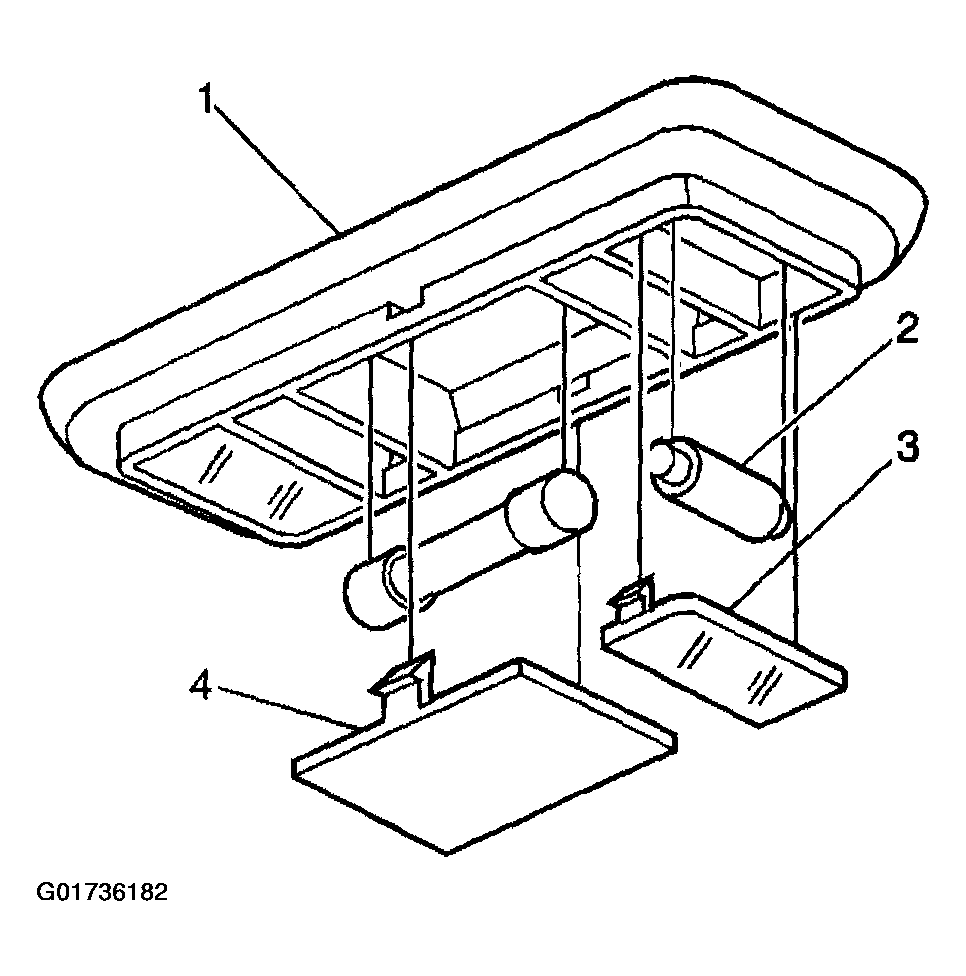

    Fig 2: Removing Map Lamp Lens & Bulb
    G01736182Courtesy of GENERAL MOTORS CORP.
