Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the dome lamp bulb (2) into the socket.
  2. Install the dome lamp lens (3) to the dome lamp housing (1).

    Press on the dome lamp lens in order to engage the retaining tabs.

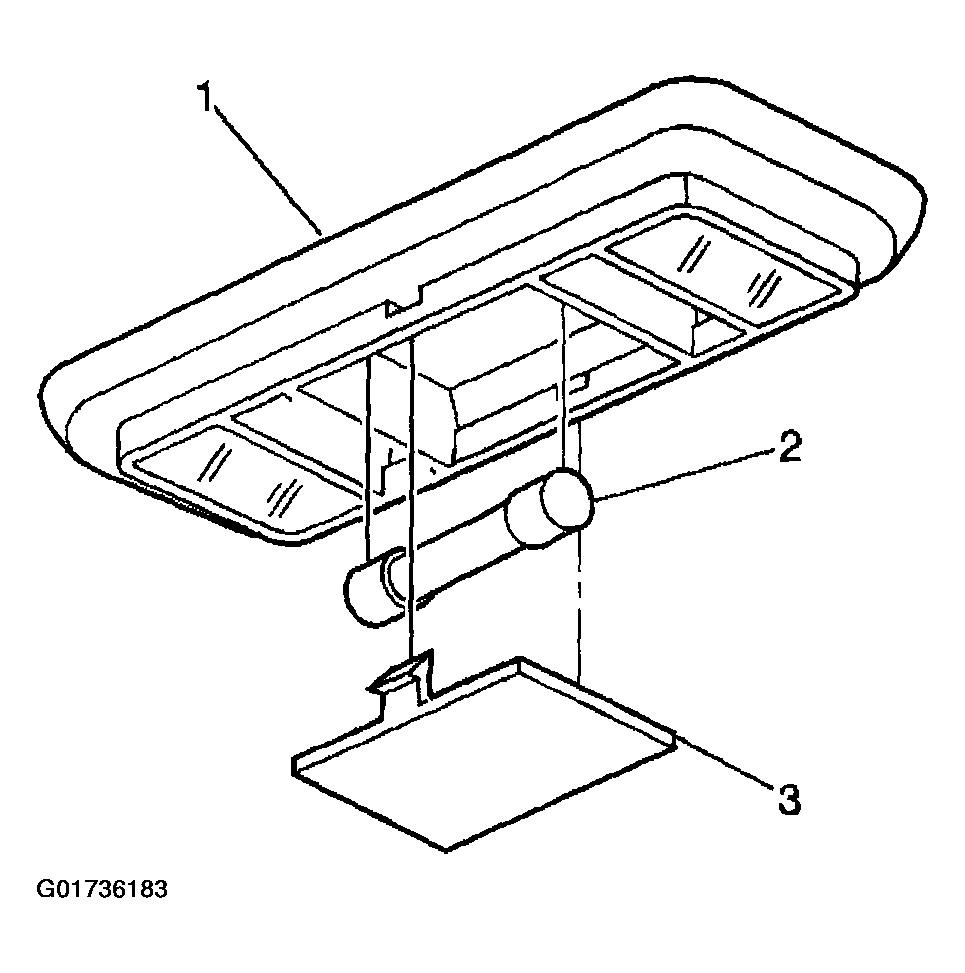

    Fig 1: Installing Dome Lamp Bulb & Dome Lamp Lens
    G01736183Courtesy of GENERAL MOTORS CORP.
  3. Connect the map lamp bulb (2) into the socket.
  4. Install the map lamp lens (3) to the dome lamp housing (1).

    Press on the map lamp lens in order to engage the retaining tabs.

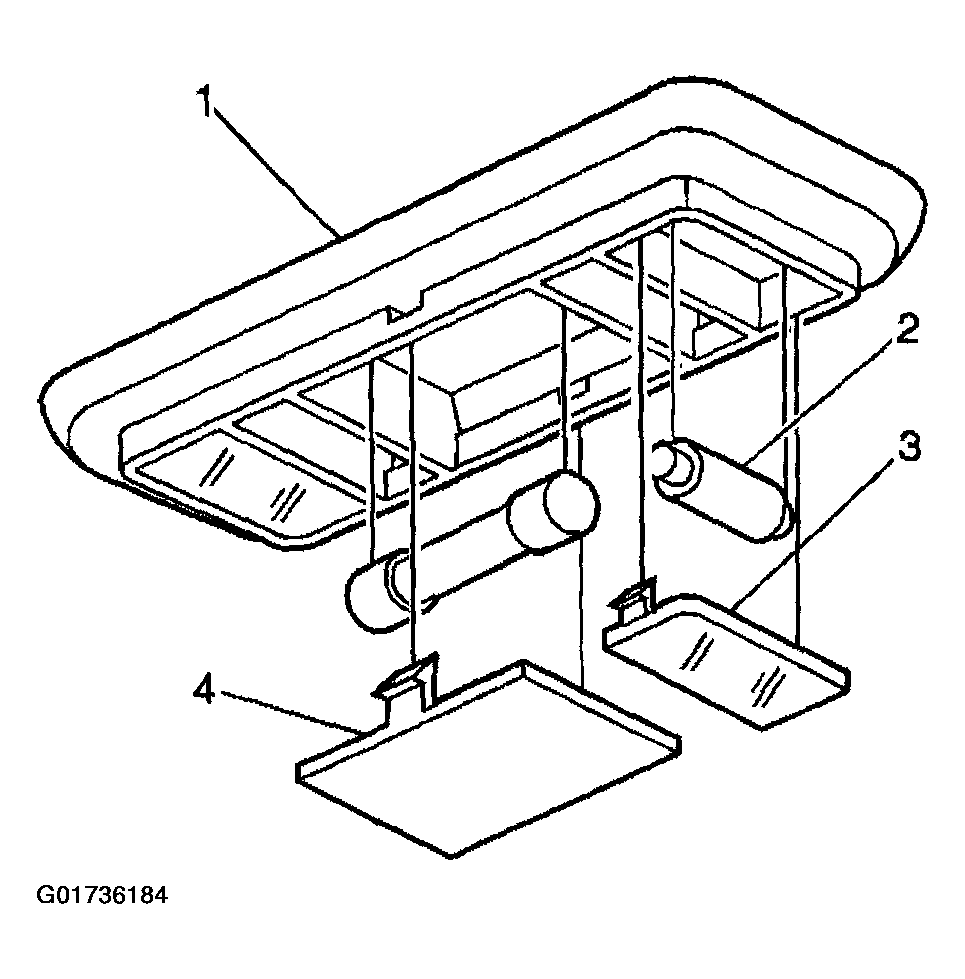

Fig 2: Connecting Map Lamp Bulb & Map Lamp Lens
G01736184Courtesy of GENERAL MOTORS CORP.
