Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry on the dome lamp lens (4) in order to disengage the retaining tabs from the dome lamp housing (2).
  2. Remove the bulb (5) from the socket.
  3. Remove the screws (3) that retain the dome lamp assembly to the vehicle.
  4. Disconnect the electrical connector from the dome lamp.
  5. Remove the dome lamp assembly (6) from the vehicle.

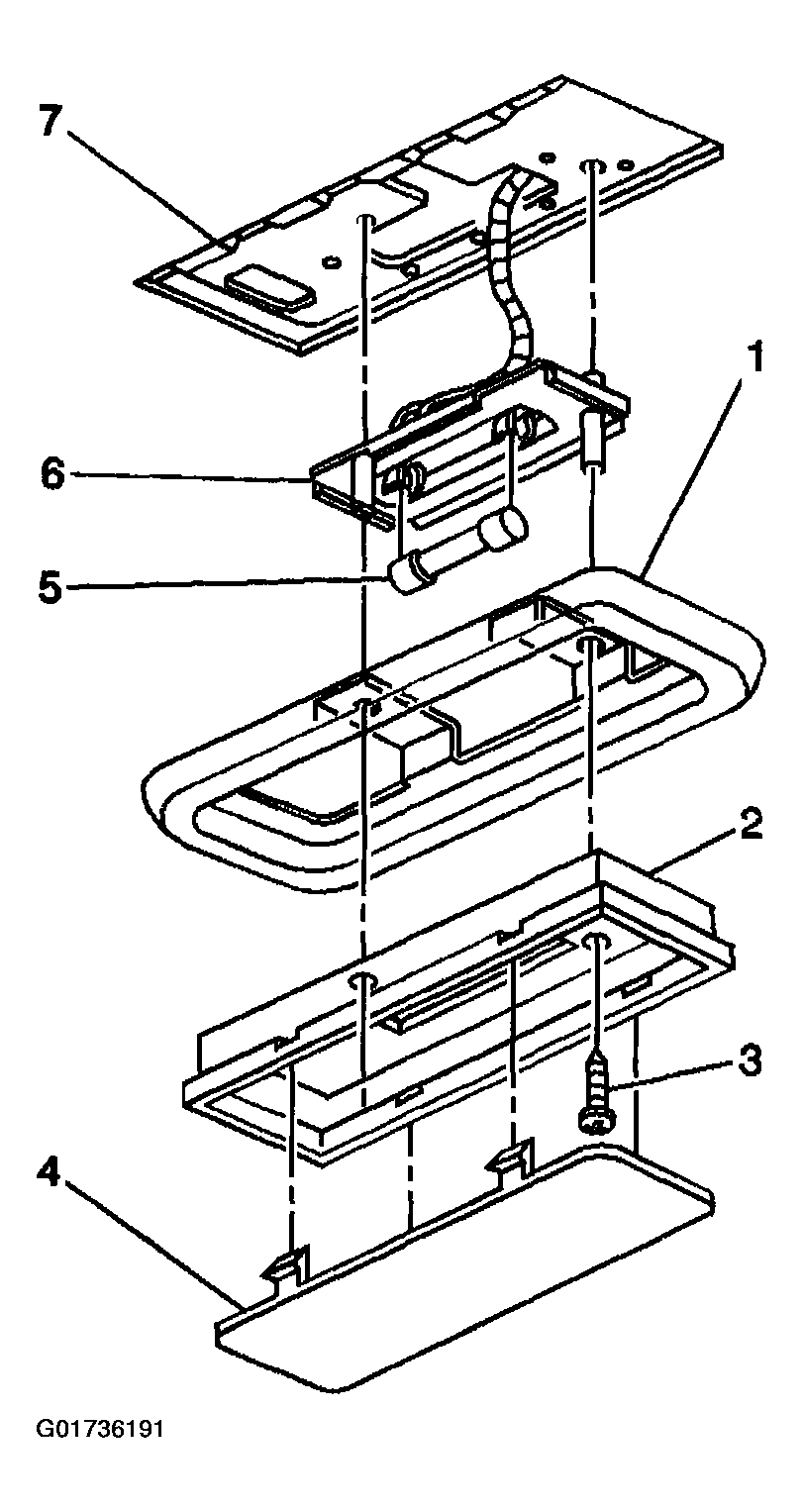

    Fig 1: Removing Dome Lamp Components
    G01736191Courtesy of GENERAL MOTORS CORP.
