Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently push the lens assembly in while turning counterclockwise.
  2. Pull the bulb straight out of the socket.

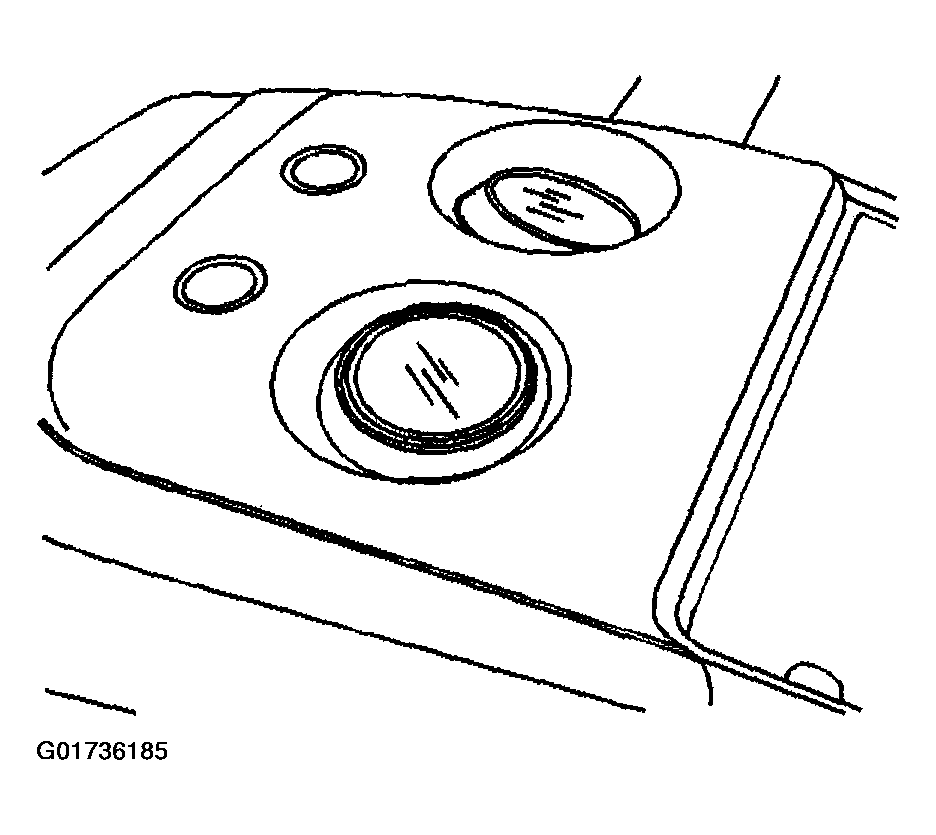

    Fig 1: Pulling Bulb Out Of Socket
    G01736185Courtesy of GENERAL MOTORS CORP.
