Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Gently push the lens assembly in while turning clockwise.

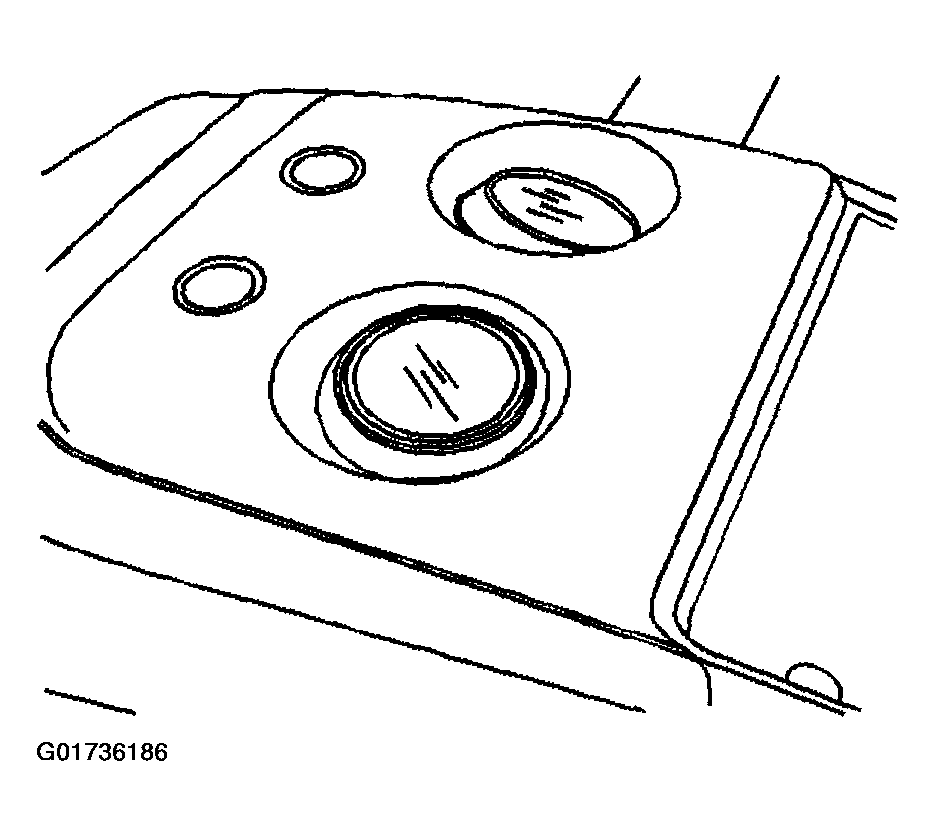

    Fig 1: Installing Bulb To Socket
    G01736186Courtesy of GENERAL MOTORS CORP.
