High Beam Indicator Inoperative

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

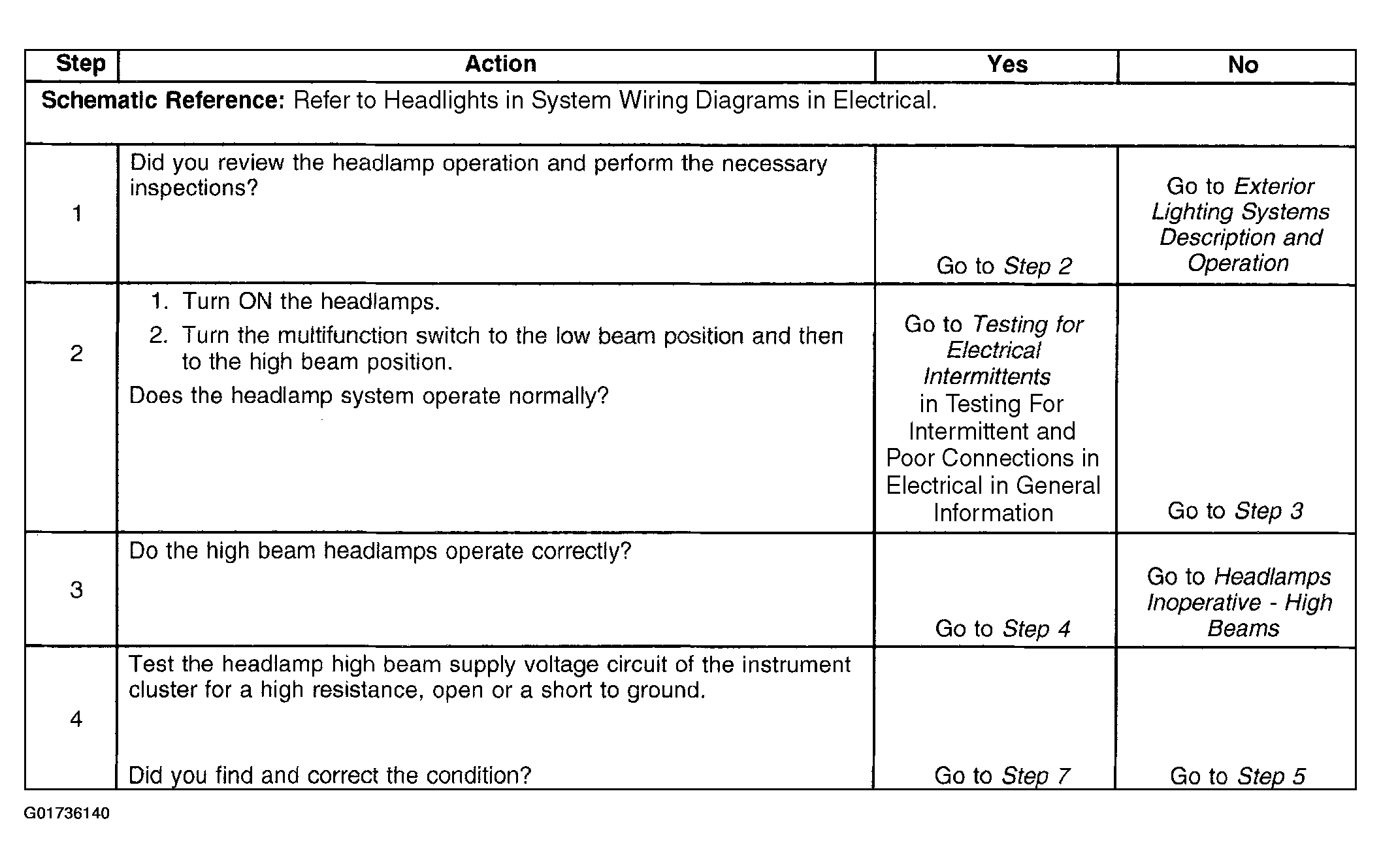

Fig 1: High Beam Indicator Inoperative (1 Of 2)
G01736140Courtesy of GENERAL MOTORS CORP.

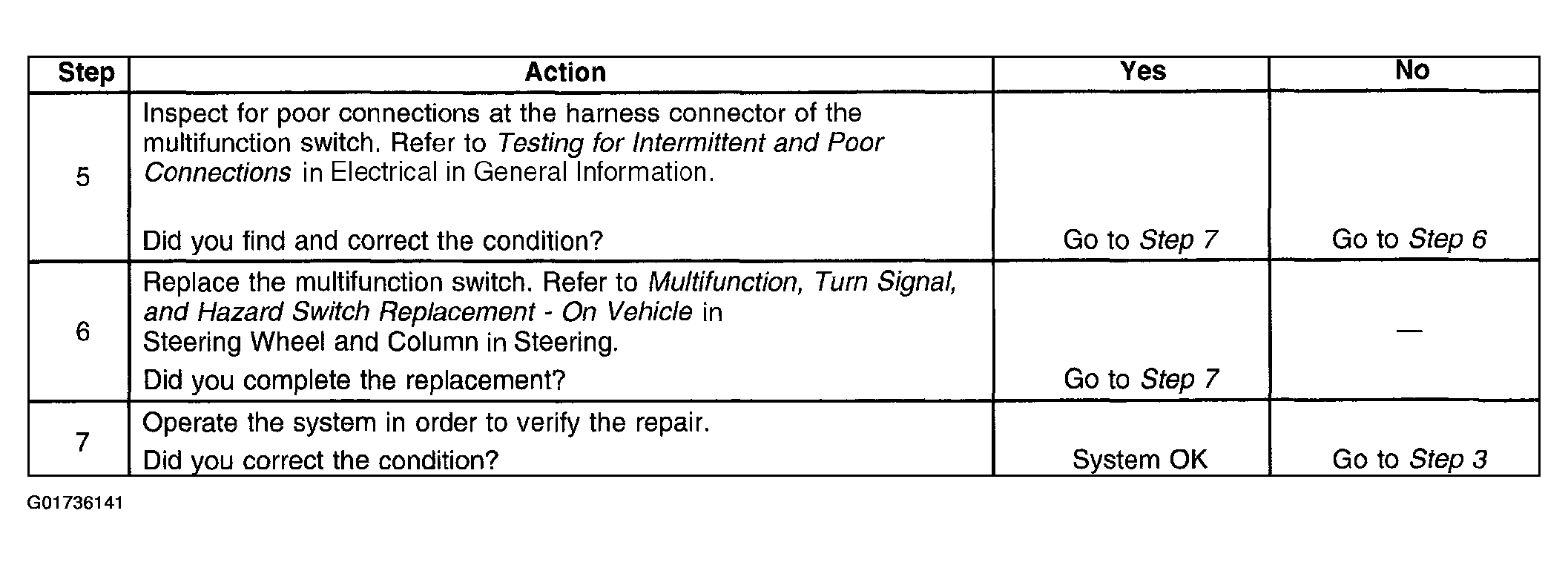

Fig 2: High Beam Indicator Inoperative (2 Of 2)
G01736141Courtesy of GENERAL MOTORS CORP.
