Test Description

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

5. Damage may occur to the EBCM, the ABS indicator failure control circuit and the ABS indicator lamp relay if the ABS indicator failure control circuit is shorted to voltage.

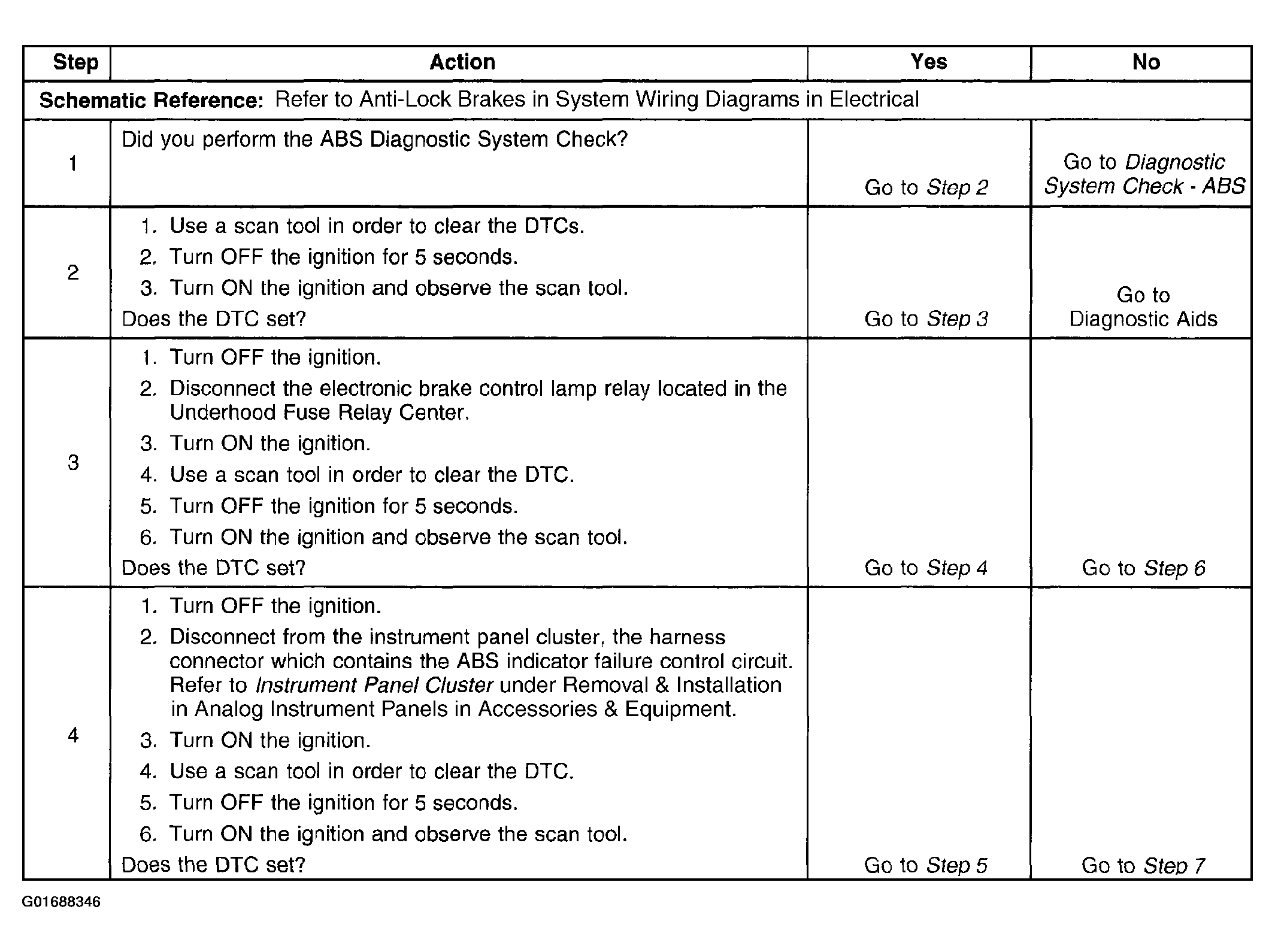

Fig 1: DTC C0286 (Export) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

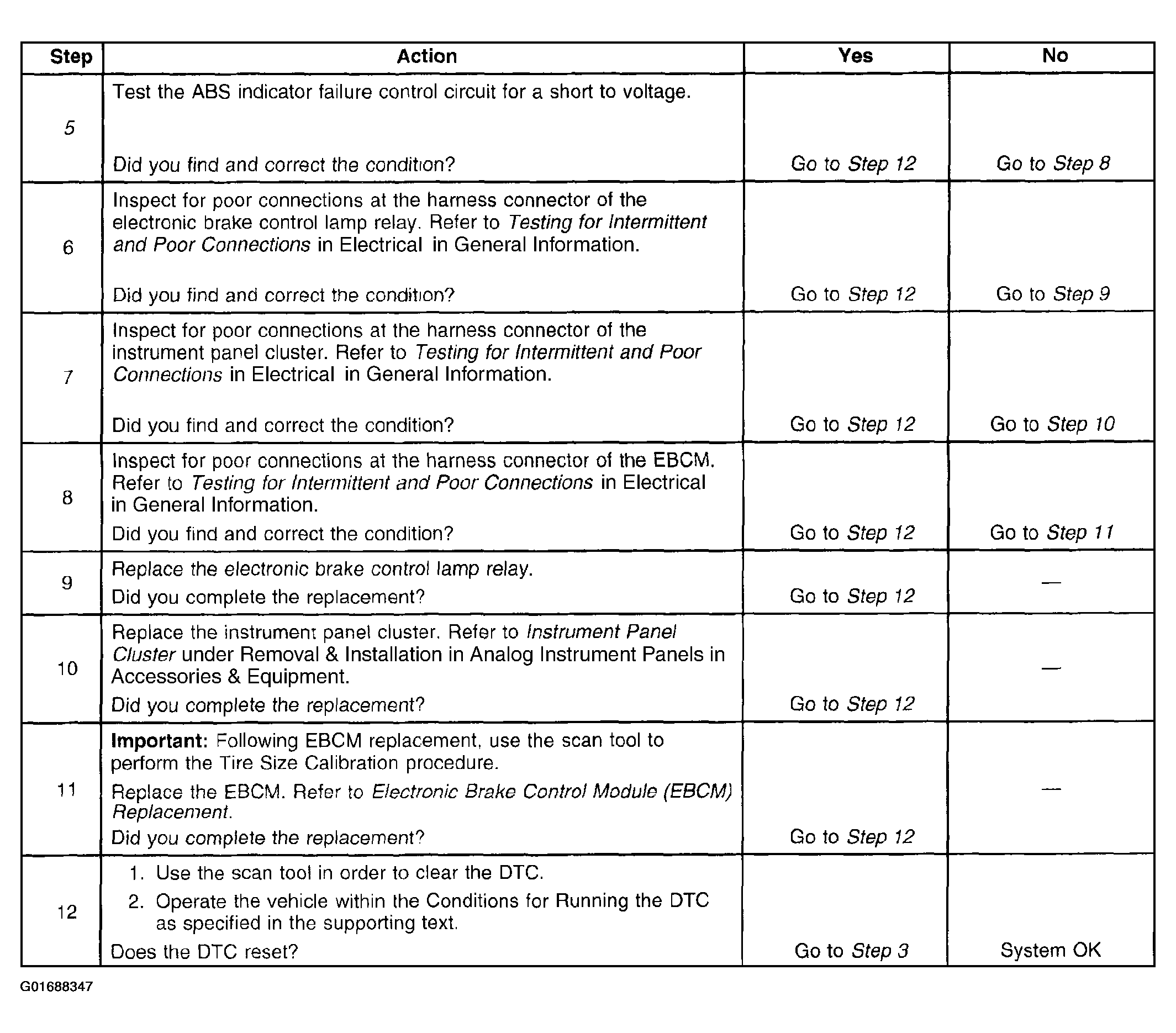

Fig 2: DTC C0286 (Export) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
