Test Description

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step simulates the EBCM commanding the ABS indicator ON.
  2. 4. This step tests the ABS indicator circuitry by substituting the IPC and the ABS indicator lamp with a test lamp.

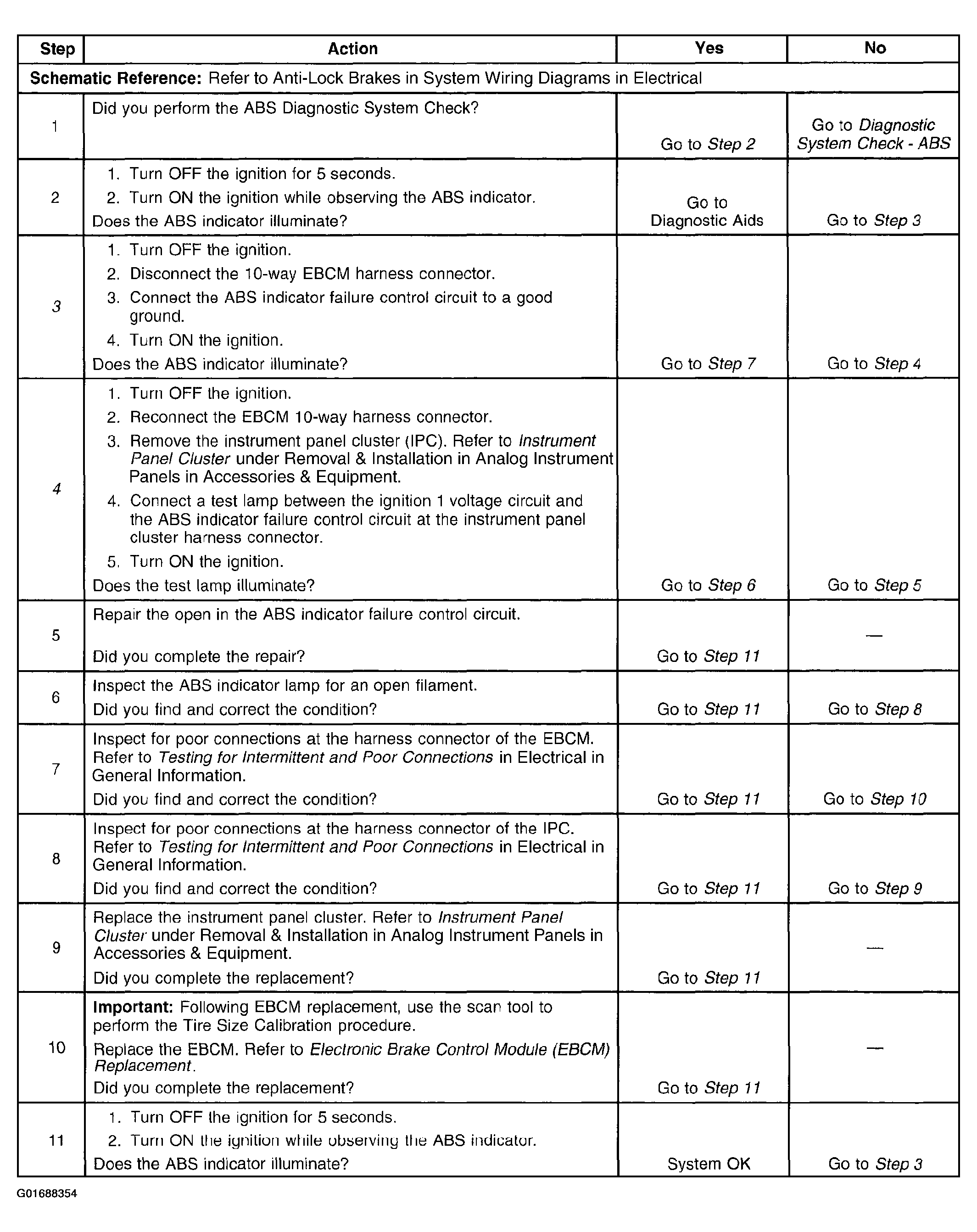

Fig 1: ABS Indicator Inoperative
G01688354Courtesy of GENERAL MOTORS CORP.
