Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust manifold.
Install the oil level indicator tube.

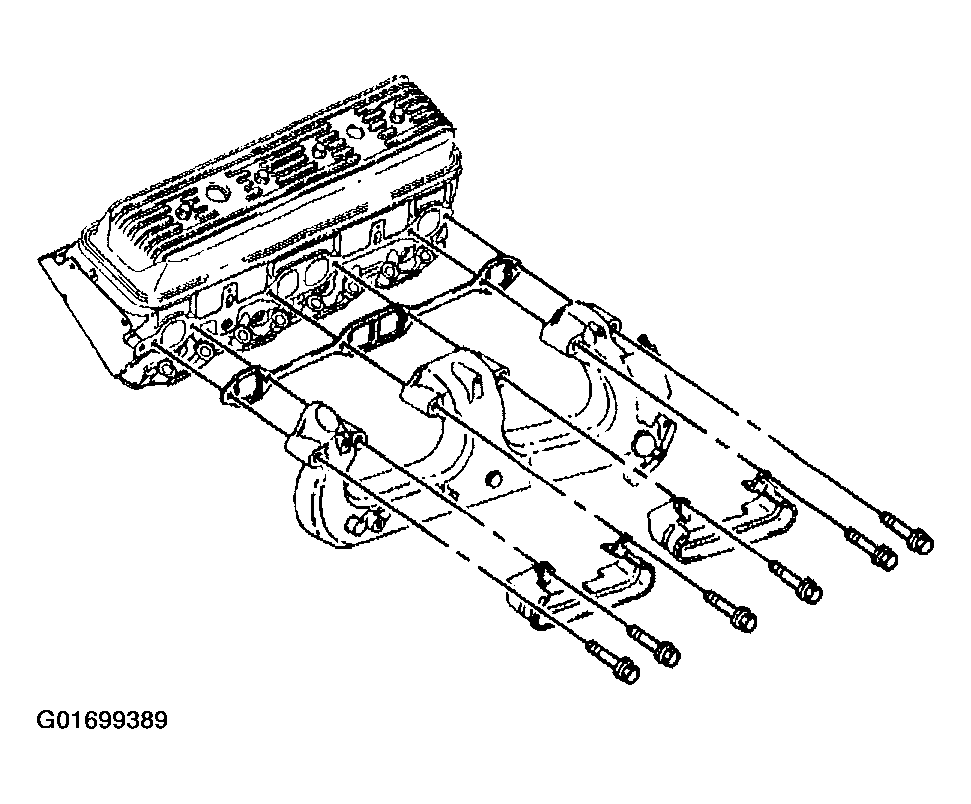

Fig 1: Installing Exhaust Manifold
Courtesy of GENERAL MOTORS CORP.
Install the exhaust pipe to the exhaust manifold.
Install the air cleaner assembly.
Install the engine cover.

Fig 2: Installing Exhaust Pipe
Courtesy of GENERAL MOTORS CORP.
