Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the right front tire. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the right fender wheelhouse extension (1).

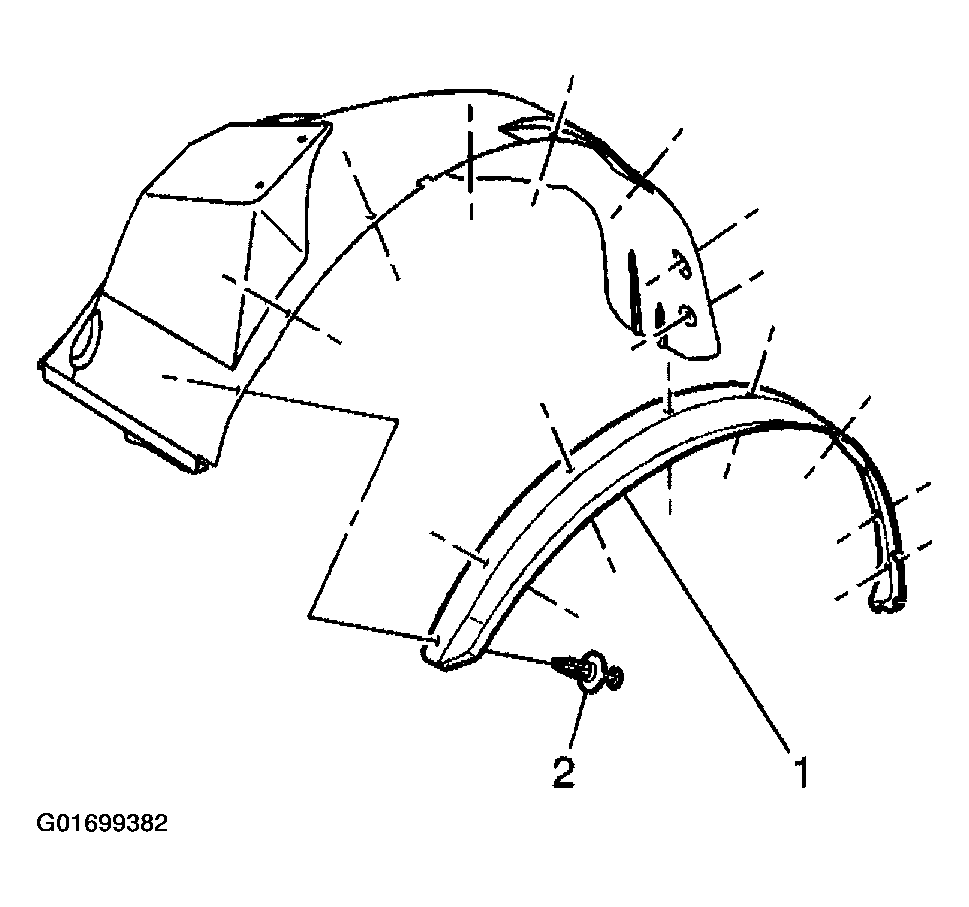

    Fig 1: Removing Right Fender Wheelhouse Extension
    G01699382Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the spark plug wires from the spark plugs.
  5. Remove the bolts and the spark plug wire support.
  6. Remove the spark plugs.
  7. Remove the starter.
  8. Remove the catalytic converter assembly.
  9. Remove the AIR pipe from the exhaust manifold, if equipped.

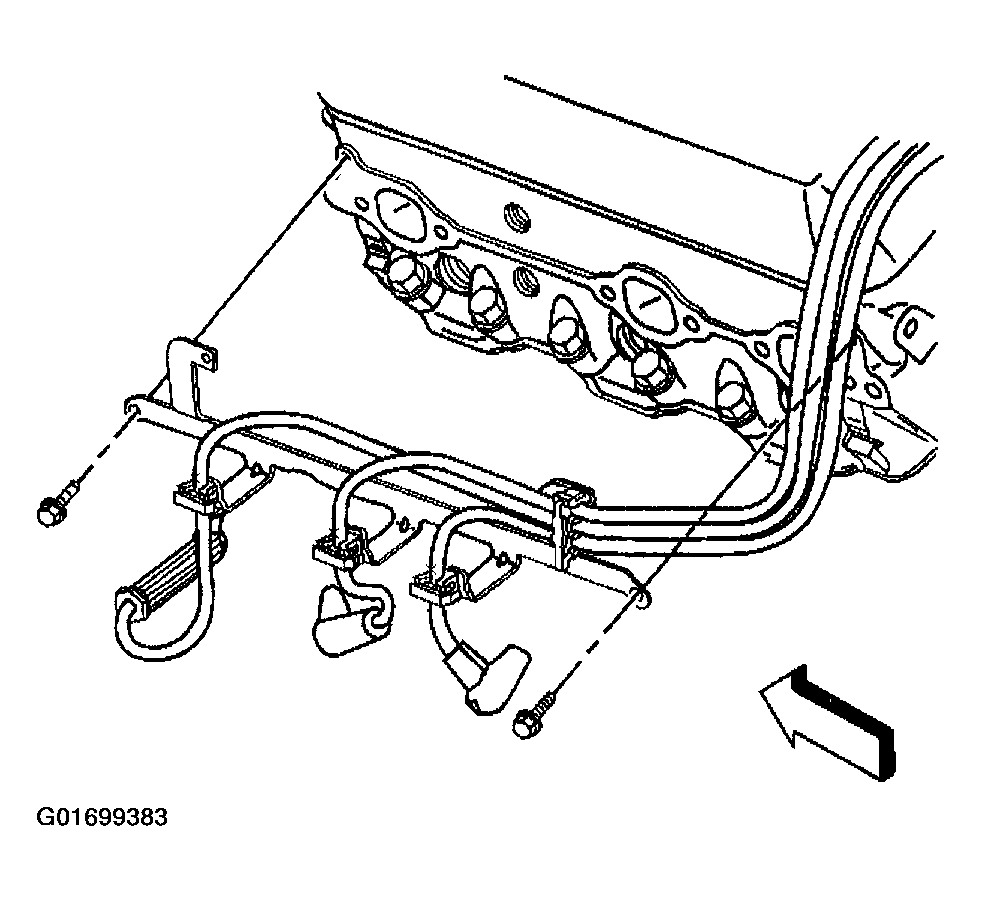

    Fig 2: Removing Bolts, Spark Plug Wire Support
    G01699383Courtesy of GENERAL MOTORS CORP.
  10. Remove the exhaust manifold bolts through the wheelhouse.
  11. Remove the exhaust manifold with the exhaust manifold gaskets and the spark plug wire shields from the engine.
  12. Clean all gasket surfaces.

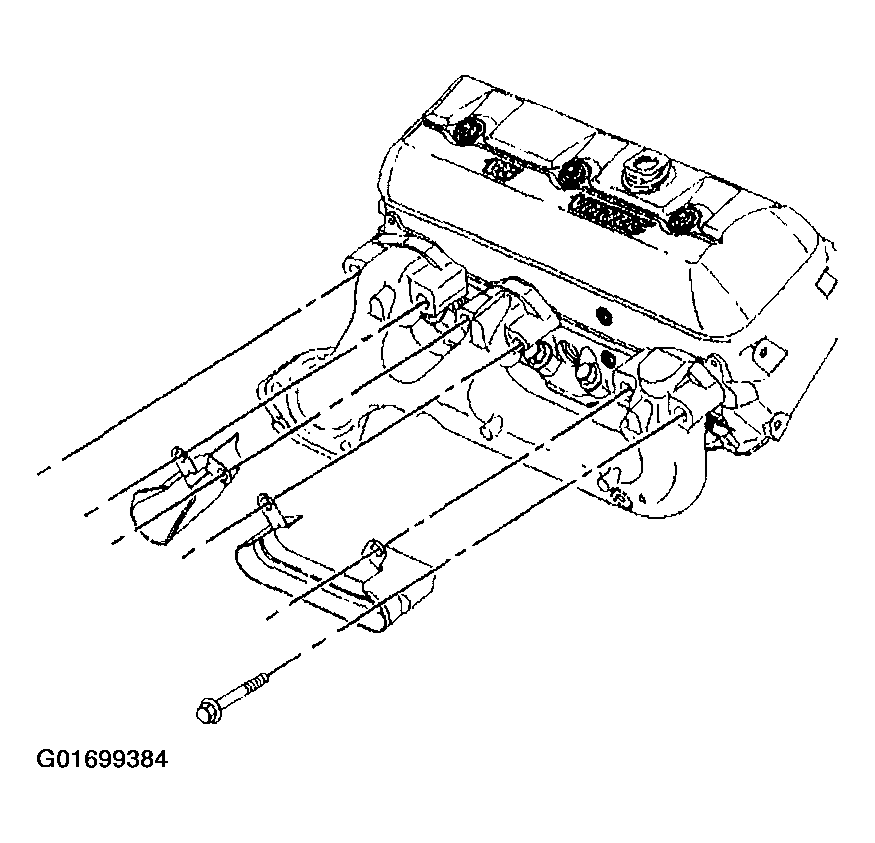

    Fig 3: Removing Exhaust Manifold Bolts & Exhaust Manifold
    G01699384Courtesy of GENERAL MOTORS CORP.
