Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust pipe from the exhaust manifold.
  2. Remove the engine cover.
  3. Disconnect the EGR valve pipe from the exhaust manifold.
  4. Remove the spark plugs.
  5. Remove the exhaust manifold.
  6. Clean all sealing surfaces.

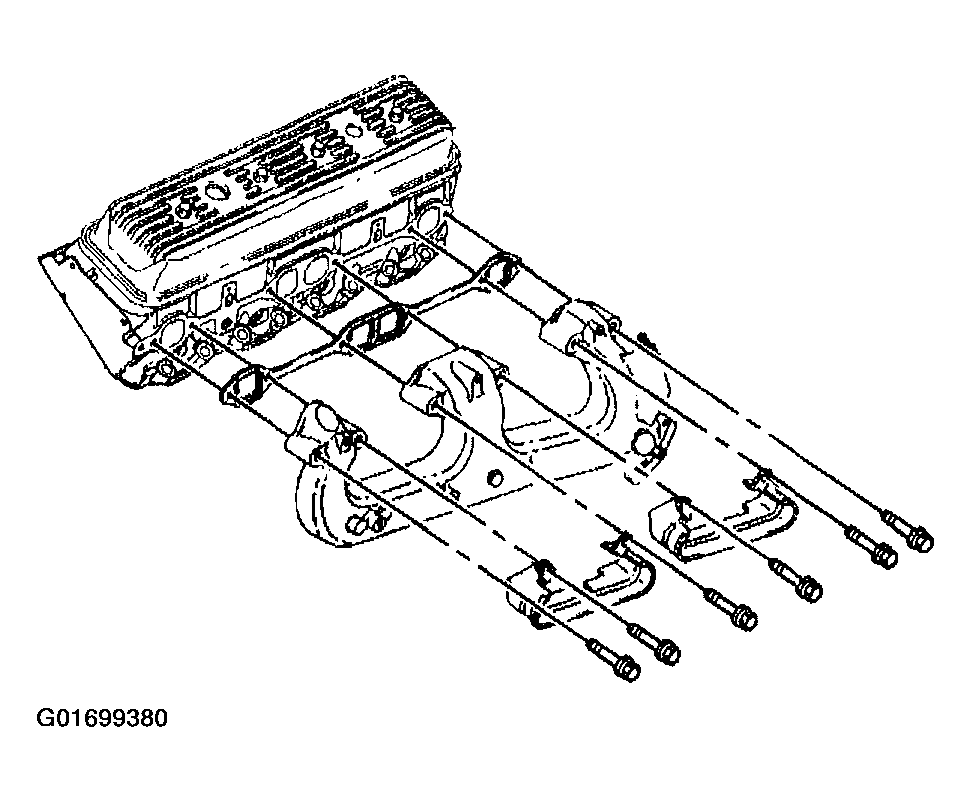

    Fig 1: Removing Exhaust Manifold
    G01699380Courtesy of GENERAL MOTORS CORP.
