Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle with safety stands.
  2. Remove the exhaust system, as necessary.
  3. Remove the bolts retaining the heat shield.
  4. Remove the heat shield.

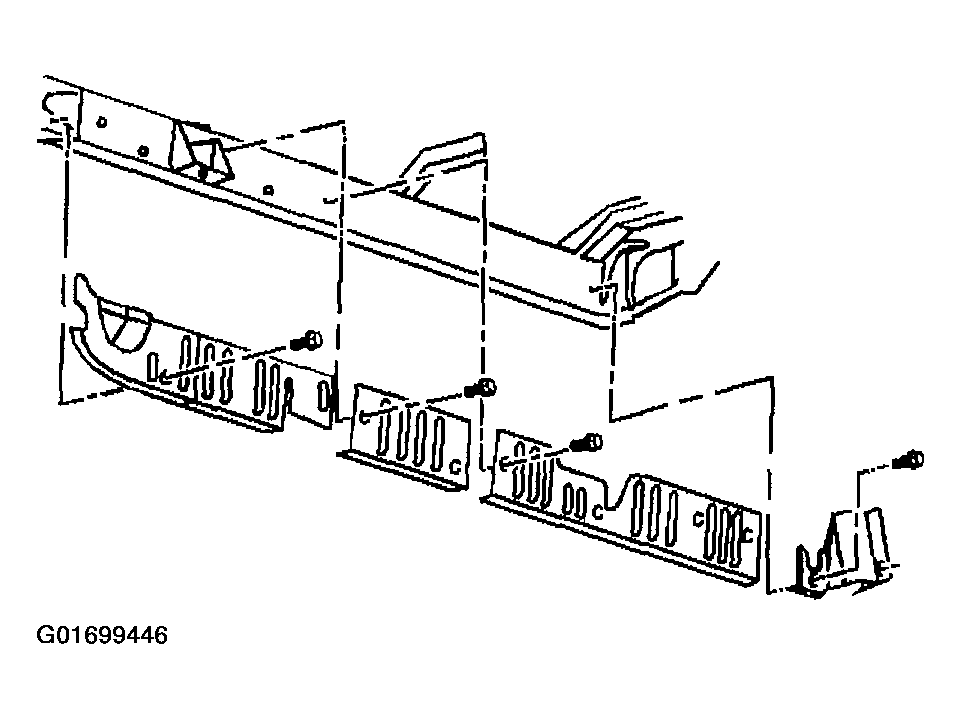

    Fig 1: Removing Exhaust System Heat Shield
    G01699446Courtesy of GENERAL MOTORS CORP.
