Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
    WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
    WARNING: Always wear protective goggles and gloves when removing exhaust parts as falling rust and sharp edges from worn exhaust components could result in serious personal injury.

    Important:  Due to the many variables in engines and chassis arrangements, the vehicle may have exhaust hangers located at other locations than shown.

  2. Using a suitable pry bar, remove the applicable hanger pin attached to the pipe from the exhaust hanger insulator.

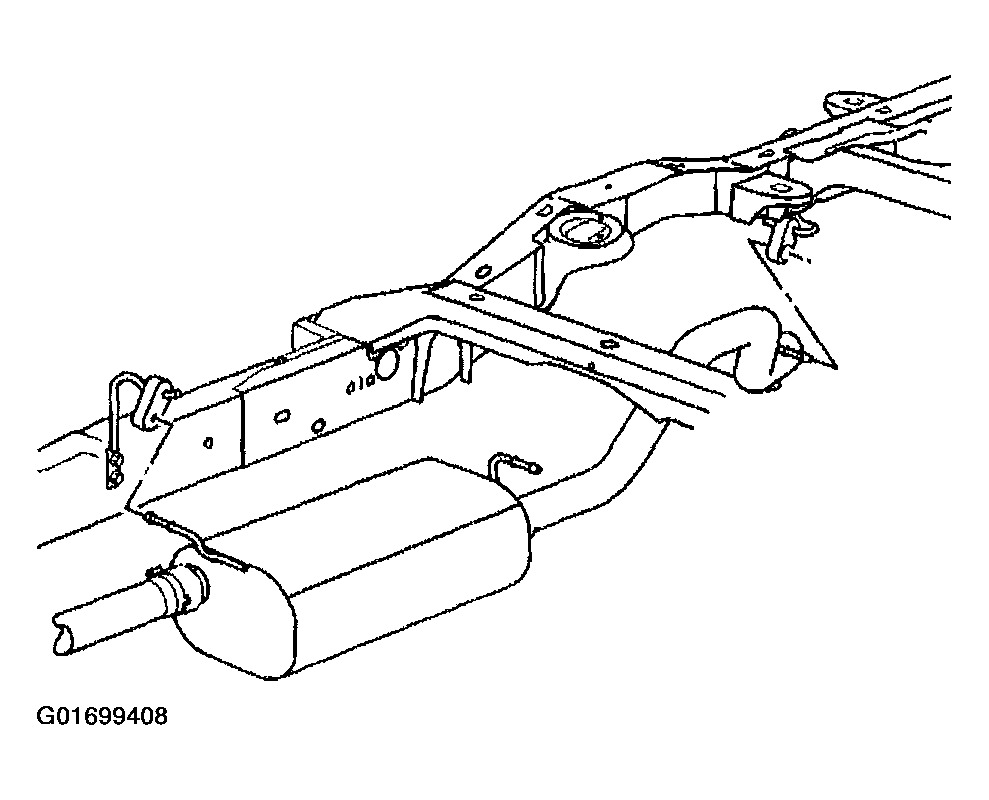

    Fig 1: Removing Applicable Hanger Pin Attached To Pipe From Exhaust Hanger Insulator
    G01699408Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust hanger nut.
  4. Remove the hanger from the frame.

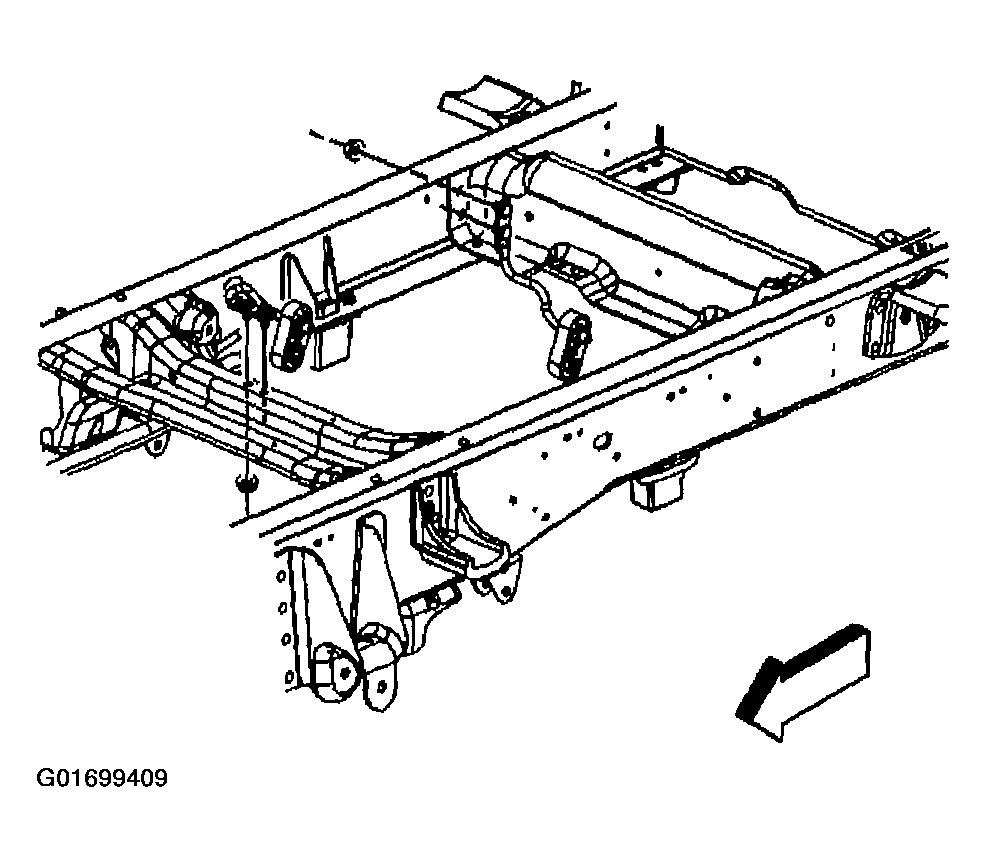

    Fig 2: Removing Exhaust Hanger Nut & Hanger
    G01699409Courtesy of GENERAL MOTORS CORP.
