Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust muffler rear hanger brackets.

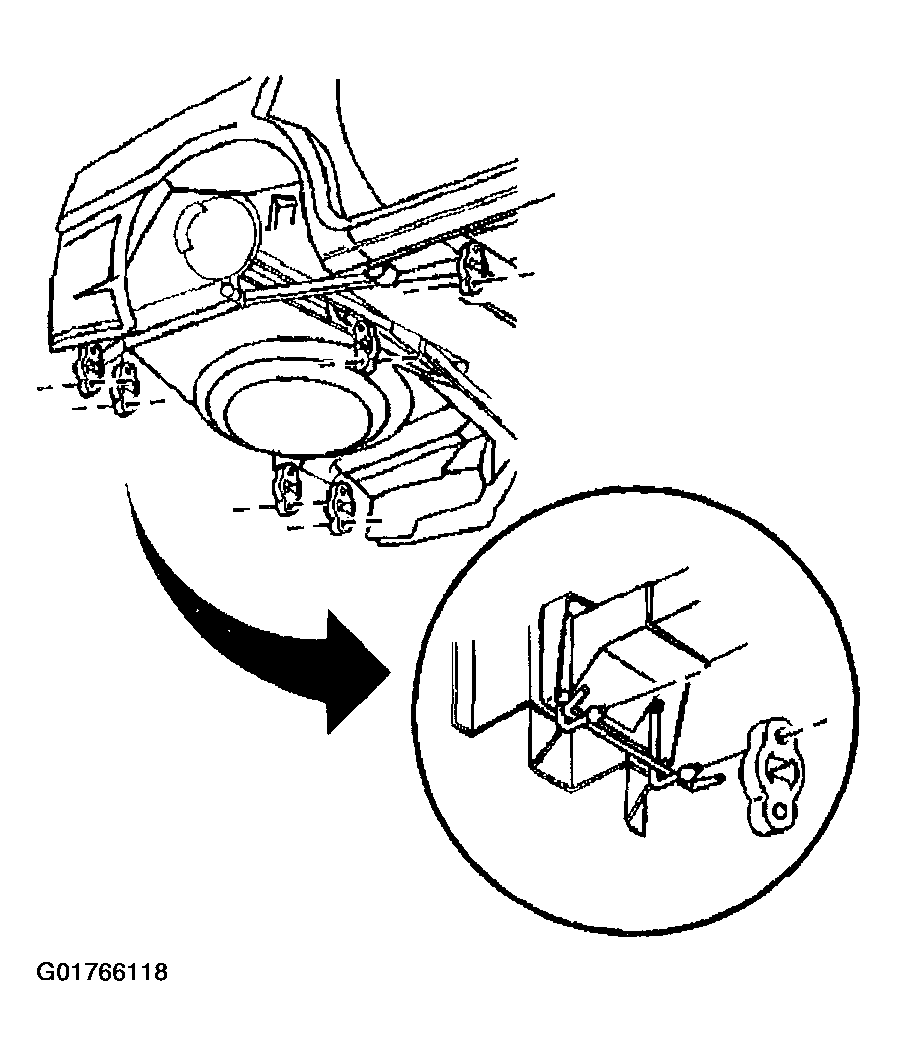

    2. Fig 1: Exhaust Muffler Rear Hanger Brackets
    G01766118Courtesy of GENERAL MOTORS CORP.
  2. Install the rear bumper impact bar bolts.

    Tighten

    Tighten the bolts to 25 N.m (18.4 lb ft).

  3. Install the exhaust pipe rear hanger insulators to the muffler and the rear hanger bracket.
  4. Install the exhaust pipe hanger bracket.
  5. Install the exhaust pipe hanger bolt.

    Tighten

    Tighten the bolt to 25 N.m (18.4 lb ft).

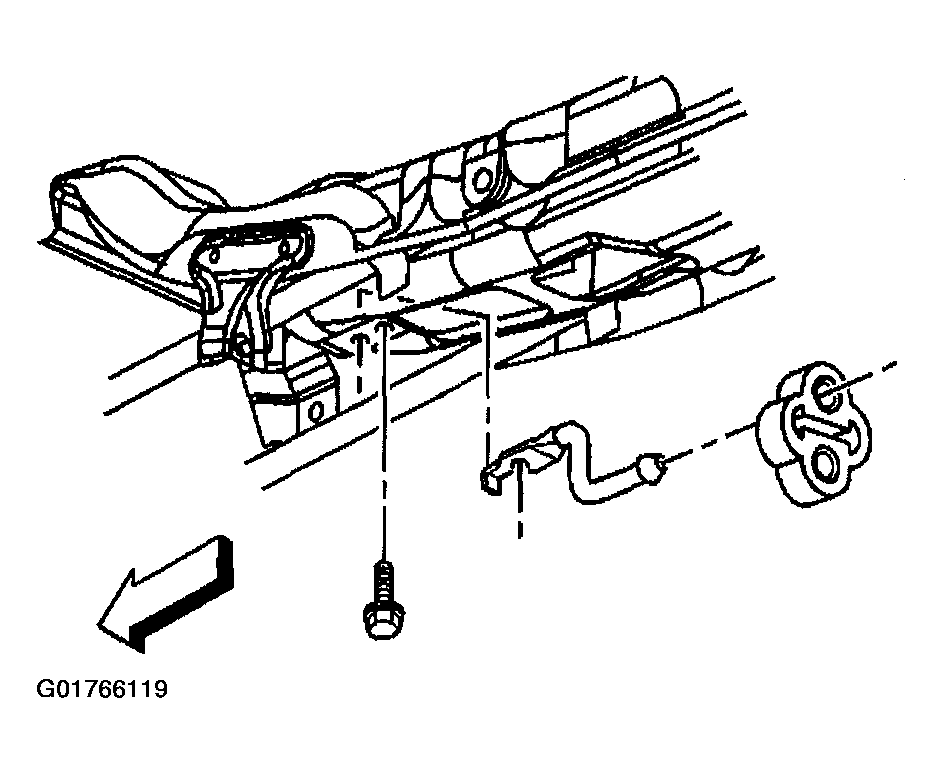

    Fig 2: Exhaust Pipe Hanger Bracket And Bolt
    G01766119Courtesy of GENERAL MOTORS CORP.
  6. Install the exhaust pipe rear hanger insulator to the exhaust pipe hanger bracket.
  7. Remove the support from the exhaust system.
  8. Inspect the exhaust system for underbody contact.
  9. Lower the vehicle.
