Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36) or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67) .

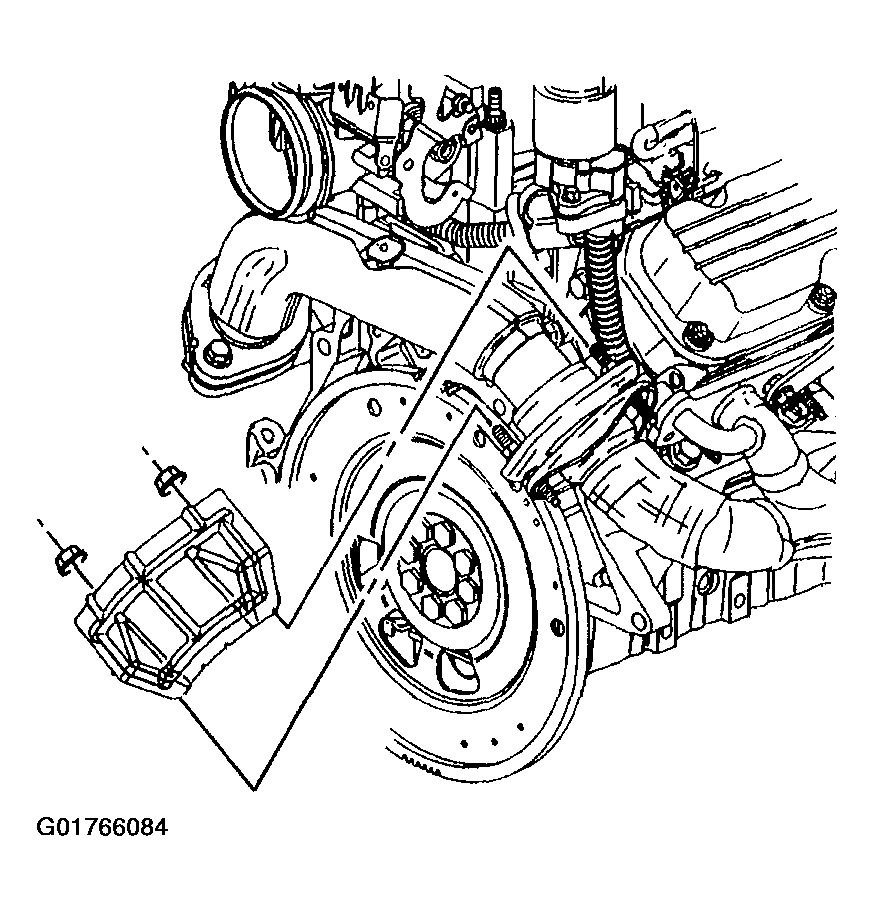

    2. Fig 1: Fuel Injector Sight Shield
    G01766084Courtesy of GENERAL MOTORS CORP.
  2. Remove the air cleaner intake duct.
  3. Remove the exhaust crossover heat shield nuts.
  4. Remove the exhaust crossover heat shield.
  5. Remove the exhaust crossover pipe bolts.
  6. Remove the exhaust crossover pipe.
  7. Remove the exhaust crossover pipe seal.

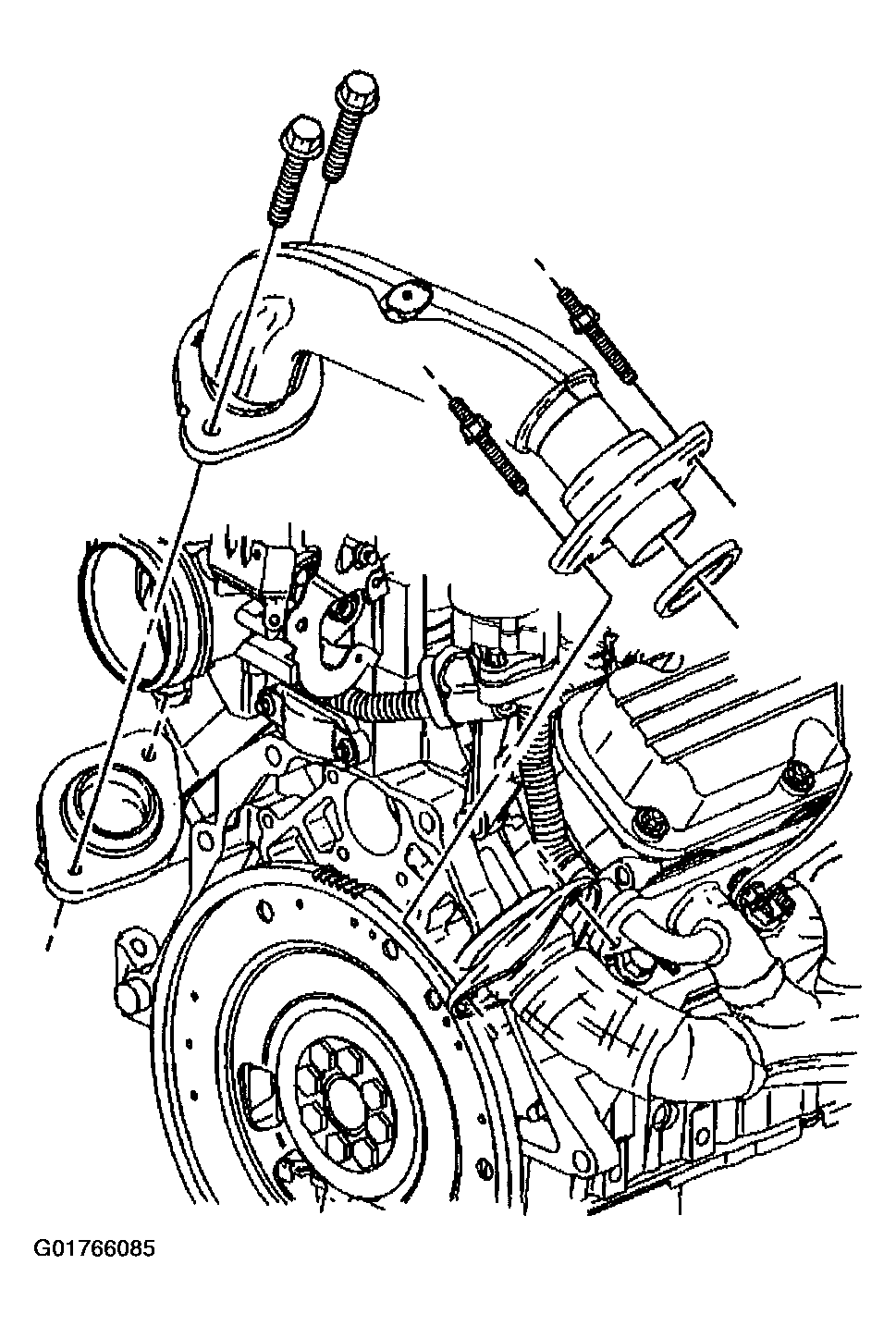

    Fig 2: Exhaust Crossover Pipe
    G01766085Courtesy of GENERAL MOTORS CORP.
