Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner intake duct.
  2. Remove the exhaust crossover heat shield bolts.
  3. Remove the exhaust crossover heat shield.

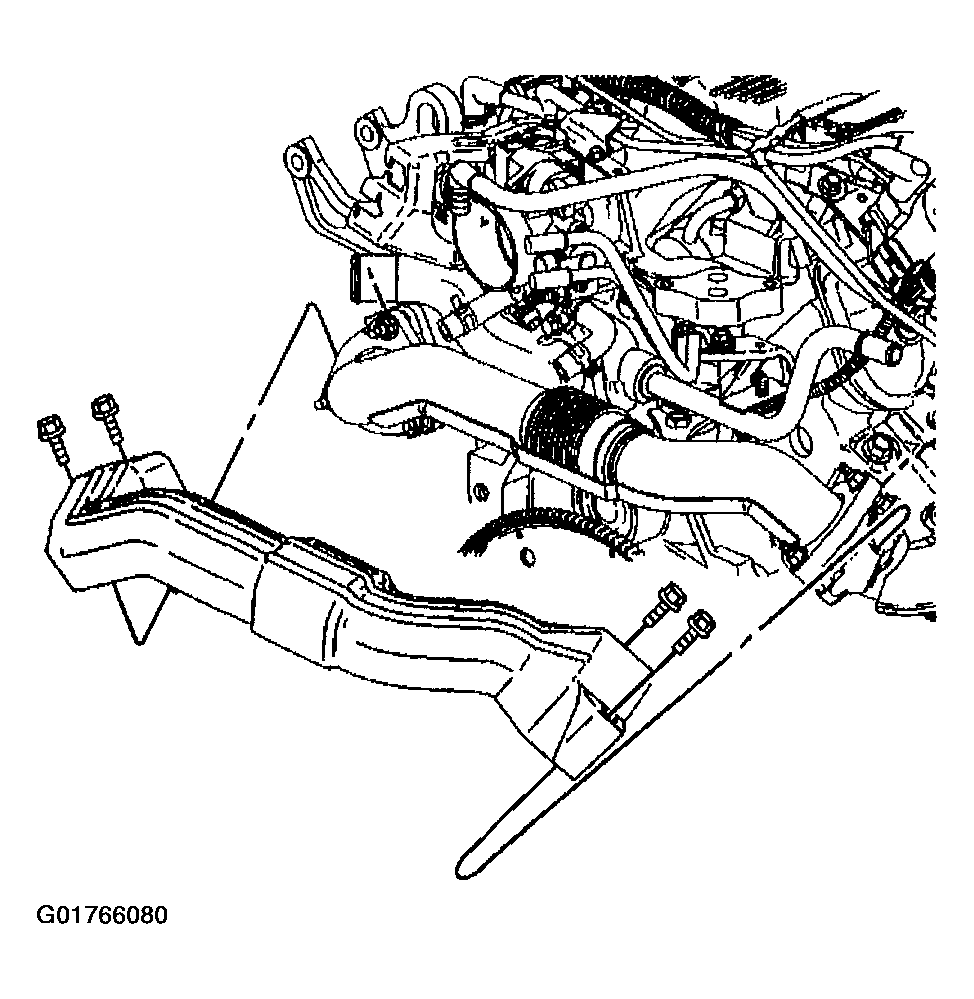

    Fig 1: Exhaust Crossover Pipe Heat Shield
    G01766080Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust crossover pipe bolts.
  5. Remove the exhaust crossover pipe.

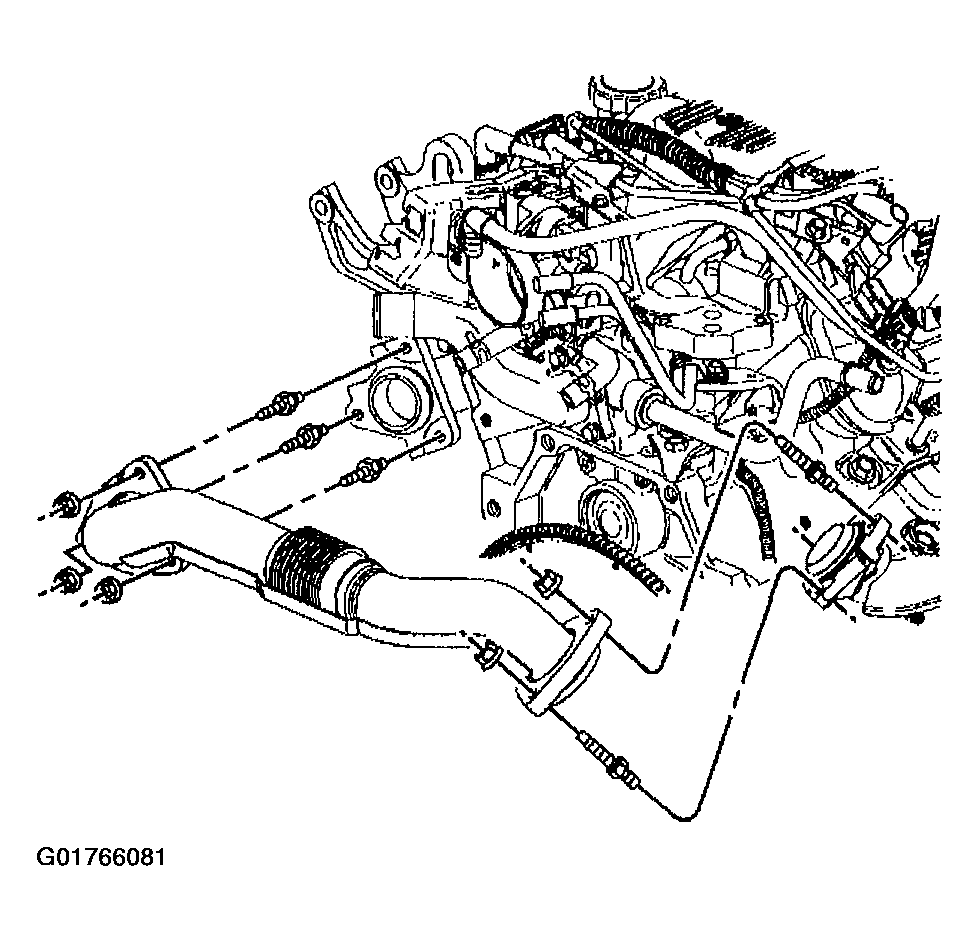

    Fig 2: Exhaust Crossover Pipe
    G01766081Courtesy of GENERAL MOTORS CORP.
