Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust crossover pipe.
  2. Install the exhaust crossover pipe bolts and the nuts.

    Tighten

    Tighten the bolts and the nuts to 25 N.m (18 lb ft).

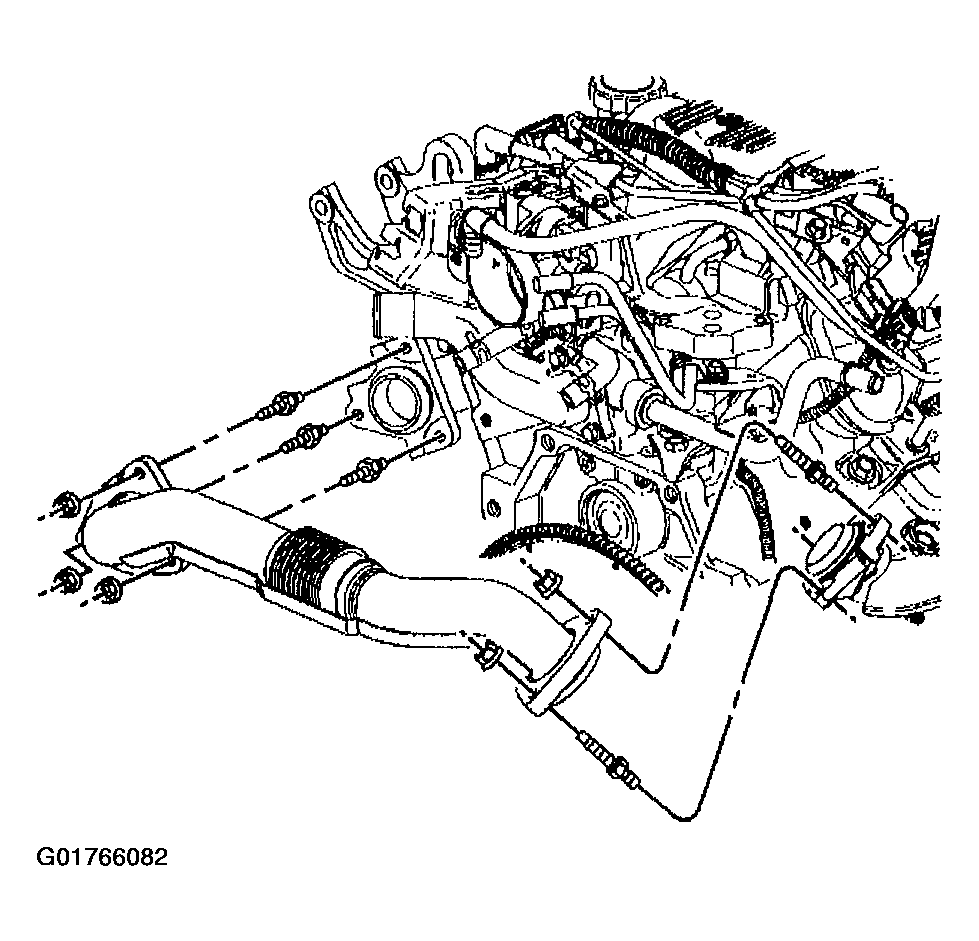

    Fig 1: Exhaust Crossover Pipe
    G01766082Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust crossover heat shield.
  4. Install the exhaust crossover heat shield bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

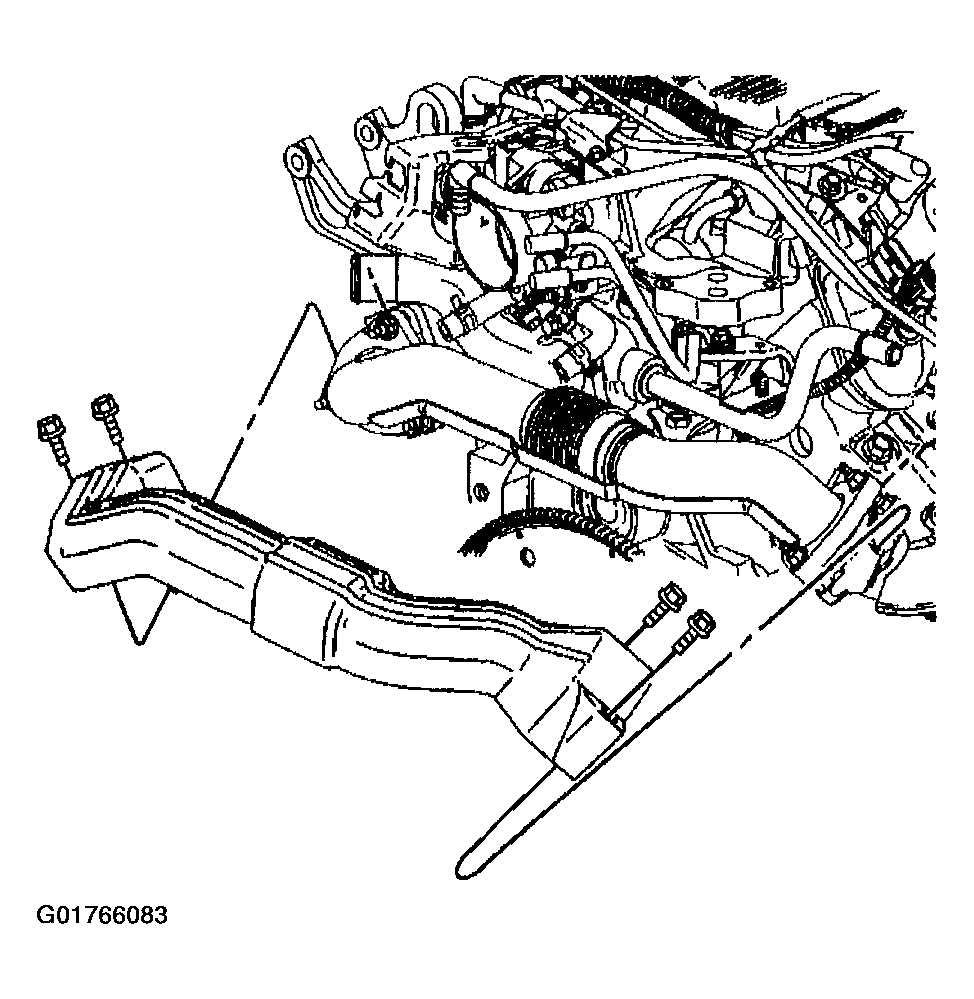

    Fig 2: Exhaust Crossover Heat Shield
    G01766083Courtesy of GENERAL MOTORS CORP.
  5. Install the air cleaner intake duct.
