Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the marks on the hose. Install the outlet hose to the water pump housing.
  2. Use the J 38185 in order to reposition and install the hose clamp at the water pump housing.

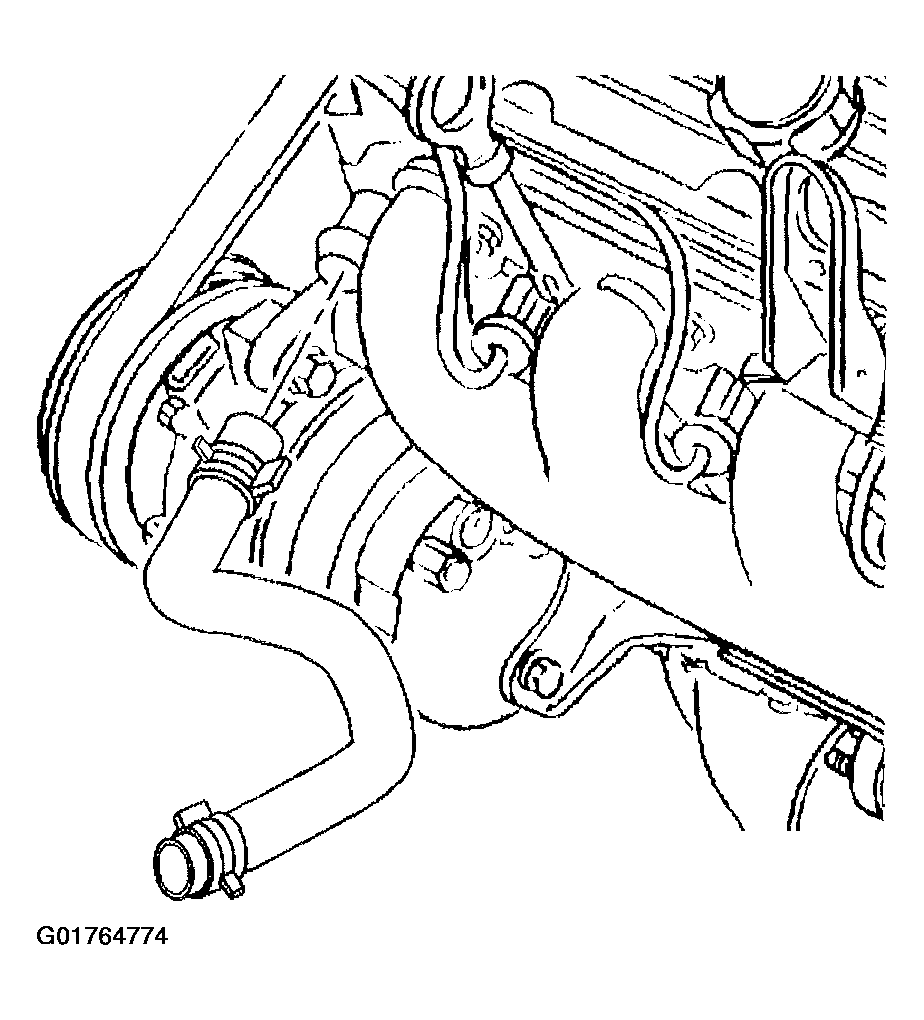

    Fig 1: Outlet Hose To The Water Pump Housing
    G01764774Courtesy of GENERAL MOTORS CORP.
  3. Install the outlet hose to the radiator.
  4. Use the J 38185 in order to reposition and install the outlet hose at the radiator.
  5. Fill the cooling system. Refer to Draining and Filling Cooling System

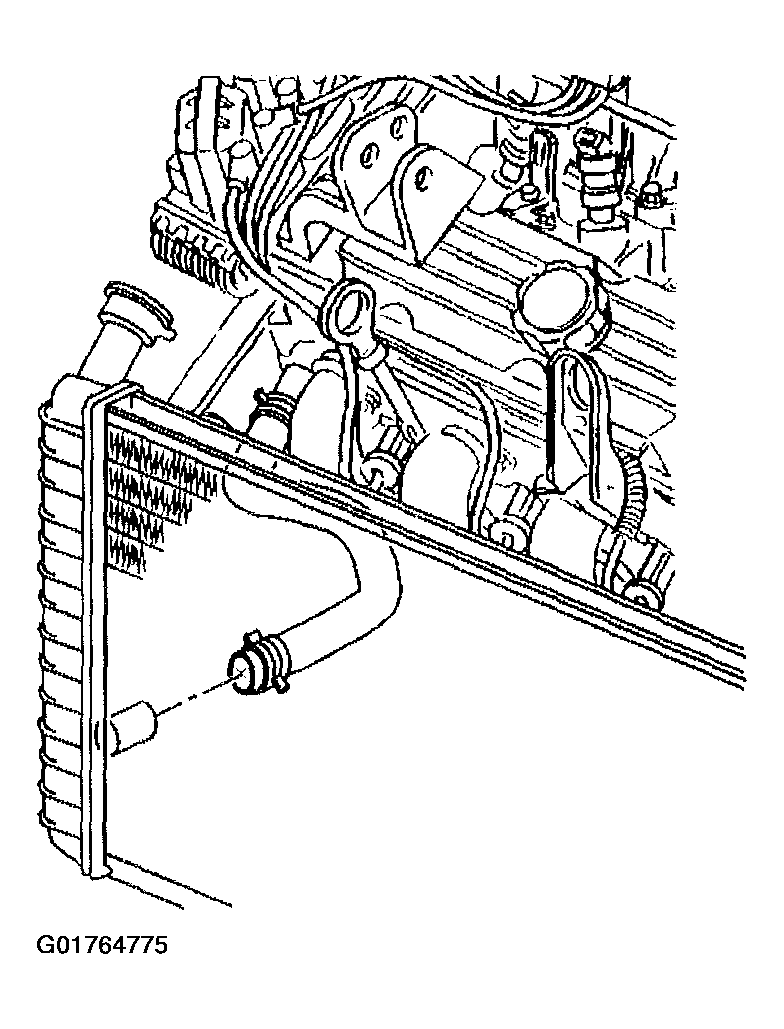

    Fig 2: Outlet Hose To The Radiator
    G01764775Courtesy of GENERAL MOTORS CORP.
