Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the marks on the hose. Install the outlet hose to the radiator.
  2. Install the outlet hose (3) to the radiator (2).
  3. Use the J 38185 in order to reposition and install the hose clamp at the radiator.
  4. Install the outlet hose (3) to the water pump housing (1).
  5. Use the J 38185 in order to reposition and install the hose clamp at the water pump housing
  6. Fill the cooling system. Refer to Draining and Filling Cooling System

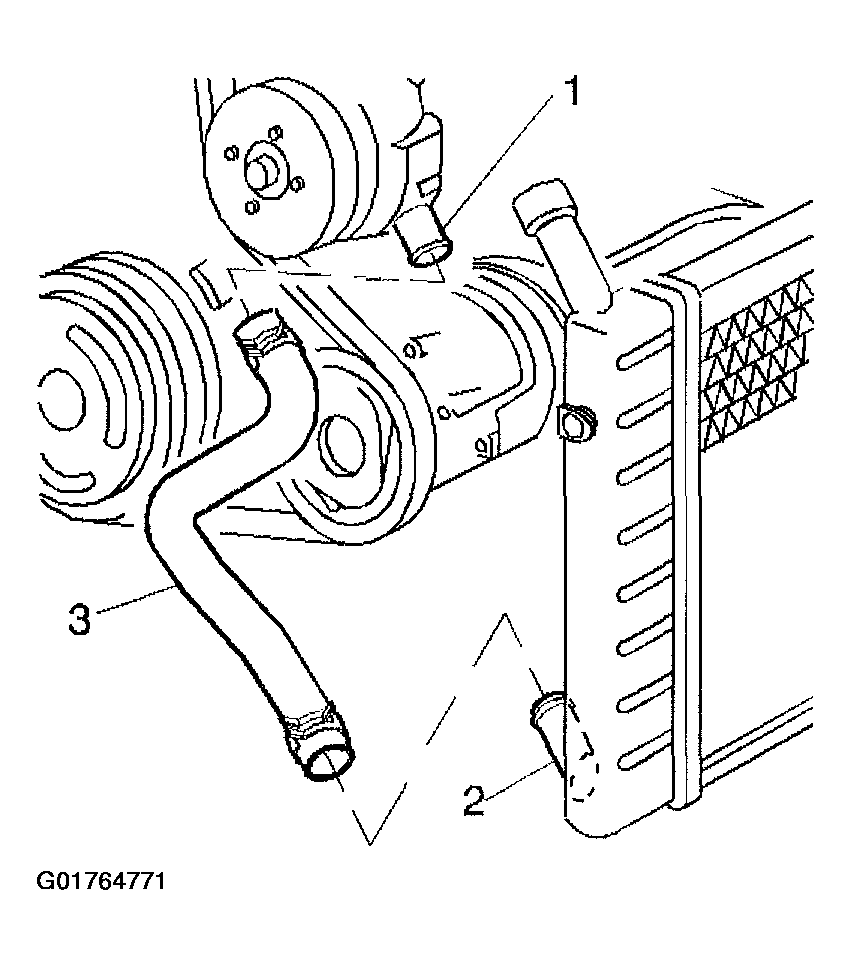

    Fig 1: Outlet Hose, Water Pump Housing And Radiator
    G01764771Courtesy of GENERAL MOTORS CORP.
