Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the cooling system. Refer to Draining and Filling Cooling System .
Remove the left diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL in BODY FRONT END .
Use the J 38185 in order to reposition the hose clamp at the radiator.
Disconnect the radiator inlet hose from the radiator.

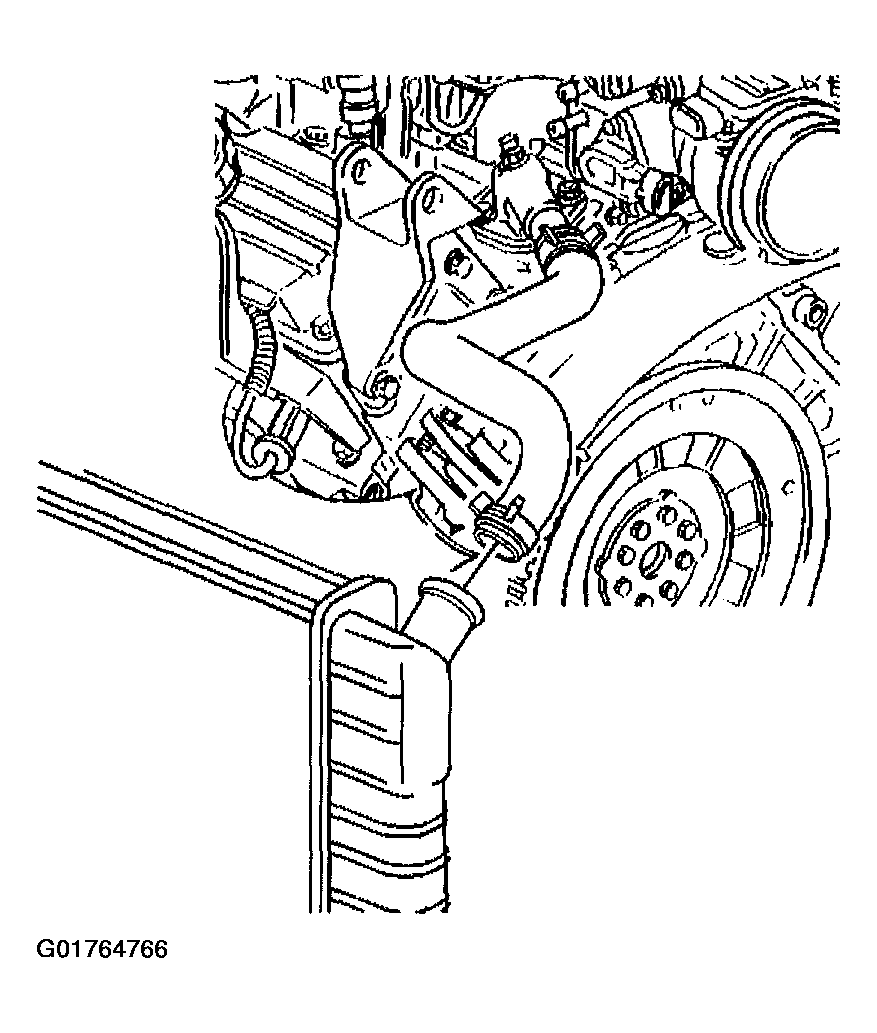

Fig 1: Radiator Inlet Hose From The Radiator
Courtesy of GENERAL MOTORS CORP.
Use the J 38185 in order to reposition the hose clamp at the thermostat housing.
Disconnect the radiator inlet hose from the thermostat housing.
Remove the radiator inlet hose.

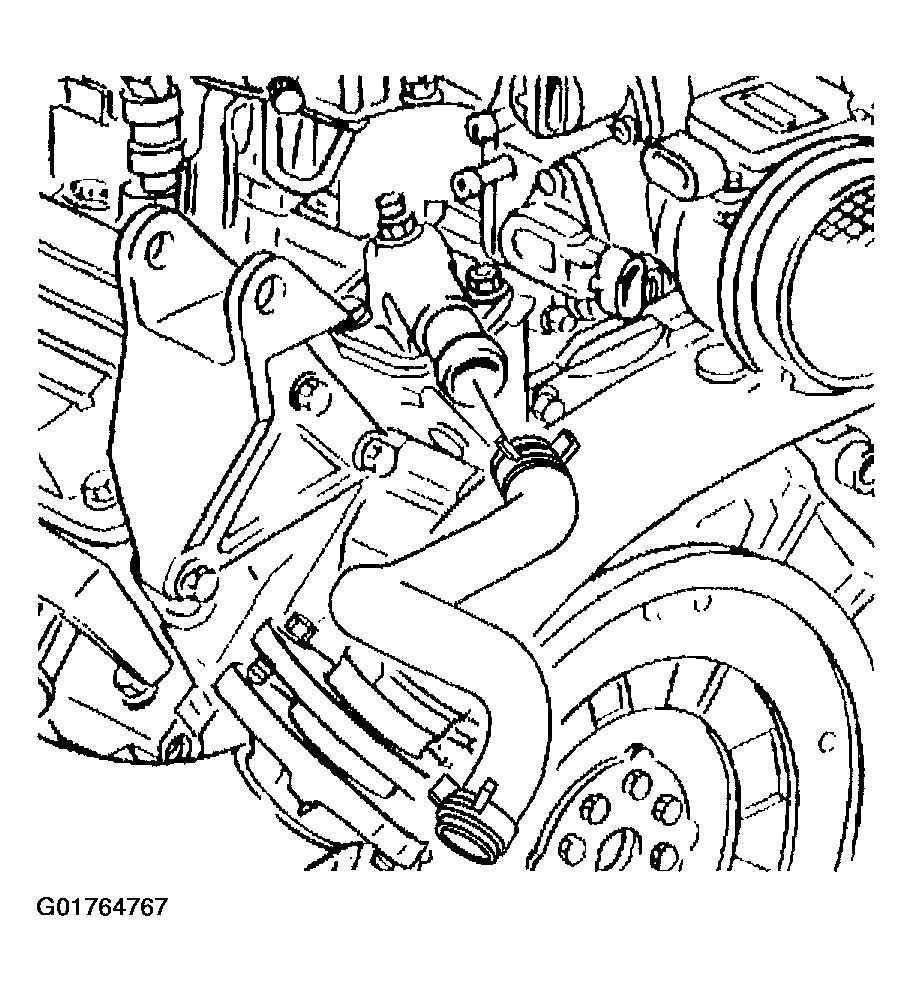

Fig 2: Radiator Inlet Hose From Thermostat Housing
Courtesy of GENERAL MOTORS CORP.
