Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the right and left side air baffle push-in retainers.
  3. Remove the right and left side air baffles.

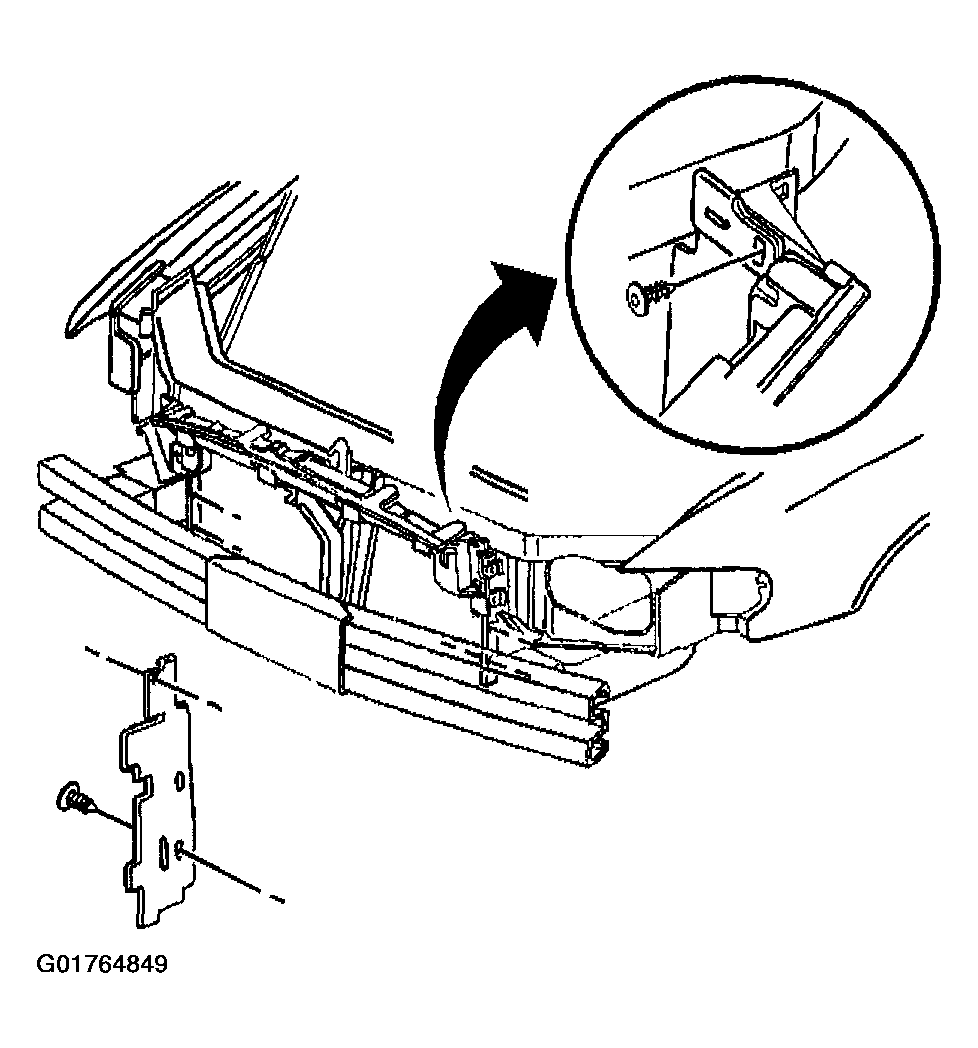

    Fig 1: Right And Left Side Air Baffles
    G01764849Courtesy of GENERAL MOTORS CORP.
