Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right and left side air baffles to the vehicle.
  2. Install the right and left side air baffle push-in retainers.
  3. Lower the vehicle.

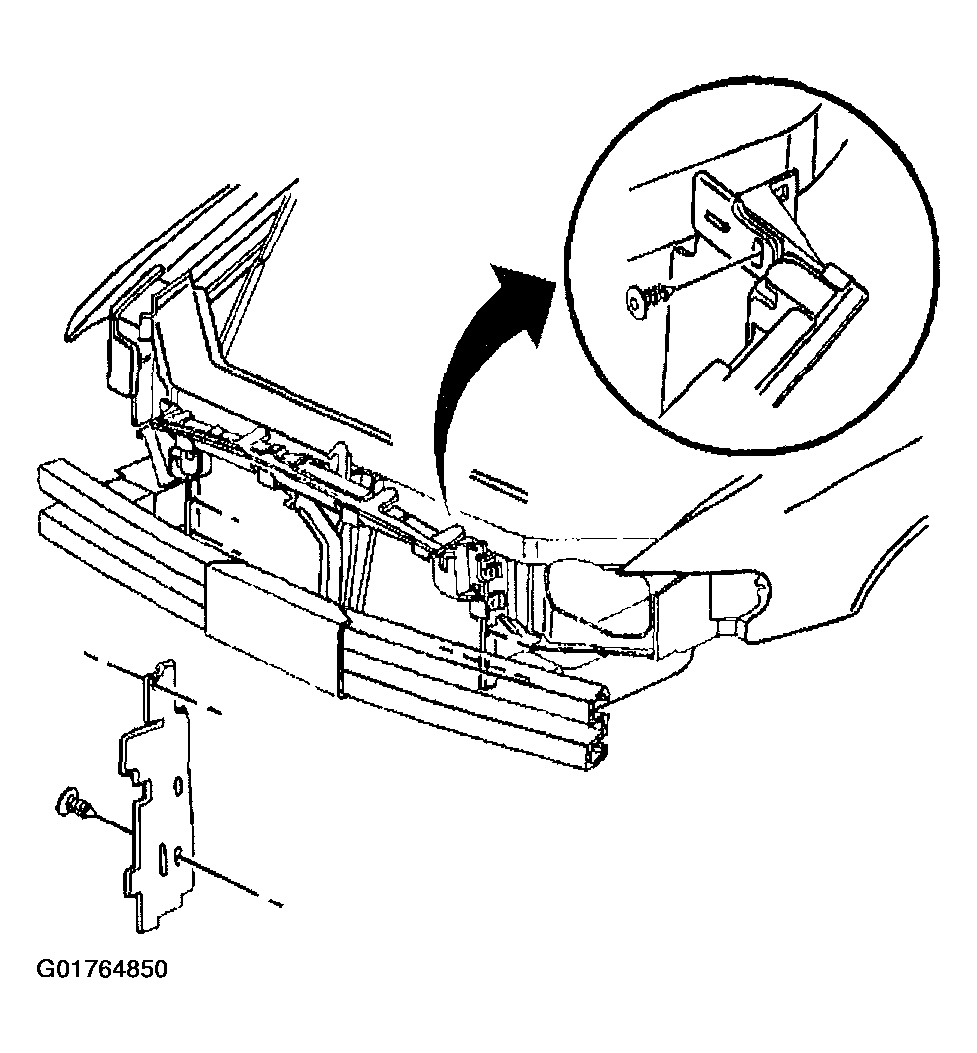

    Fig 1: Right And Left Side Air Baffles
    G01764850Courtesy of GENERAL MOTORS CORP.
