Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the radiator lower air deflector bolts.
  3. Remove the radiator lower air deflector.

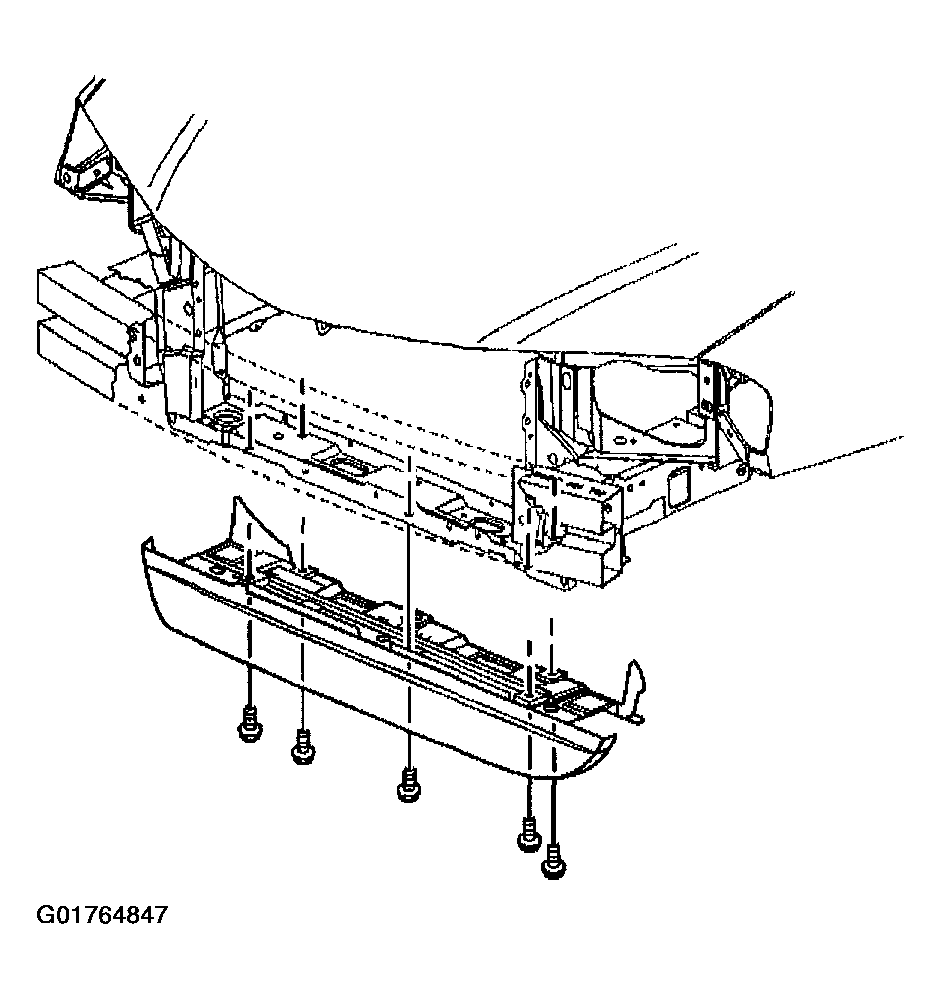

    Fig 1: Radiator Lower Air Deflector And Bolts
    G01764847Courtesy of GENERAL MOTORS CORP.
