Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator lower air deflector.
  2. Install the radiator lower air deflector bolts.

    Tighten:

    Tighten the bolts to 20 N.m (15 ft lbs)

  3. Lower the vehicle.

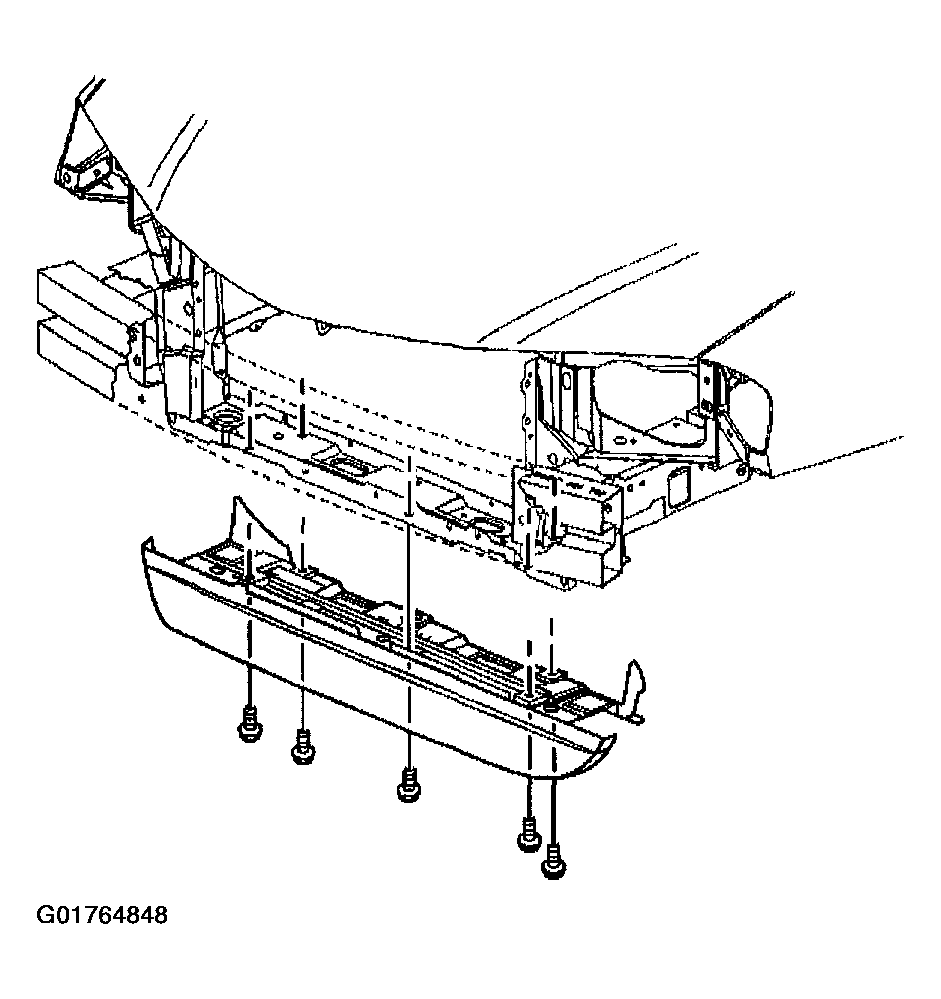

    Fig 1: Radiator Lower Air Deflector And Bolts
    G01764848Courtesy of GENERAL MOTORS CORP.
