Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cooling fans. Refer to Cooling Fan Replacement - Electric
  2. Disconnect the cooling fan wiring harness from each cooling fan motor.
  3. Remove the cooling fan electrical harness from the fan shroud.
  4. Remove the cooling fan blade nuts.
  5. Remove the cooling fan blades.

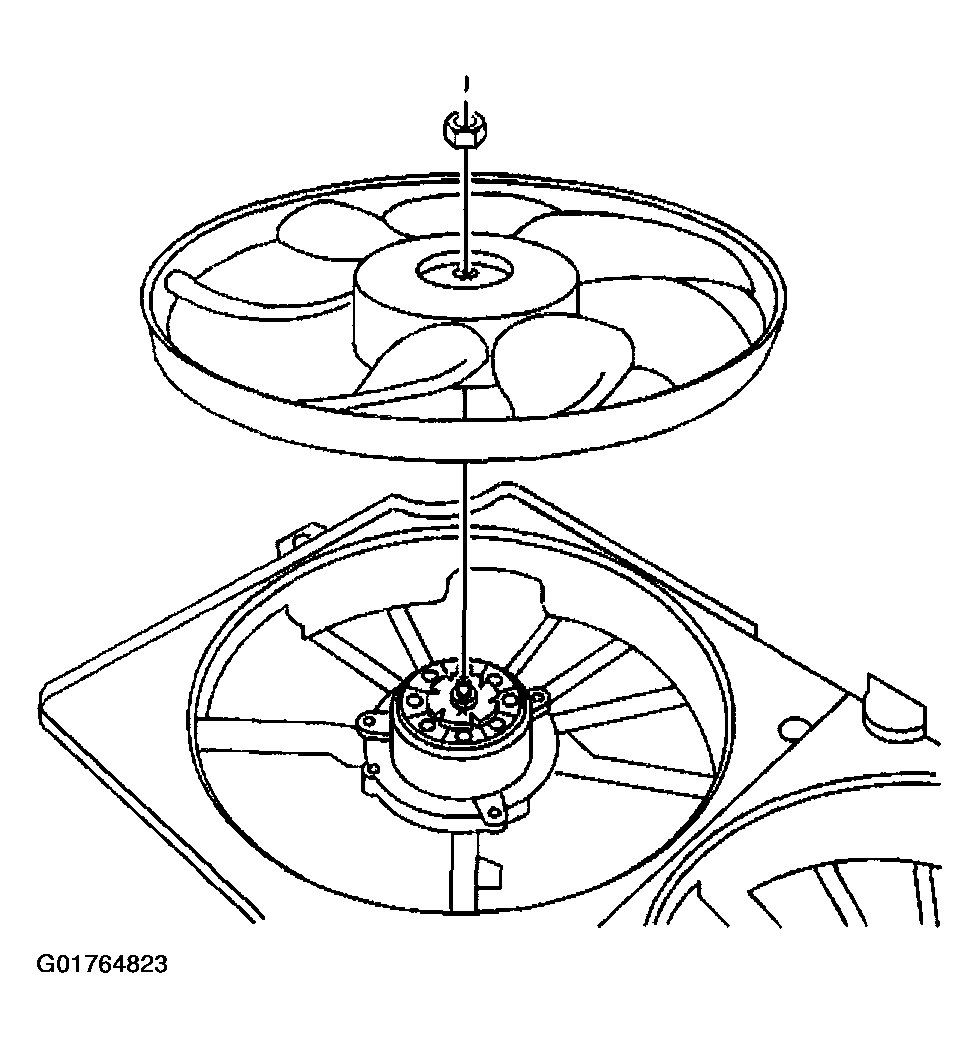

    Fig 1: Cooling Fan Blade And Nuts
    G01764823Courtesy of GENERAL MOTORS CORP.
  6. Remove the cooling fan motors bolts.
  7. Remove the cooling fan motors from the fan shroud.

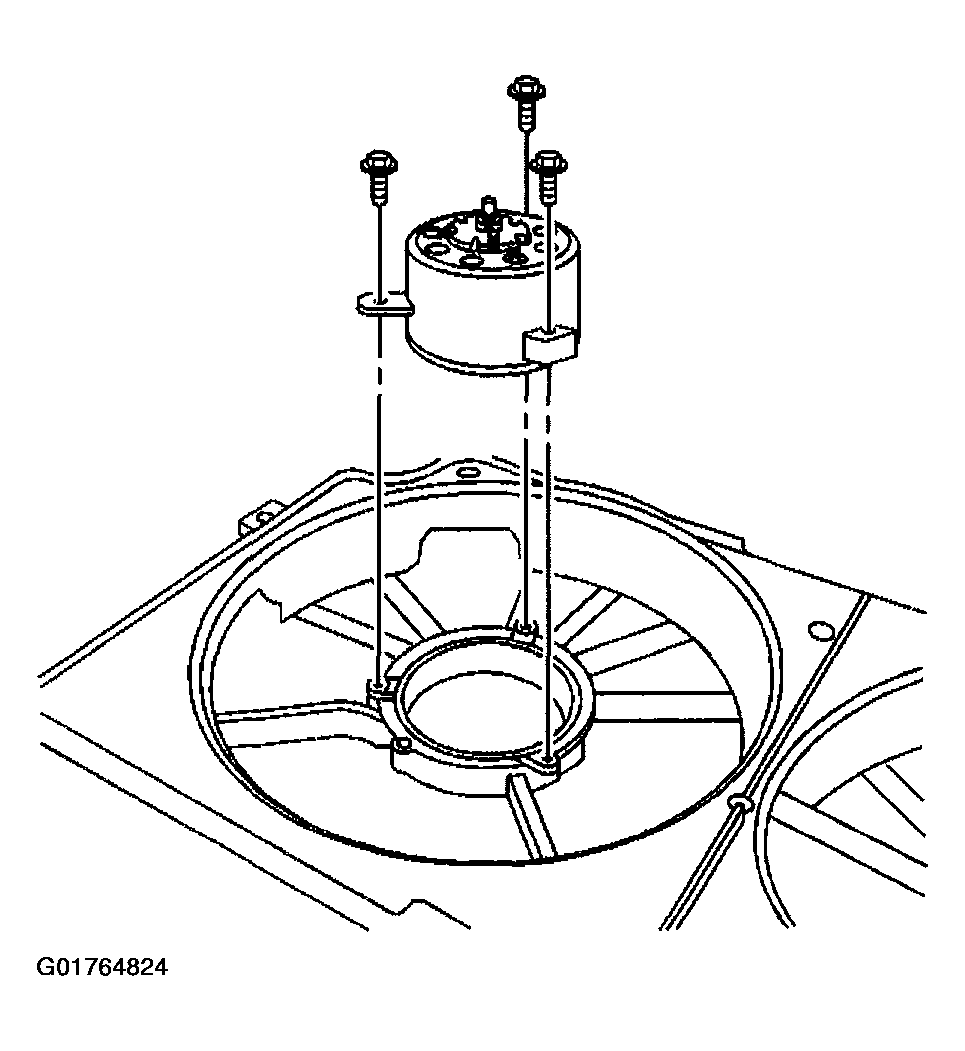

    Fig 2: Cooling Fan Motor And Bolts
    G01764824Courtesy of GENERAL MOTORS CORP.
